SE7265L

2.3-2.7 GHz WiMAX Power Amplifier

Preliminary

Applications

IEEE802.16e WiMAXTM

Mobile WiMAX datacards, modules and terminals

Features

2.3-2.7 GHz operation

25 dBm Linear output power, at 3.3V

37 dB gain

Integrated Step Attenuator and output power

detector

All RF ports matched for 50 Ω operation

Supply voltage: 2.9 V – 4.2 V

Lead free, Halogen free, ROHS compliant

package (4 mm x 4 mm x 0.9 mm), MSL 1

Ordering Information

Part No.

Package

Remark

SE7265L

16 pin QFN

Samples

SE7265L-R

16 pin QFN

Tape and Reel

SE7265L-EK1

N/A

Evaluation kit

Product Description

The SE7265L WiMAX Power Amplifier is a high

performance device offering high output power with

high linearity and exceptional efficiency. Designed for

portable or mobile applications in the 2.3-2.7 GHz

band, it supports the IEEE 802.16e wireless

standards.

.

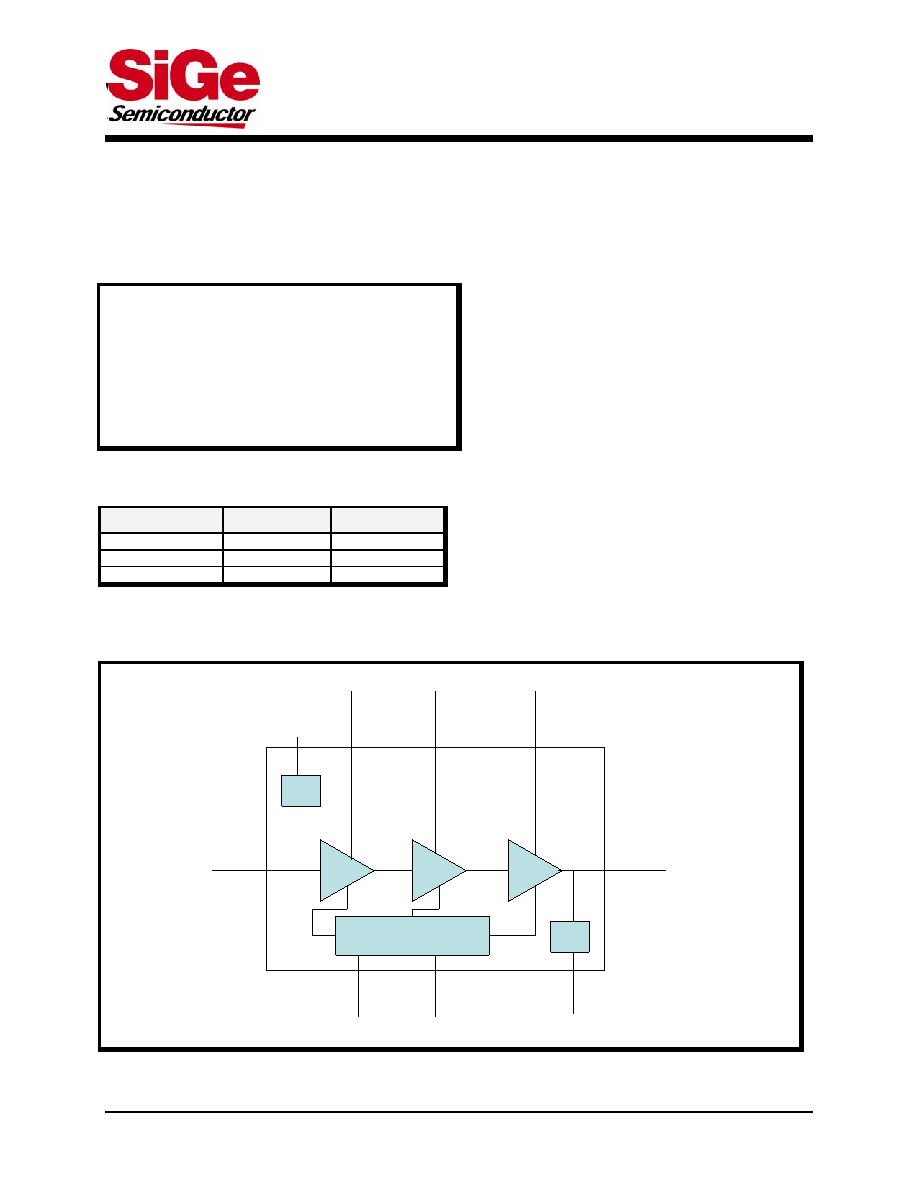

Functional Block Diagram

Bias and Control

Power

Det

RF in

VATTN

VREF

VDET

RF out

VDD1

Temp

Sensor

TEMP

VDD2

VDD3

Bias and Control

Power

Det

RF in

VATTN

VREF

VDET

RF out

VDD1

Temp

Sensor

TEMP

VDD2

VDD3

Figure 1: Functional Block Diagram

DST-00218 Rev 1.5 July-10-2009

1 of 10
