CM02B Series

http://www.ddknet.co.jp

◎

Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.

2

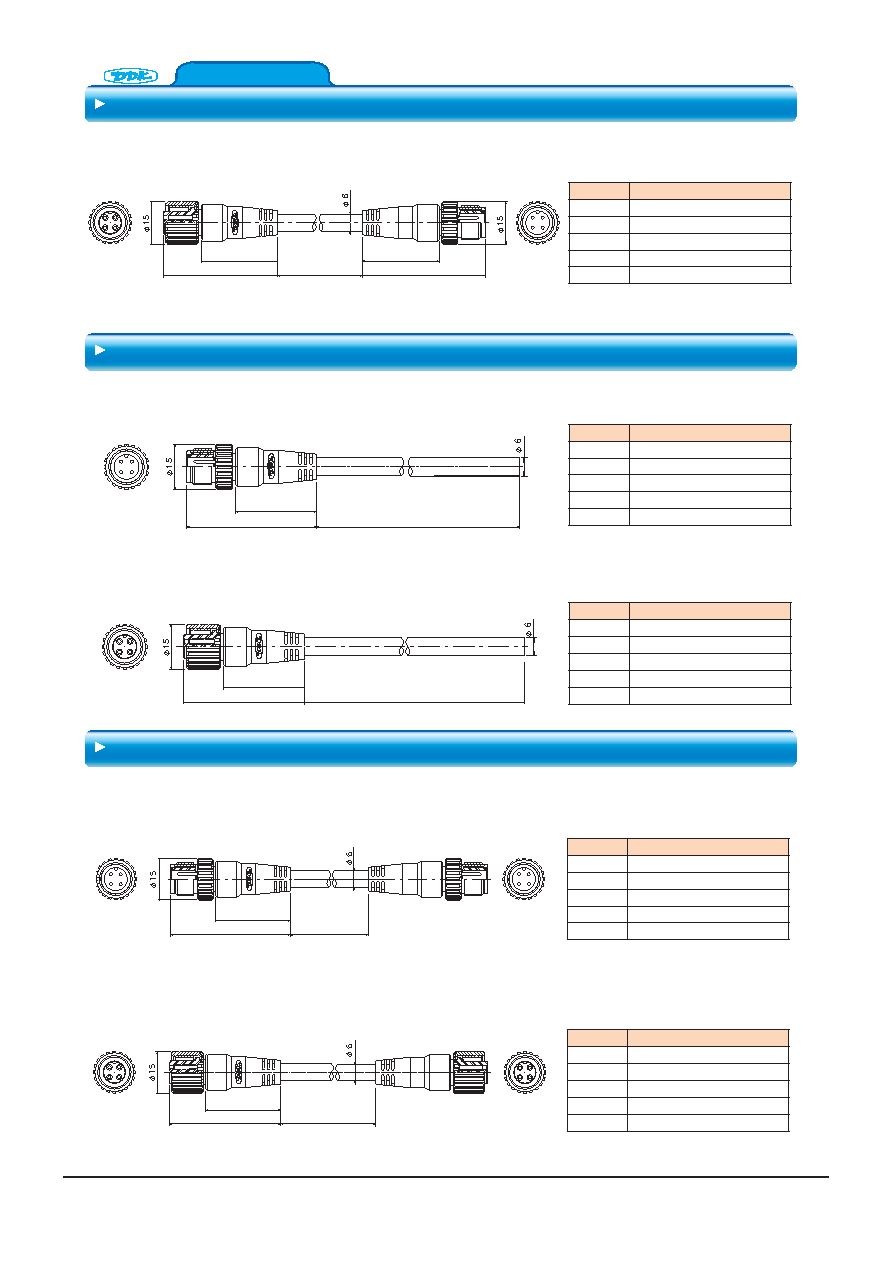

○ Double-Ended Cable Assemblies

○ Single-Ended Cable Assemblies

○ Double-Ended Cable Assemblies

L

P/N

1,000

CM02B-8DJ4P-010

2,000

CM02B-8DJ4P-020

3,000

CM02B-8DJ4P-030

5,000

CM02B-8DJ4P-050

10,000

CM02B-8DJ4P-100

L

P/N

1,000

CM02B-8DP4S-010

2,000

CM02B-8DP4S-020

3,000

CM02B-8DP4S-030

5,000

CM02B-8DP4S-050

10,000

CM02B-8DP4S-100

L

P/N

1,000

CM02BC-8DJ4P-010

2,000

CM02BC-8DJ4P-020

3,000

CM02BC-8DJ4P-030

5,000

CM02BC-8DJ4P-050

10,000

CM02BC-8DJ4P-100

L

P/N

1,000

CM02BB-8DP4S-010

2,000

CM02BB-8DP4S-020

3,000

CM02BB-8DP4S-030

5,000

CM02BB-8DP4S-050

10,000

CM02BB-8DP4S-100

１

４

３

２

26.8

40

L

１

４３

２

１

２

３４

１

２

３４

43

26.8

L

１

２

３４

43

26.8

L

１

４

３

２

26.8

40

L

１

４

３

２

26.8

40

L

43

26.8

１

２

３

４

L

P/N

1,000

CM02BA-8DP4S-010

2,000

CM02BA-8DP4S-020

3,000

CM02BA-8DP4S-030

5,000

CM02BA-8DP4S-050

10,000

CM02BA-8DP4S-100

・A plug connector with socket contacts and a jack connector with pin contacts

・Jack connector with pin contacts

・Plug connector with socket contacts

・Jack connectors with pin contacts on both ends

・Plug connectors with socket contacts on both ends
