October 19, 2005

Email: ddisales@datatronics.com

499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specification are subject to change without notice.

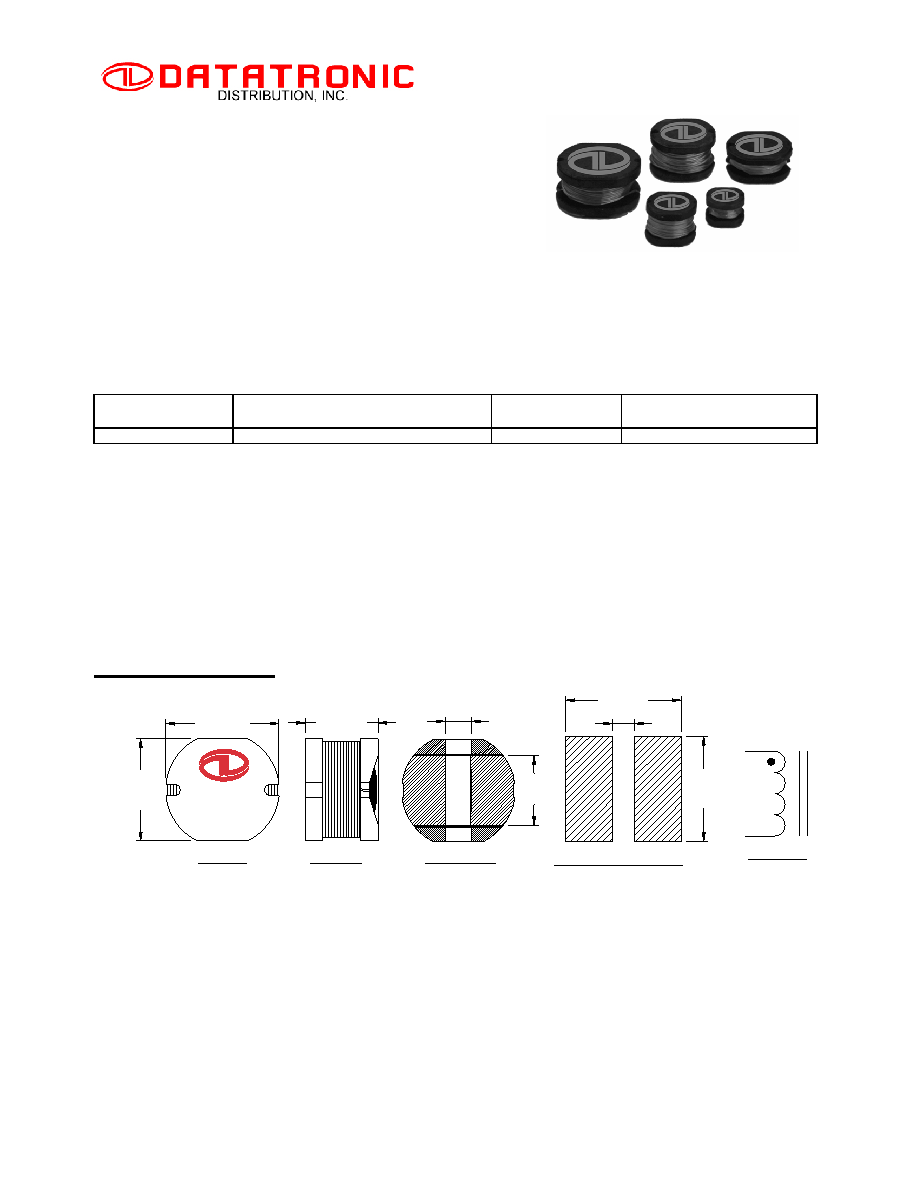

SMD INDUCTOR DR78098

Features

Low Profile Surface Mount Design

Flat Top for Pick and Place

Tape & Reel Packing Available

Materials meet UL94V-0

Operating Temp. -40

°C to +130°C (see note below)

ELECTRICAL SPECIFICATIONS AT 25ºC

PART No.

INDUCTANCE (

µH)

DCR

(

Ω) Max.

RATED CURRENT

(A) Max.

DR335-333

33

± 10%

@ 2.52MHz

0.14

1.20

Note:

1.

Full rated current is based on an ambient operating temperature of 85ºC with a 45ºC maximum temperature rise in free air.

All materials are rated at 155ºC or higher.

2.

The DR78098 will be marked DR335-333 or 333 on the part. DR335-333 will be on the packaging.

MECHANICAL OUTLINES

NOTES:

1.

ALL DIMENSIONS ARE SHOWN IN MILLIMETER “mm”[INCHES “IN”].

2.

GENERAL TOLERANCE

±0.25mm[0.010 IN.], UNLESS OTHER SPECIFIED.

7.90

[0.311]

PCB SOLDER PAD LAYOUT (REF.)

7.20

[0.283]

1.60

[0.063]

SCHEMATIC

2

1

7.00±0.3

[0.276]

7.70±0.3

[0.303]

TOP VIEW

DR335

BOTTOM VIEW

1.80

[0.071]

SIDE VIEW

4.80

[0.189]

5.00

[0.197]
