Inchange Semiconductor

Product Specification

Silicon PNP Power Transistors

2SA913 2SA913A

DESCRIPTION

·With TO-220 package

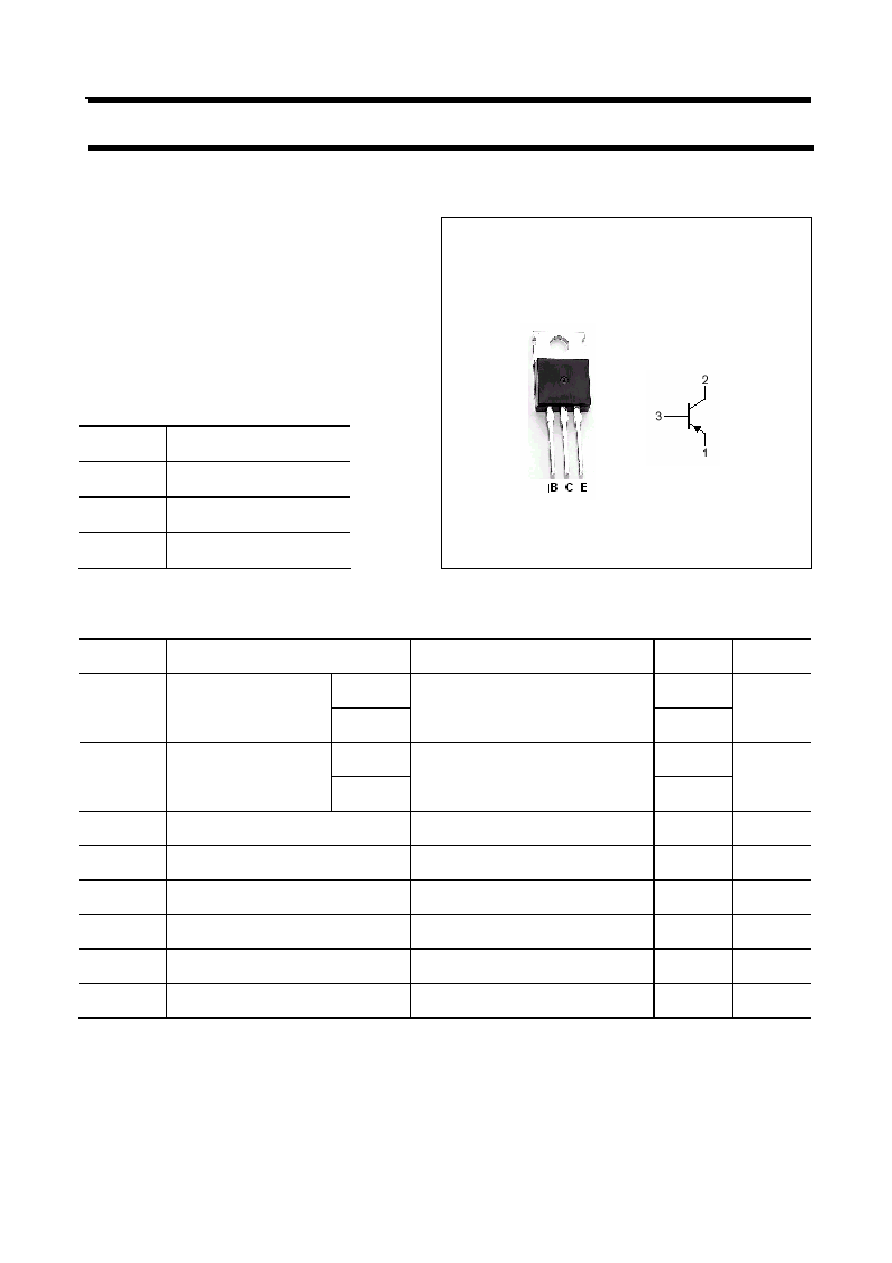

Fig.1 simplified outline (TO-220) and symbol

·Complement to type 2SC1913/1913A

·Large collector power dissipation

·High VCEO

APPLICATIONS

·Audio frequency high power driver

PINNING

DESCRIPTION

1

Emitter

2

Collector;connected to

mounting base

3

Base

Absolute maximum ratings(Ta=25℃)

SYMBOL

PARAMETER

CONDITIONS

VALUE

UNIT

2SA913

-150

VCBO

Collector-base voltage

2SA913A

Open emitter

-180

V

2SA913

-150

VCEO

Collector-emitter voltage

2SA913A

Open base

-180

V

VEBO

Emitter-base voltage

Open collector

-5

V

IC

Collector current

-1

A

ICM

Collector current-peak

-1.5

A

PC

Collector power dissipation

TC=25℃

15

W

Tj

Junction temperature

150

℃

Tstg

Storage temperature

-55~150

℃
