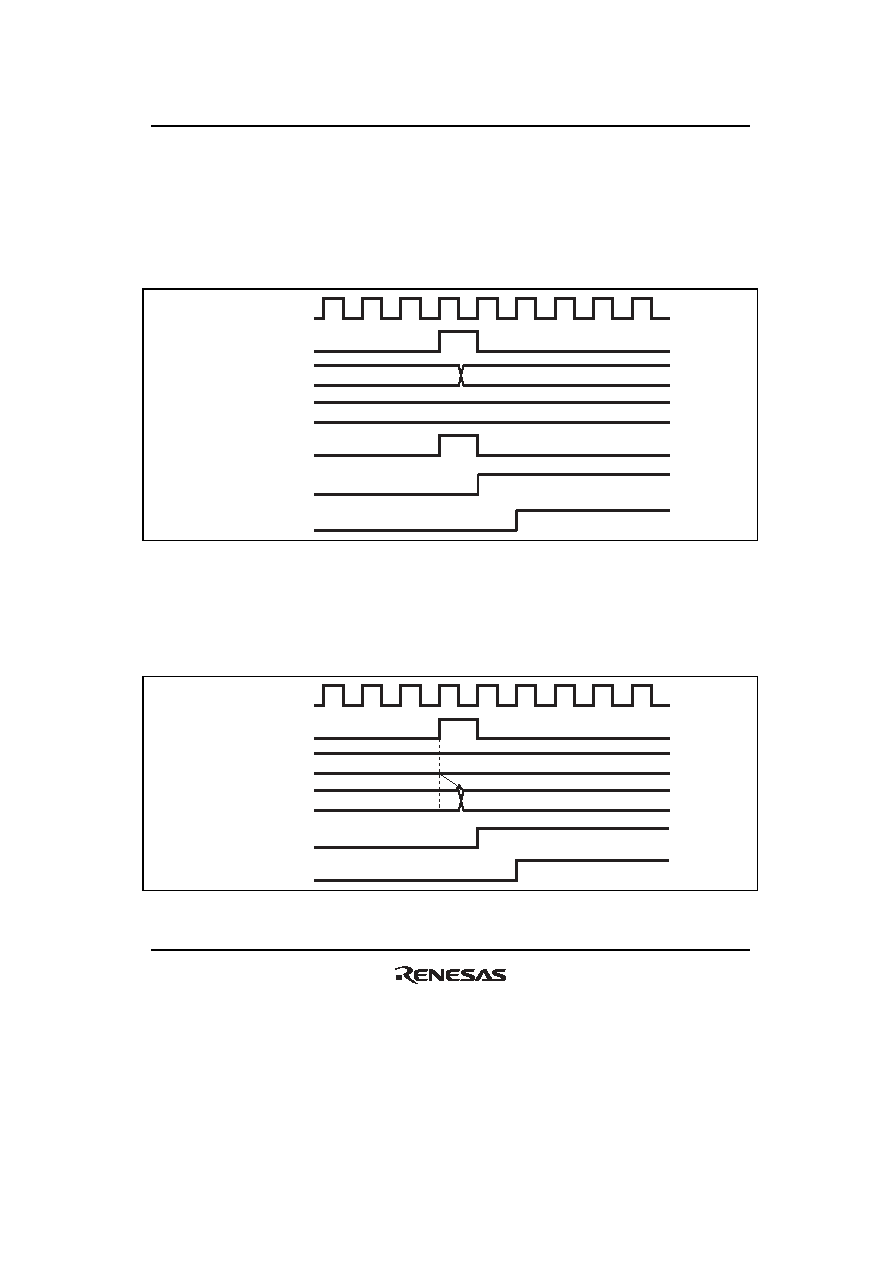

795 / 1504 page  Section 14 16-Bit Timer Pulse Unit (TPU) Rev. 2.00 Sep. 24, 2008 Page 763 of 1468 REJ09B0412-0200 14.9.2 Interrupt Signal Timing (1) TGF Flag Setting Timing in Case of Compare Match Figure 14.39 shows the timing for setting of the TGF flag in TSR by compare match occurrence, and the TGI interrupt request signal timing. TGR Compare match signal P φ TCNT input clock TCNT N + 1 N N TGF flag TGI interrupt Figure 14.39 TGI Interrupt Timing (Compare Match) (2) TGF Flag Setting Timing in Case of Input Capture Figure 14.40 shows the timing for setting of the TGF flag in TSR by input capture occurrence, and the TGI interrupt request signal timing. TGR P φ TCNT N Input capture signal TGF flag TGI interrupt N Figure 14.40 TGI Interrupt Timing (Input Capture) |
|
