Section 22 Clock Pulse Generator
Rev.1.00 Jun. 07, 2006 Page 969 of 1102
REJ09B0294-0100

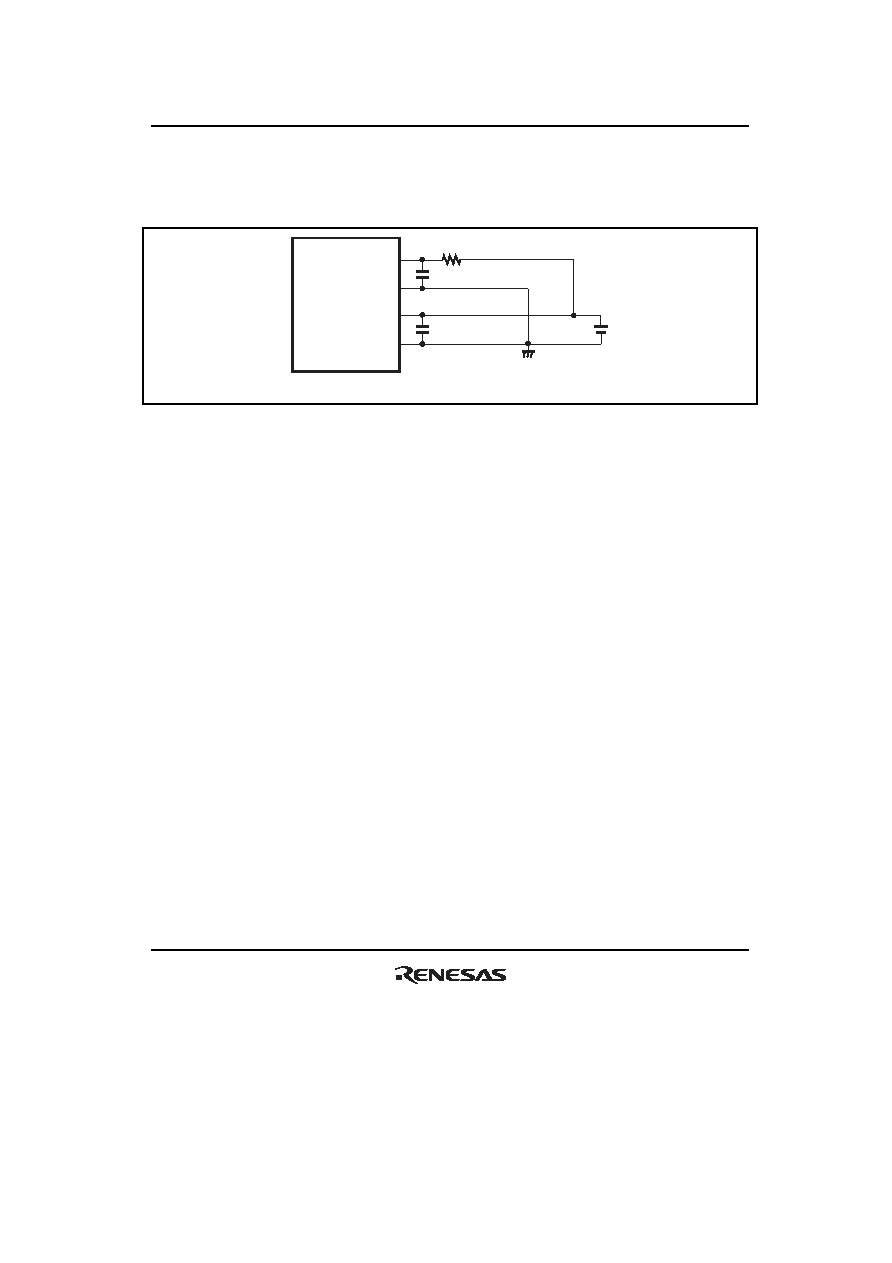

Figure 22.11 shows the external circuitry recommended for the PLL circuit. Separate PLLVcc and
PLLVss from the other Vcc and Vss lines at the board power supply source, and be sure to insert
bypass capacitors CPB and CB close to the pins.
PLLVCC
PLLVSS
VCC
VSS
Rp: 100
Ω
CPB: 0.1 µF*
CB: 0.1 µF*
Note: * CB and CPB are laminated ceramic capacitors.
Figure 22.11 Recommended External Circuitry for PLL Circuit
