Section 22 Clock Pulse Generator
Rev.1.00 Jun. 07, 2006 Page 966 of 1102
REJ09B0294-0100

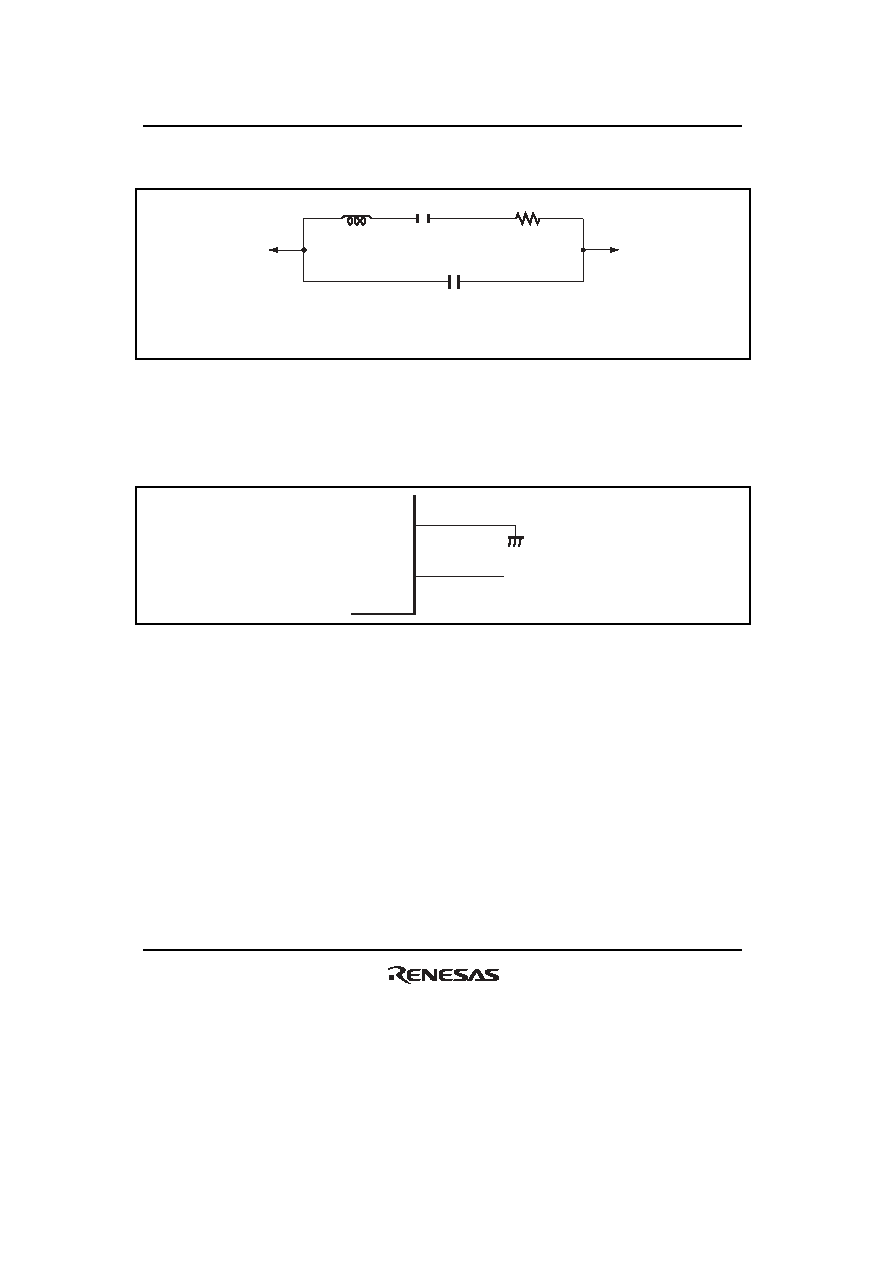

Figure 22.7 shows an equivalent circuit for the 32.768-kHz crystal resonator.
OSC1
OSC2
C
s
L
s
R
s
C
o
C
o = 1.5 pF (typ.)
R
s = 14 kΩ (typ.)
fw = 32.768 kHz
Figure 22.7 Equivalent Circuit for 32.768-kHz Crystal Resonator
22.5.2
Handling of Pins when the Subclock is Not to be Used
If the subclock is not required, connect the OSC1 pin to Vss and leave the OSC2 pin open, as
shown in figure 22.8.
OSC1
OSC2
Open
Figure 22.8 Pin Handling when Subclock is not Used
