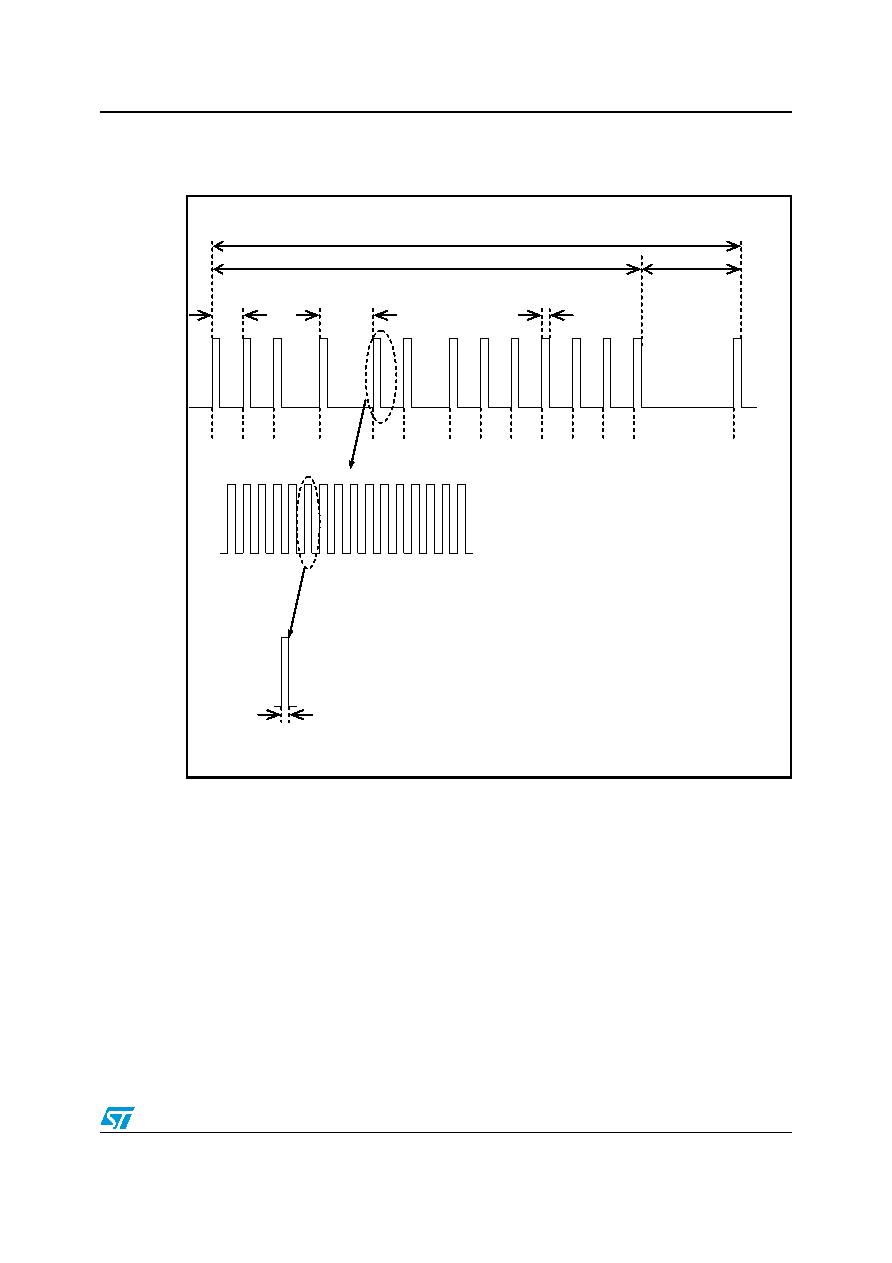

61 / 78 page  STFPC320 Remote control protocols 61/78 15.7 R2000 remote control format Figure 40. Thomson R2000 remote control protocol Note: The above waveform is on the transmitted side. The received data by the STFPC320 after the photo-diode is inverted from above. A3 A2 A1 A0 T0 D6 D5 D4 D3 D2 D1 D0 Pause 2.53 ms 5.06 ms 480 μs min. 30.36 ms max. 60.72 ms max. 49.64 ms min. 19.28 ms modulated mode (16 pulses) 30 μs 33.3 kHz logic 0 = 2.53 ms logic 1 = 5.06 ms A0 – A3 = Address bits (4-bit) T0 = Toggle bit D0 – D6 = Command bits (7-bit) MSB is sent first. A3 1 Dataword = 80 ms A3 A2 A1 A0 T0 D6 D5 D4 D3 D2 D1 D0 Pause 2.53 ms 5.06 ms 480 μs min. 30.36 ms max. 60.72 ms max. 49.64 ms min. 19.28 ms modulated mode (16 pulses) 30 μs 33.3 kHz logic 0 = 2.53 ms logic 1 = 5.06 ms A0 – A3 = Address bits (4-bit) T0 = Toggle bit D0 – D6 = Command bits (7-bit) MSB is sent first. A3 1 Dataword = 80 ms |
|
