Published Date : MAR 25, 2008

Drawing No : SDSA6556

V1

Checked : B.L.LIU

P.1/4

Part Number:

LM2CR11W

T-1 (3mm) SOLID STATE LAMP

www.SunLED.com

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

Wavelength

nm

λ P

Viewing

Angle

2

θ 1/2

min.

typ.

LM2CR11W

Red

AlInGaP

Water Clear

3300

6990

640

34

°

Absolute Maximum Ratings

M2CR

(AlInGaP)

Unit

Reverse Voltage

5

V

Forward Current

30

mA

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

150

mA

Power Dissipation

84

mW

Operating Temperature

-40 ~ +85

Storage Temperature

Tstg

-40 ~ +85

Lead Solder Temperature

[2mm Below Package Base]

260°C For 3 Seconds

°C

Lead Solder Temperature

[5mm Below Package Base]

260°C For 5 Seconds

M2CR

(AlInGaP)

Unit

Forward Voltage (Typ.)

2.2

V

Forward Voltage (Max.)

2.8

V

Reverse Current (Max.)

10

uA

Wavelength of Peak

Emission (Typ.)

λ P

640

nm

Wavelength of Dominant

Emission (Typ.)

λ D

630

nm

Spectral Line Full Width

At Half-Maximum (Typ.)

Δλ

25

nm

Capacitance (Typ.)

C

27

pF

Operating Characteristics

Features

●LOW POWER CONSUMPTION.

●POPULAR T-1 DIAMETER PACKAGE.

●GENERAL PURPOSE LEADS.

●RELIABLE AND RUGGED.

●LONG LIFE-SOLID STATE RELIABILITY.

●AVAILABLE ON TAPE AND REEL.

●RoHS COMPLIANT.

PRELIMINARY SPEC

Notes:

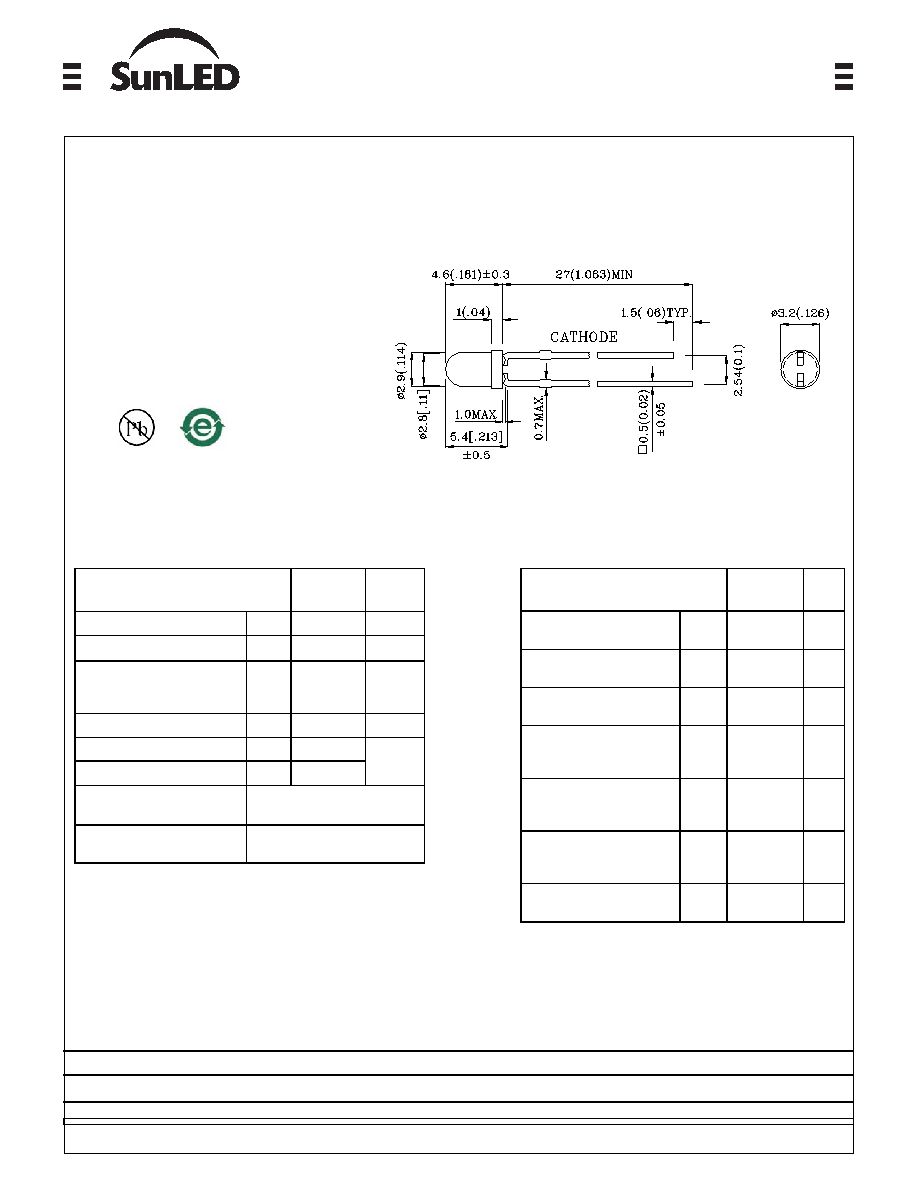

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.
