Draft.A - March 30, 2001
33
Preview - Confidential
T89C51AC2
For simplicity, the accompanying figures depict the bus cycle waveforms in idealized form and do not provide
precise timing information. For bus cycle timing parameters refer to the Section “AC Characteristics” of the
T89C51AC2 datasheet.

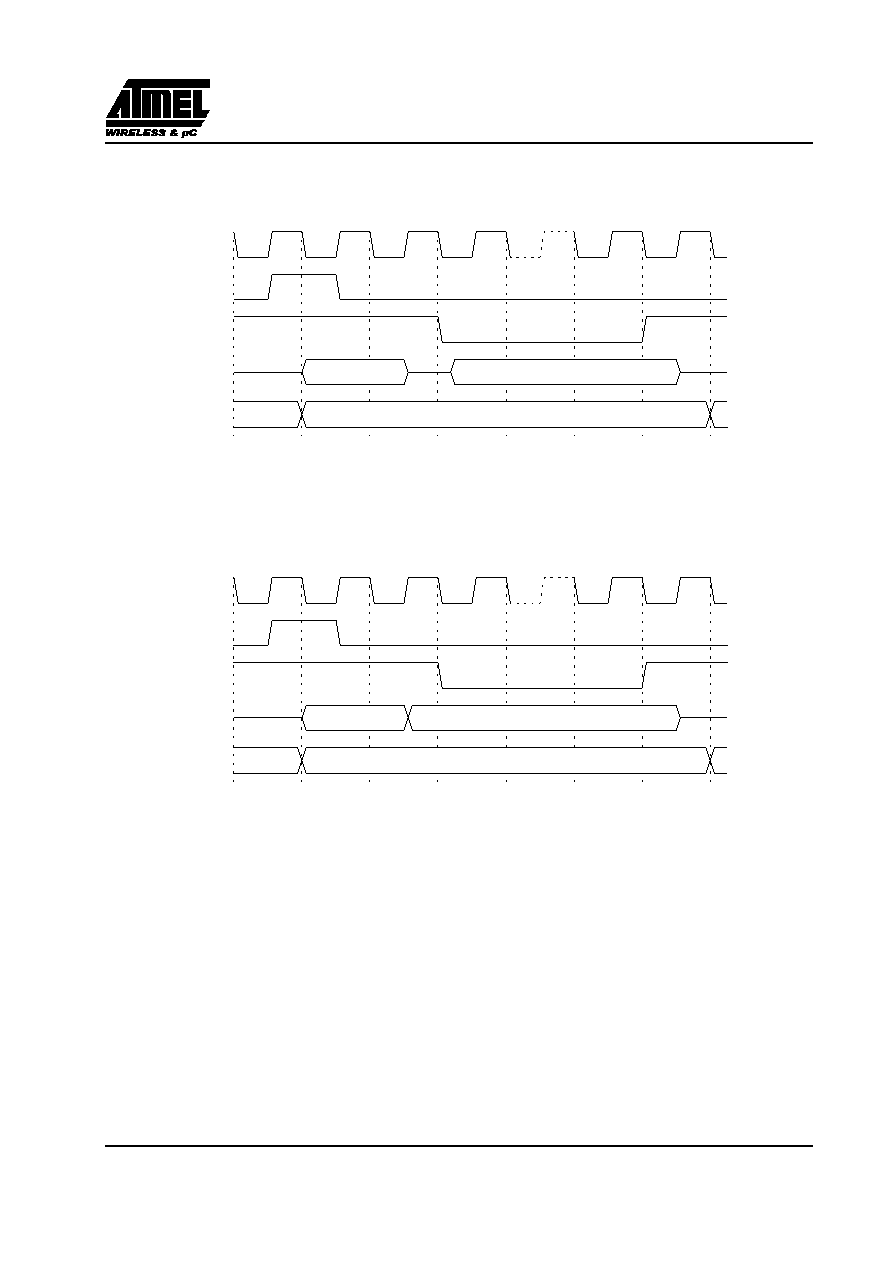

Figure 20. External Data Read Waveforms
Notes:
1. RD# signal may be stretched using M0 bit in AUXR register.
2. When executing MOVX @Ri instruction, P2 outputs SFR content.
3. When executing MOVX @DPTR instruction, if DPHDIS is set (Page Access Mode), P2 outputs SFR content instead of DPH.
Figure 21. External Data Write Waveforms
Notes:
1. WR# signal may be stretched using M0 bit in AUXR register.
2. When executing MOVX @Ri instruction, P2 outputs SFR content.
3. When executing MOVX @DPTR instruction, if DPHDIS is set (Page Access Mode), P2 outputs SFR content instead of DPH.
ALE
P0
P2
RD#1
DPL or Ri
D7:0
DPH or P22,3
P2
CPU Clock
ALE
P0
P2
WR#1
DPL or Ri
D7:0
P2
CPU Clock
DPH or P22,3
