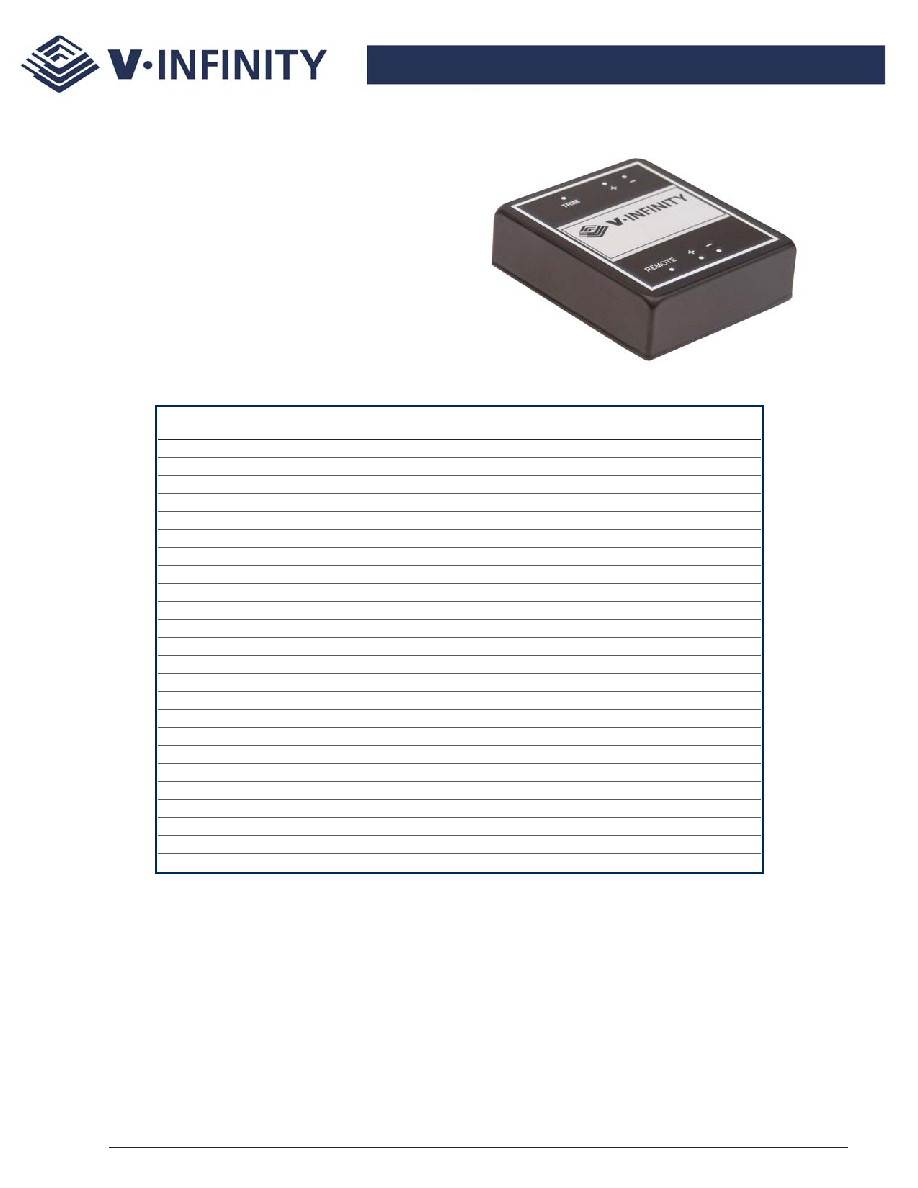

VED30 Series DC-DC Converters

1/ 3

Rev. 06-2006

V-Infinity, LLC, 20050 SW 112th Ave., Tualatin, OR 97062

www.v-infinity.com

1-866-372-1258

Features

·30W isolated output

·Efficiency to 84%

·200KHz switching frequency

·2:1 input range

·Six sided shield

·Remote ON/OFF control

Model

Input

Output

Output

Input Current

Number

Voltage

Voltage

Current

No Load Full Load

Efficiency

VED30-D12-S5

9-18VDC

5VDC

5000mA

30mA

2700mA

77%

VED30-D12-S12

9-18VDC

12VDC

2500mA

30mA

3150mA

79%

VED30-D12-S15

9-18VDC

15VDC

2000mA

30mA

3150mA

79%

VED30-D12-D12

9-18VDC

±12VDC

±1250mA

35mA

3100mA

81%

VED30-D12-D15

9-18VDC

±15VDC

±1000mA

35mA

3100mA

81%

VED30-D12-T512

9-18VDC

5/±12VDC

3000/±625mA

35mA

3200mA

78%

VED30-D12-T515

9-18VDC

5/±15VDC

3000/±500mA

35mA

3200mA

78%

VED30-D12-T5125

9-18VDC

+5/+12/-5VDC 3000/600/1000mA

35mA

2940mA

77%

VED30-D24-S5

18-36VDC

5VDC

5000mA

30mA

1350mA

77%

VED30-D24-S12

18-36VDC

12VDC

2500mA

30mA

1550mA

81%

VED30-D24-S15

18-36VDC

15VDC

2000mA

30mA

1550mA

81%

VED30-D24-D12

18-36VDC

±12VDC

±1250mA

30mA

1500mA

84%

VED30-D24-D15

18-36VDC

±15VDC

±1000mA

30mA

1500mA

84%

VED30-D24-T512

18-36VDC

5/±12VDC

3000/±625mA

30mA

1580mA

79%

VED30-D24-T515

18-36VDC

5/±15VDC

3000/±500mA

30mA

1560mA

80%

VED30-D24-T5125

18-36VDC

+5/+12/-5VDC 3000/600/1000mA

30mA

1450mA

78%

VED30-D48-S5

36-72VDC

5VDC

5000mA

15mA

670mA

78%

VED30-D48-S12

36-72VDC

12VDC

2500mA

15mA

770mA

81%

VED30-D48-S15

36-72VDC

15VDC

2000mA

15mA

770mA

81%

VED30-D48-D12

36-72VDC

±12VDC

±1250mA

20mA

750mA

84%

VED30-D48-D15

36-72VDC

±15VDC

±1000mA

20mA

750mA

84%

VED30-D48-T512

36-72VDC

5/±12VDC

3000/±625mA

20mA

790mA

79%

VED30-D48-T515

36-72VDC

5/±15VDC

3000/±500mA

20mA

780mA

80%

VED30-D48-T5125

36-72VDC

+5/+12/-5VDC 3000/600/1000mA

20mA

725mA

78%
