SMLVT3V3

4/4

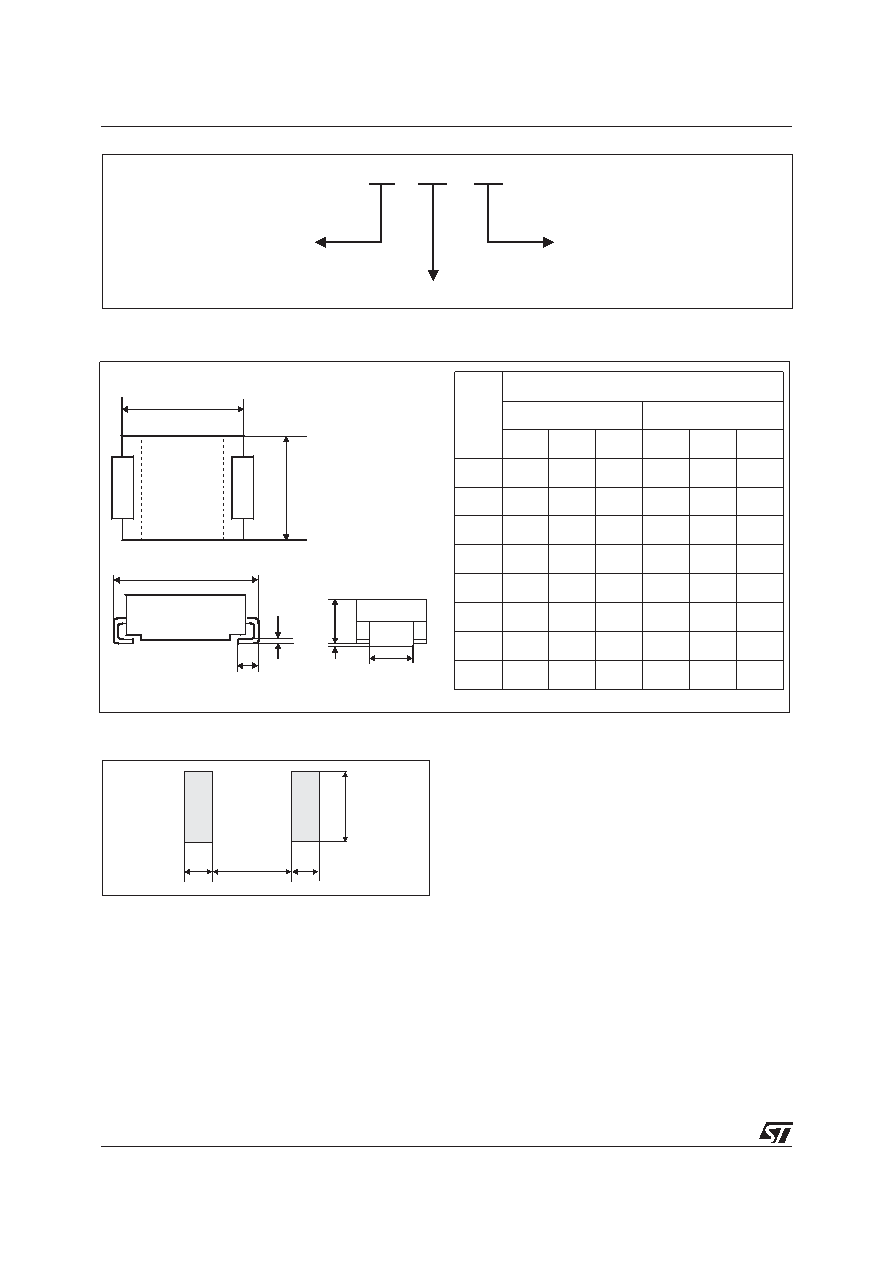

PACKAGE MECHANICAL DATA

SMB (Plastic) - Jedec DO-214AA

REF.

DIMENSIONS

Millimeters

Inches

Min.

Typ.

Max.

Min.

Typ.

Max.

A1

1.90

2.15

2.45 0.075 0.085 0.096

A2

0.05

0.15

0.20 0.002 0.006 0.008

b

1.95

2.20 0.077

0.087

c

0.15

0.41 0.006

0.016

E

5.10

5.40

5.60 0.201 0.213 0.220

E1

4.05

4.30

4.60 0.159 0.169 0.181

D

3.30

3.60

3.95 0.130 0.142 0.156

L

0.75

1.15

1.60 0.030 0.045 0.063

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of

use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by

implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to

change without notice. This publication supersedes and replaces all information previously supplied.

STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written ap-

proval of STMicroelectronics.

The ST logo is a registered trademark of STMicroelectronics

© 2001 STMicroelectronics - Printed in Italy - All rights reserved.

STMicroelectronics GROUP OF COMPANIES

Australia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Malaysia

Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A.

http://www.st.com

D

E

E1

c

A1

A2

b

L

Marking: Logo, data code, type code and cathod band

1.52

2.75

2.3

1.52

FOOTPRINT DIMENSIONS (Millimeter)

SMB Plastic.

Weight = 0.12 g

Packaging : standard packaging is in tape and reel.

SM

LVT

3V3

SURFACE MOUNT

LOW VOLTAGE TRANSIL

STAND-OFF-VOLTAGE

ORDER CODE
