Data Sheet

ADP7159

Rev. B | Page 21 of 23

PCB LAYOUT CONSIDERATIONS

Place the input capacitor as close as possible between the VIN pin

and ground. Place the output capacitor as close as possible between

the VOUT pin and ground. Place the bypass capacitors (CREG, CREF,

and CBYP) for VREG, VREF, and VBYP close to the respective pins

(VREG, REF, and BYP) and ground. The use of a 0805, a 0603,

or a 0402 size capacitor achieves the smallest possible footprint

solution on boards where area is limited. Maximize the amount

of ground metal for the exposed pad, and use as many vias as

possible on the component side to improve thermal dissipation.

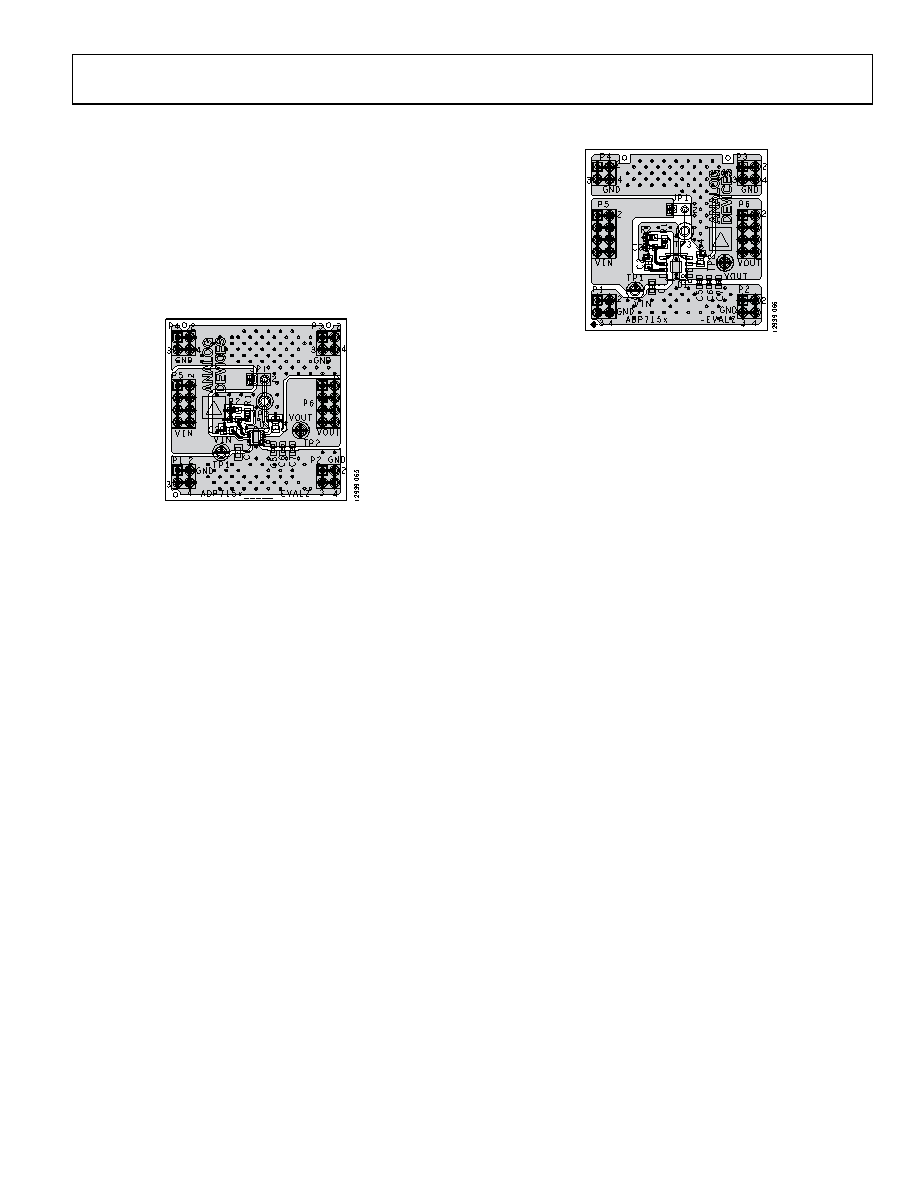

Figure 63. Sample 10-Lead LFCSP PCB Layout

Figure 64. Sample 8-Lead SOIC PCB Layout
