TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. D | 10 of 21

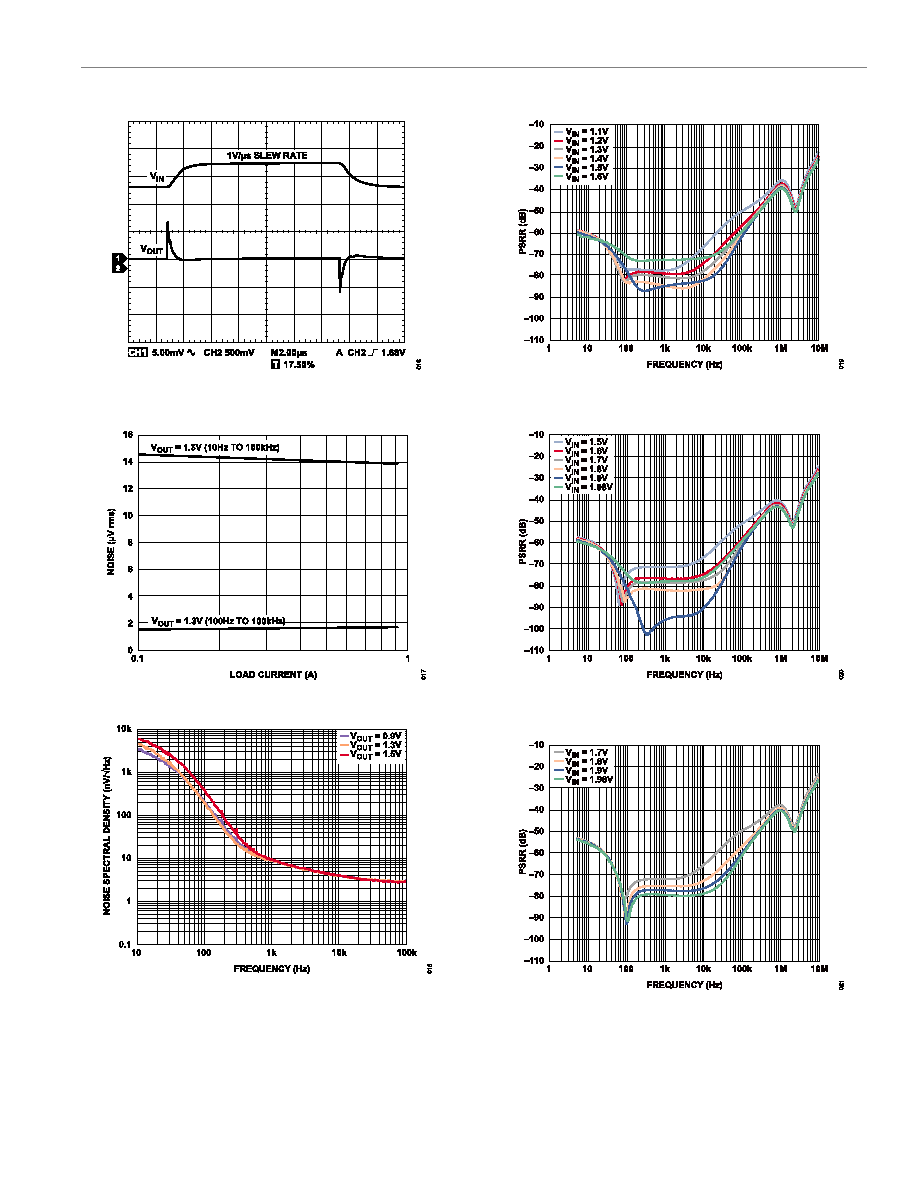

Figure 16. Line Transient Response, Load Current = 1 A, VIN = 1.5 V to 1.98 V

Step, VOUT = 1.3 V

Figure 17. Noise vs. Load Current for Various Output Voltages

Figure 18. Noise Spectral Density vs. Frequency for Various Output Voltages,

Load Current = 100 mA

Figure 19. Power Supply Rejection Ratio (PSRR) vs. Frequency for Various

VIN, VOUT = 0.9 V, Load Current = 1 A

Figure 20. Power Supply Rejection Ratio (PSRR) vs. Frequency for Various

VIN, VOUT = 1.3 V, Load Current = 1 A

Figure 21. Power Supply Rejection Ratio (PSRR) vs. Frequency for Various

VIN, VOUT = 1.5 V, Load Current = 1 A
