E3X-NH
E3X-NH
30

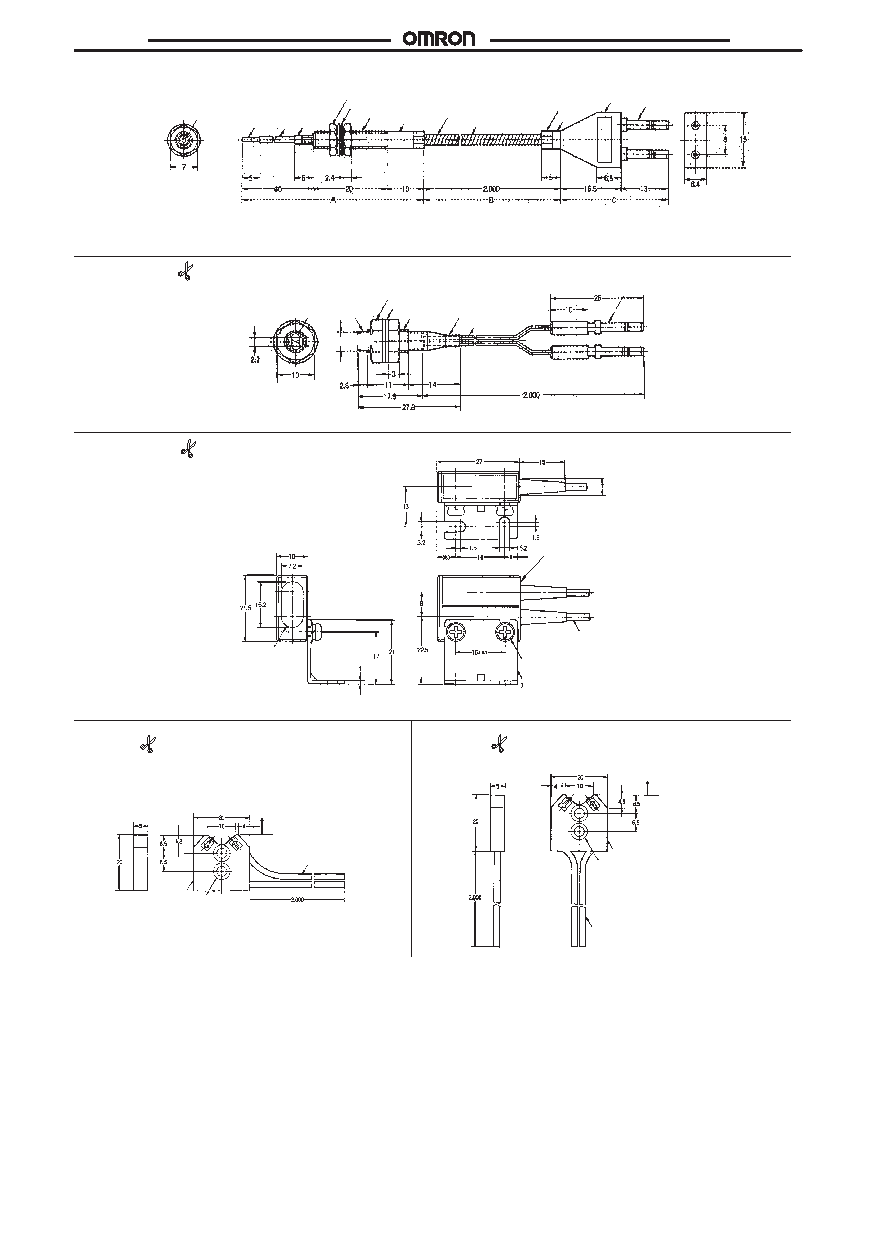

E32-R21
(One E39-R3 Re-
flector is supplied
with the Sensor.)
E32-D73
Note:
Section A resists 400
°C, section B resists 300°C, and section C (which is inserted to the Amplifier)
resists 110
°C. The operating temperature of the section to be inserted (marked with *) must be within
the operating temperature range of the Amplifier.
1.0 dia.
SUS303
Two hexagon clamping nuts
Two toothed washers
Sensing head
1.25 dia.
SUS flexible tube
Hexagon
clamping
screw
Sleeve
1.65 dia. 2.5 dia.
4 dia.
2.8 dia.
5 dia.
M4 x 0.7 (SUS303)
(see note)
Lens
(PMMA)
Silicone tube
Optical fibers,
two, 1 dia.
Two fiber attachments (E39-F9)
Sensing
head
(ABS)
Two hexagon clamping nuts
Two washers
M6 x 0.75
5 dia.
E32-R16
(One E39-R1
Reflector is
supplied with
the Sensor.)
Lens (PMMA)
Mounting bracket (attachment)
Two, M3 screws (attachment)
Optical fiber, two, 2.2 dia.
Standard length: 2 m
Sensing head (ABS)
E32-L25
E32-L25A
Note:
The fiber for the emitter is
identified by a white line.
Optical fiber, two, 2.2 dia.
Two, 3.2 dia.,
6 dia. spot facing
Two, 3.2 dia.,
6 dia. spot facing
Optical fiber,
two, 2.2 dia.
Sensing head (heat resistive ABS)
Sensing head
(heat resistive
ABS)
Sensing distance
Sensing distance
