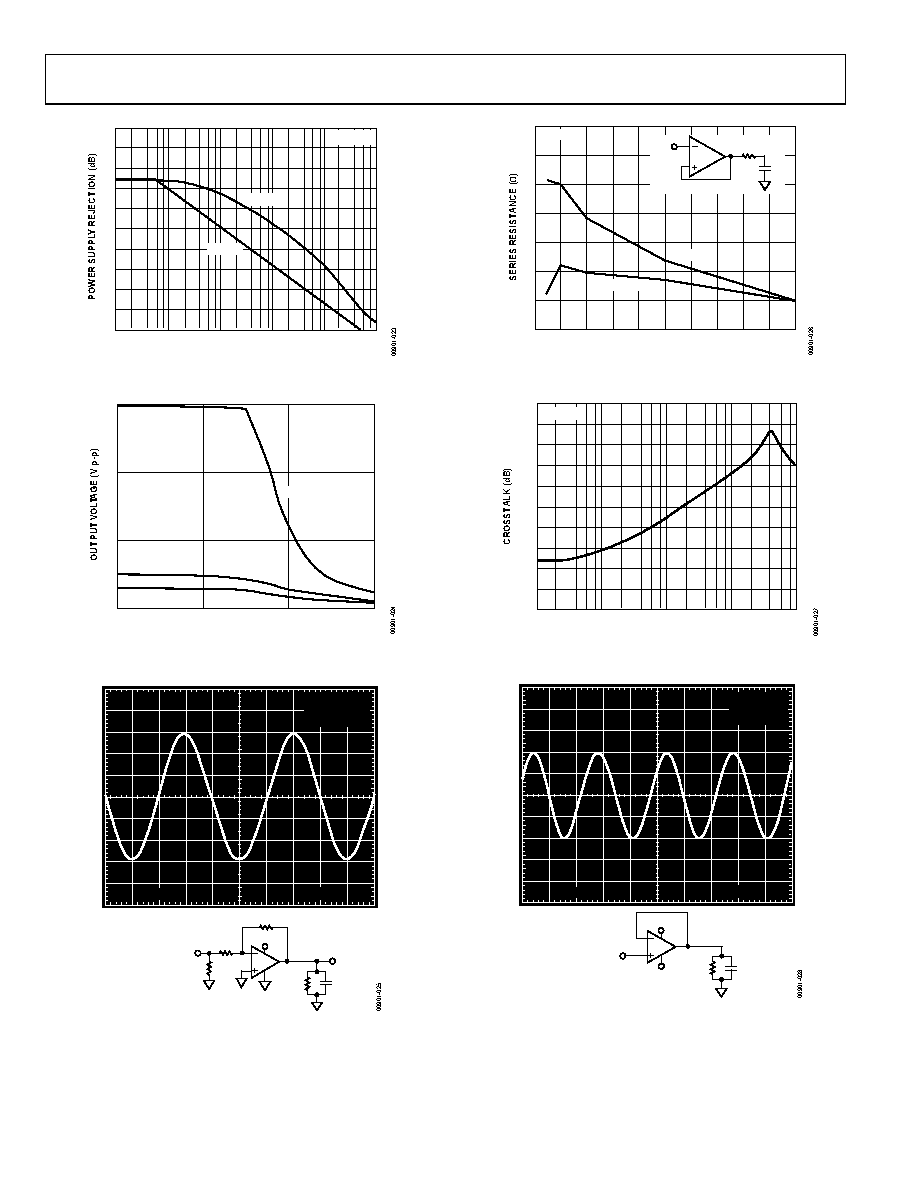

AD823
Rev. B | Page 10 of 20
FREQUENCY (Hz)
0
30
20
10
100
40
50
60
70
80
90
100
1k
10k
100k
1M
10M
+PSRR
–PSRR
+VS = +5V
Figure 23. Power Supply Rejection vs. Frequency
FREQUENCY (Hz)
0
10k
10
30
100k
1M
10M
20
RL = 2kΩ
G = +1
VS = ±15V
+VS = +5V
+VS = +3V
Figure 24. Large Signal Frequency Response
100kΩ
3V
VOUT
50pF
100kΩ
50Ω
100kΩ
VIN = 2.9V p-p
500mV
10µs
VIN = 2.9V p-p
+VS = +3V
G = –1
Figure 25. Output Swing, +VS = +3 V, G = −1
RS
CL
VIN
CAPACITOR (pF × 1000)
0
0
12
9
6
3
21
ФM = 20°
15
18
12
3
45
6
7
8
9
10
ФM = 45°
+VS = +5V
Figure 26. Series Resistance vs. Capacitive Load
FREQUENCY (Hz)
–130
1k
–110
–120
–30
–40
10k
100k
1M
+VS = +5V
–100
–90
–80
–70
–60
–50
10M
Figure 27. Crosstalk vs. Frequency
20kHz, 20V p-p
–15V
+15V
50pF
604Ω
5V
20µs
VIN = 20V p-p
VS = ±15V
G = +1
Figure 28. Output Swing, VS = ±15 V, G = +1
