FT201X USB I2C SLAVE IC Datasheet

Version 1.4

Document No.: FT_000627 Clearance No.: FTDI# 264

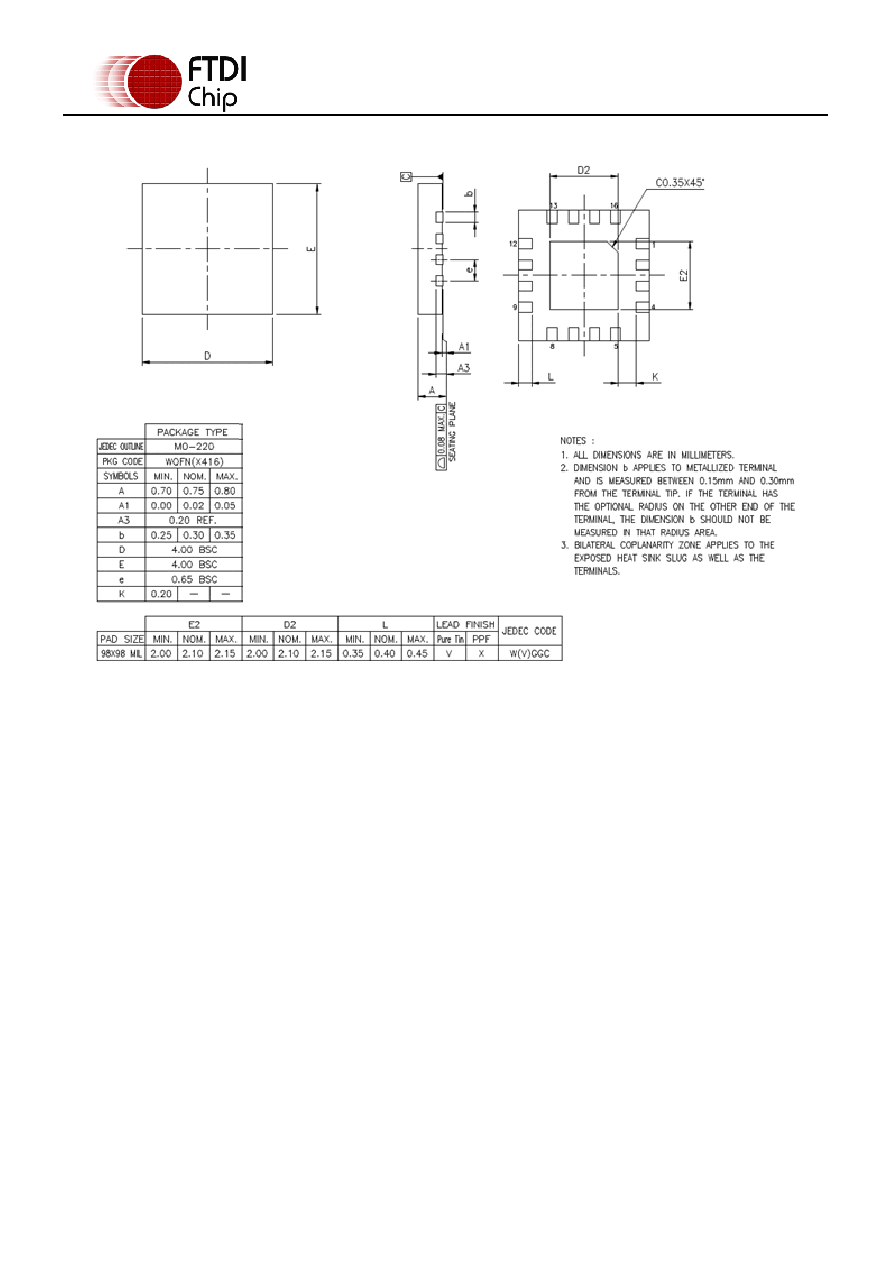

11.3 QFN-16 Package Mechanical Dimensions

Figure 11.3 QFN-16 Package Dimensions

The FT201XQ is supplied in a RoHS compliant leadless QFN-16 package. The package is lead (Pb) free,

and uses a ‘green’ compound. The package is fully compliant with European Union directive 2002/95/EC.

This package is nominally 4.00mm x 4.00mm. The solder pads are on a 0.65mm pitch. The above

mechanical drawing shows the QFN-16 package. All dimensions in table are in millimetres.

The centre pad on the base of the FT201XQ is internally connected to GND. Do not place signal tracks on

the PCB top layer under this area. Connect to GND.
