4 / 4 page

■SF10-M1JN

■SF10-M2JN

■SF10-M1KT□

■SF10-M2KT□

※For No Buzzer Model,

do not require wiring.

■Flash Pattern List

※Half : The front of the product light up.

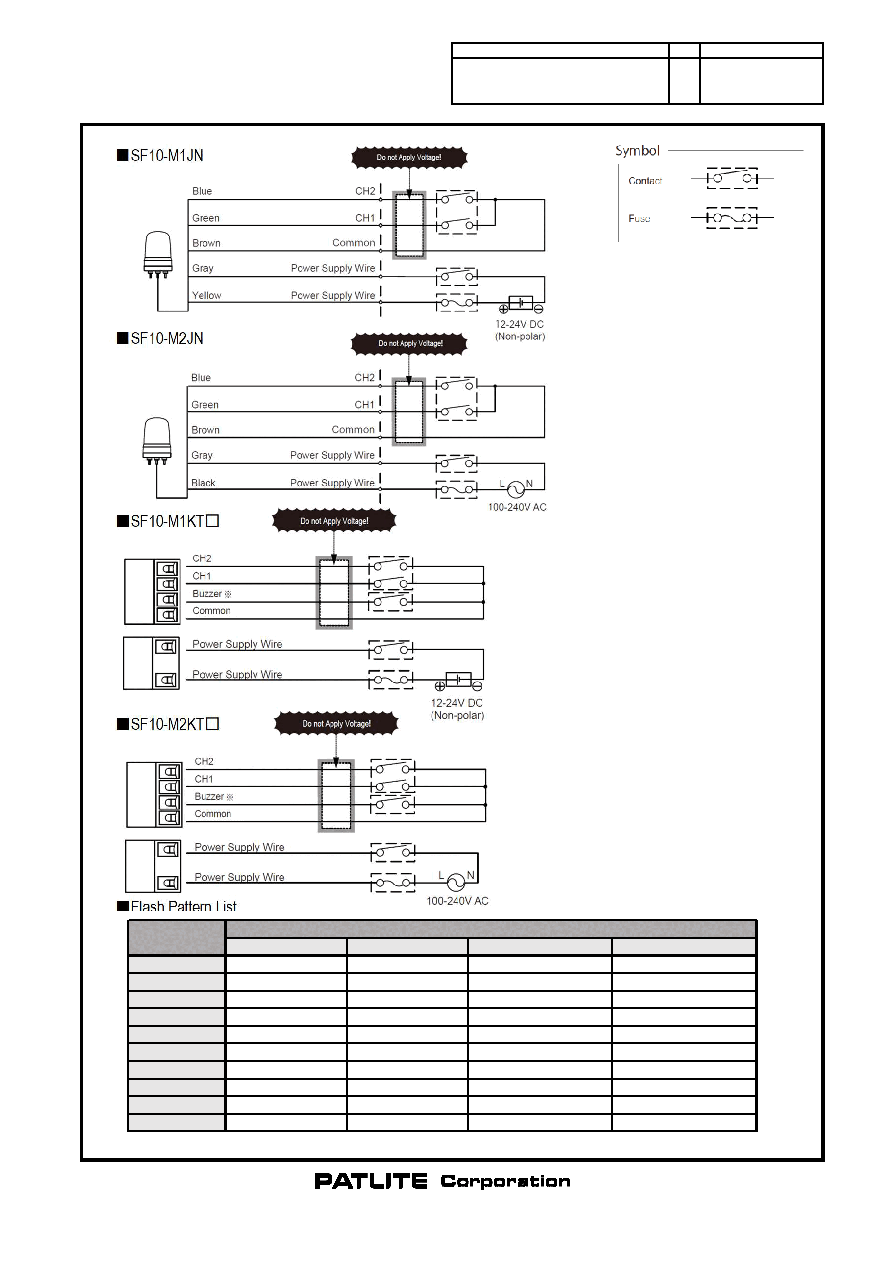

[5.Wiring Diagram]

Drawing No.

Rev.

Page

CH1 OFF/CH2 OFF

CH1 ON/CH2 OFF

CH1 OFF/CH2 ON

CH1 ON/CH2 ON

Group 0

Turn off

Rotation(120R.P.M.)

Triple Flash

Dim. Rotation(120R.P.M.)

Group 1

Turn off

Rotation(180R.P.M.)

Triple Flash

Dim. Rotation(180R.P.M.)

Group 2

Turn off

Triple Flash

Pulse

Dim. Triple Flash

Group 3

Turn off

Rotation(60R.P.M.)

Rotation(120R.P.M.)

Rotation(180R.P.M.)

Group 4

Turn off

Single Flash

Double Flash

Triple Flash

Group 5

Triple Flash

Dim. Triple Flash

Half Triple Flash

Dim. Half Triple Flash

Group 6

Pulse

Dim. Pulse

Half Pulse

Dim. Half Pulse

Group 7

Rotation(60R.P.M.)

Dim. Rotation(60R.P.M.)

Half Rotation(60R.P.M.)

Dim. Half Rotation(60R.P.M.)

Group 8

Rotation(120R.P.M.)

Dim. Rotation(120R.P.M.)

Half Rotation(120R.P.M.)

Dim. Half Rotation(120R.P.M.)

Group 9

Rotation(180R.P.M.)

Dim. Rotation(180R.P.M.)

Half Rotation(180R.P.M.)

Dim. Half Rotation(180R.P.M.)

Wiring

【CH1/CH2】

Rotary SW

4 / 4

SF10-M1JN-W18
