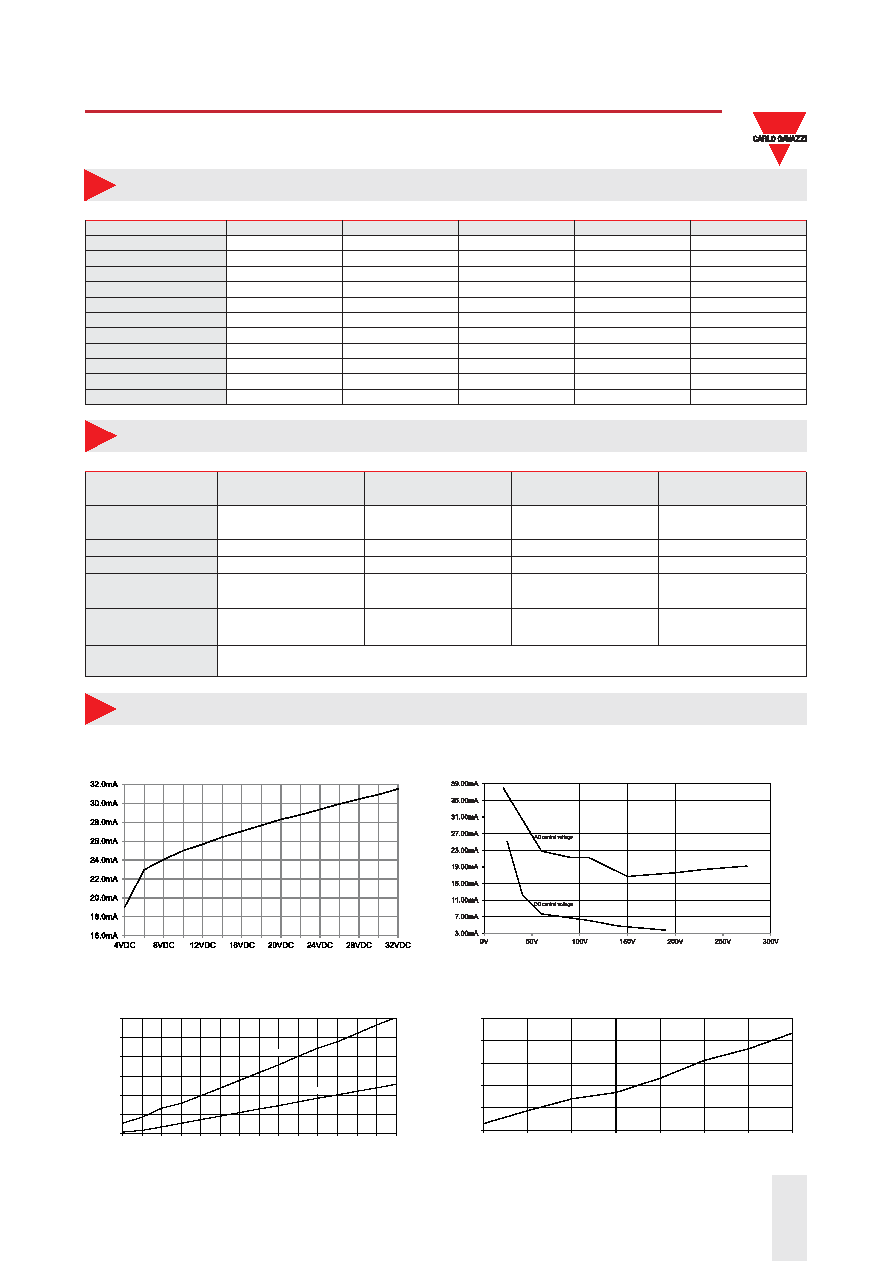

RGC3A60..65 datasheet(9/41 Pages) CARLOGAVAZZI

9 / 41 page

Carlo Gavazzi Ltd.

RGC2, RGC3

RGC2, RGC3 DS ENG

05/10/20

RG..D..

RG..A..

RG..D..D..

RG..D..A..

RG..A..A..

Control voltage

range, UC (A1, A2)

5 - 32 VDC

20-275 VAC,

24 (-10%) -190 VDC

5 - 32 VDC

20-275 VAC

Pick-up voltage

4.8 VDC

20 VAC/DC

4.8 VDC

20 VAC

Drop-out voltage

1.0 VDC

5 VAC/DC

1.0 VDC

5 VAC

Maximum reverse

voltage

32 VDC

Maximum response

time

0.5 cycle + 500 μs @

24 VDC

2 cycles @

230 VAC/110 VDC

1 cycle + 500 μs @

24 VDC

5 cycles @

230 VAC

Input current @

40°C

See diagrams below

Inputs

115 VAC

230 VAC

400 VAC

480 VAC

600 VAC

RGC2..10

½ HP / 0.37 kW

1 HP / 1.1 kW

2 HP / 1.5 kW

3 HP / 2.2 kW

3 HP / 3 kW

RGC2..25

1½ HP / 1.1 kW

3 HP / 3.0 kW

5 HP / 5.5 kW

7½ HP / 5.5 kW

10 HP / 9.0 kW

RGC2..40

3 HP / 1.5 kW

5 HP / 4.0 kW

10 HP / 7.5 kW

10 HP / 9.0 kW

15 HP / 11.0 kW

RGC2..75

5 HP / 3.0 kW

10 HP / 7.5 kW

15 HP / 11.0 kW

20 HP / 15.0 kW 25 HP / 22.0 kW

RGC3..10

½ HP / 0.37 kW

1 HP / 1.1 kW

2 HP / 1.5 kW

3 HP / 2.2 kW

3 HP / 3 kW

RGC3..20

1 HP / 0.75 kW

3 HP / 2.2 kW

5 HP / 4.0 kW

7½ HP / 5.5 kW

10 HP / 7.5 kW

RGC3..25

2 HP / 1.1 kW

3 HP / 2.2 kW

7½ HP / 4.0 kW

10 HP / 5.5 kW

10 HP / 7.5 kW

RGC3..30

2 HP / 1.5 kW

5 HP / 3.0 kW

10 HP / 5.5 kW

10 HP / 7.5 kW

15 HP / 11.0 kW

RGC3..40

2 HP / 1.5 kW

5 HP / 4.0 kW

10 HP / 7.5 kW

10 HP / 9.0 kW

15 HP / 11.0 kW

RGC3..48

3 HP / 3.0 kW

10 HP / 5.5 kW

15 HP / 11.0 kW

20 HP / 15.0 kW 25 HP / 20.0 kW

RGC3..65

3 HP / 3.0 kW

10 HP / 5.5 kW

15 HP / 11.0 kW

20 HP / 15.0 kW 25 HP / 20.0 kW

Motor Ratings: HP (UL508) / kW (EN/IEC 60947-4-2) @ 40°C

Input current vs input voltage

RG..D

RG..A

0.50mA

2.50mA

4.50mA

6.50mA

8.50mA

10.50mA

12.50mA

10V

12V

14V

16V

18V

20V

22V

24V

26V

28V

30V

32V

Input current vs Input voltage

RG..D..D.., RG..D..A..

0.00mA

1.00mA

2.00mA

3.00mA

4.00mA

5.00mA

20V

60V

90V

110V

150V

200V

230V

275V

Input current vs Input voltage

RG..A..A..

RG..D..D..

RG..D..A..

Input current vs Input voltage
