74ACT10

TRIPLE 3-INPUT NAND GATE

PRELIMINARY DATA

May 1997

s

s

LOW POWER DISSIPATION:

s

COMPATIBLE WITH TTL OUTPUTS

s

50

Ω TRANSMISSION LINE DRIVING

CAPABILITY

s

SYMMETRICAL OUTPUT IMPEDANCE:

s

BALANCED PROPAGATION DELAYS:

s

OPERATING VOLTAGE RANGE:

s

PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 10

s

IMPROVED LATCH-UP IMMUNITY

DESCRIPTION

The ACT10 is an advanced high-speed CMOS

TRIPLE 3-INPUT NAND GATE fabricated with

sub-micron silicon gate and double-layer metal

wiring C

power

applications

mantaining

high

speed

operation similar to equivalent Bipolar Schottky

TTL.

The internal circuit is composed of 3 stages

including buffer output, which enables high noise

immunity and stable output.

The device is designed to interface directly High

Speed CMOS systems with TTL, NMOS and

CMOS output voltage levels.

All

inputs and

outputs

are

equipped with

protection circuits against static discharge, giving

them 2KV ESD immunity and transient excess

voltage.

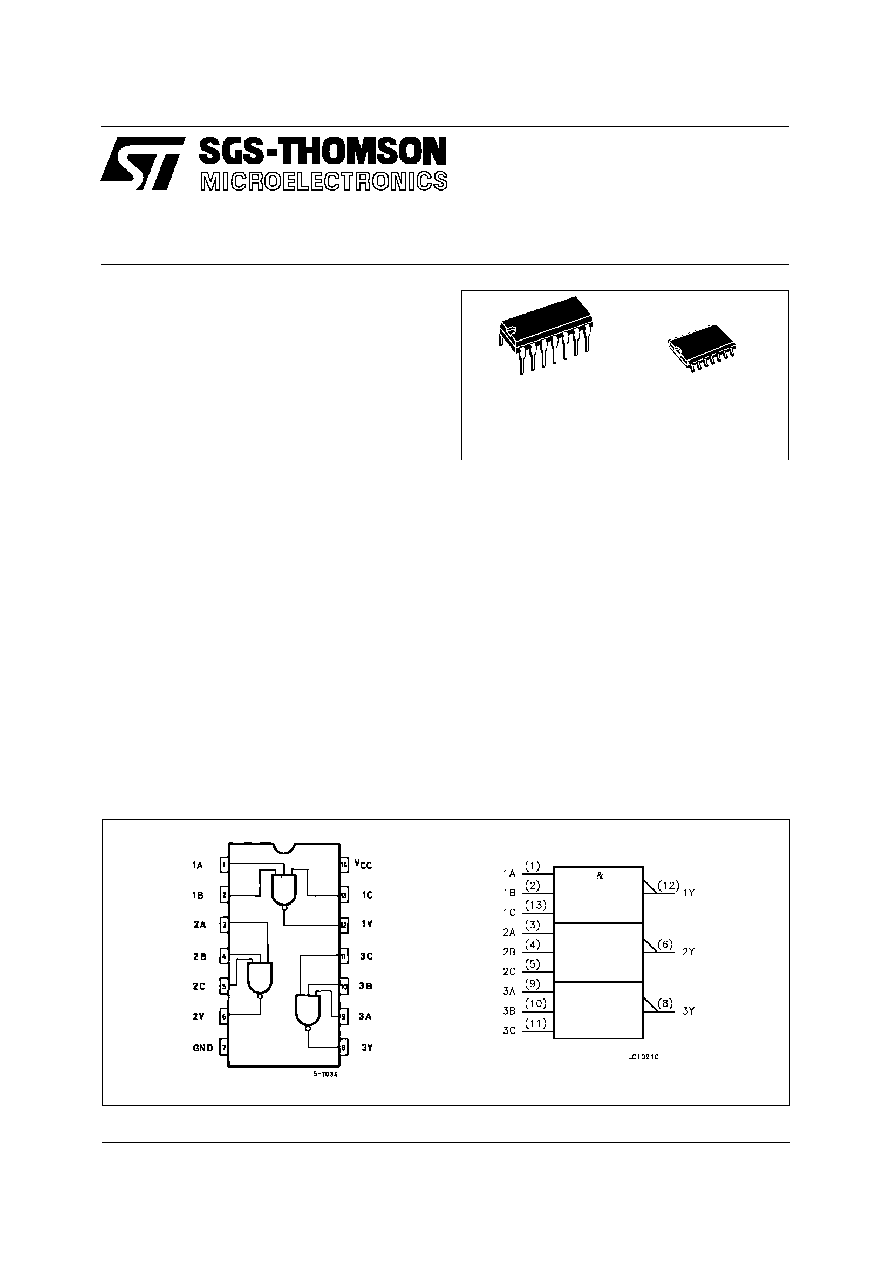

PIN CONNECTION AND IEC LOGIC SYMBOLS

ORDER CODES :

74ACT10B

74ACT10M

M

(Micro Package)

B

(Plastic Package)

1/7
