PW Radial Series

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Wire and Film Technologies Division

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

Physical Data

Dimensions (Inches)

Type

A

B

PW-20E

1.875 ±0.030

2.5 ±0.060

PW-30

2.00 ±0.030

2.55 ±0.060

PW-40

2.45 ±0.030

3.00 ±0.060

PW-50E

3.075 ±0.030

3.625 ±0.060

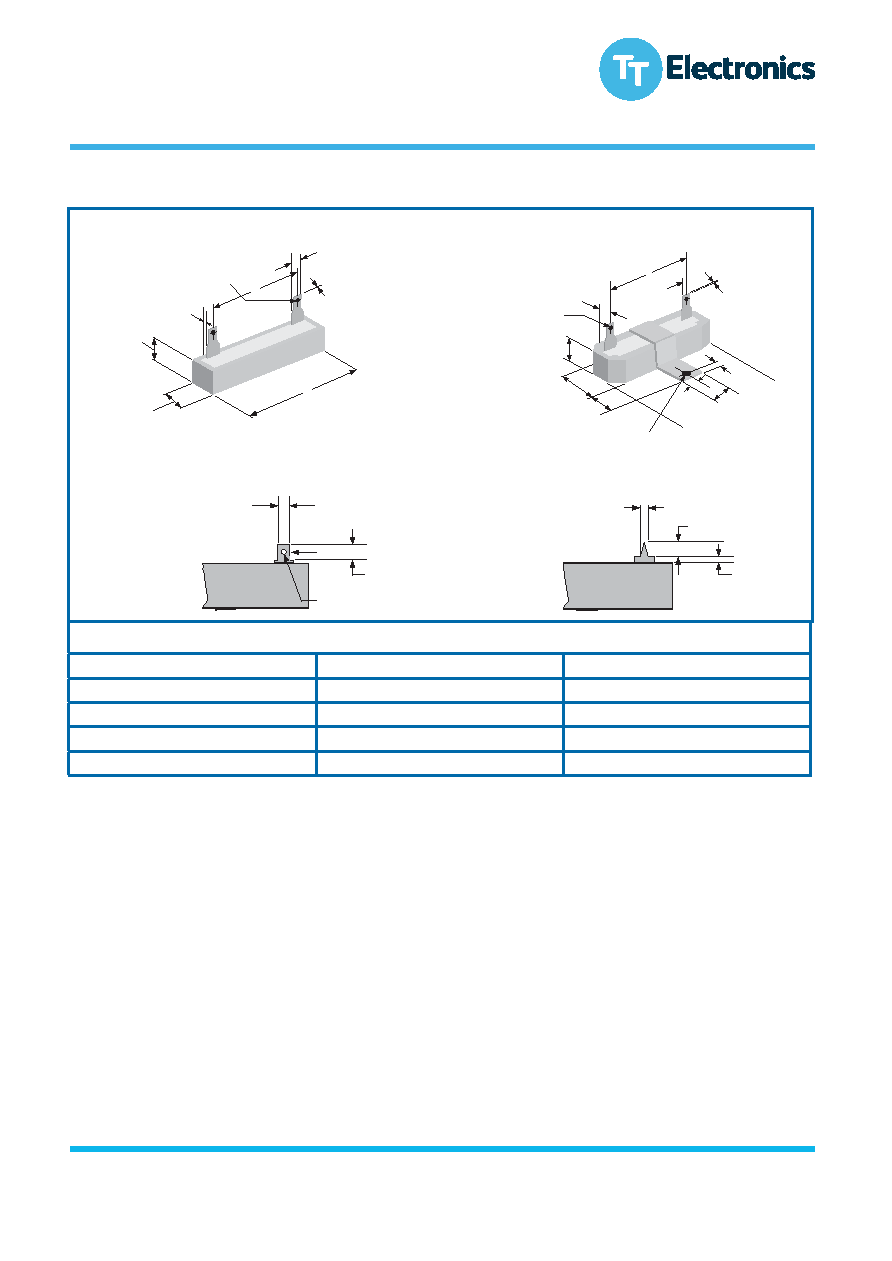

PW-20E Wirewound

PW-30, 40 and 50E Wirewound

PW-20E Alternate

Terminal

Configuration

-0.020" Tin coated Steel

General Purpose

Radial Terminal

Power Wirewound Resistor

0.032±0.0025

B

0.5±0.030

0.5±0.030

0.157±0.020

A

5/32 Dia. Thru (2)

0.250 (Typ.)

0.75±0.030

0.875

7/32 Dia.

0.25

0.75

0.375

0.032±0.0025

A

0.282±0.020

5/32 Dia. Thru (2)

0.75±0.030

Printed Circuit Terminal

0.069±0.005

0.205 or

0.187±0.005

0.25±0.031

0.135±0.015

0.200 (Typ.)

0.125±0.015

PW Radial Series Issue March 2011 Sheet 2 of 2

07.19

General Note

TT Electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.

© TT Electronics plc

www.ttelectronicsresistors.com

General Purpose Radial Terminal Power Wirewound Resistor
