CC1070
SWRS043A
Page 16 of 54
8
Configuration Overview
CC1070 can be configured to achieve
optimum
performance
for
different
applications. Through the programmable
configuration registers the following key
parameters can be programmed:
• RF output power
• Frequency
synthesizer
key
parameters: RF output frequency, FSK
frequency separation, crystal oscillator
reference frequency
• Power-down / power-up mode
• Crystal oscillator power-up / power
down
• Data rate and data format (NRZ,
Manchester coded or UART interface)
• Synthesizer lock indicator mode
• FSK / GFSK / OOK modulation
8.1 Configuration Software
TI provides users of
CC1070 with a
software
program,
SmartRF®
Studio
(Windows interface) that generates all
necessary
CC1070 configuration data
based on the user's selections of various
parameters. These hexadecimal numbers
will then be the necessary input to the
microcontroller for the configuration of
CC1070. In addition, the program will
provide the user with the component
values needed for the output matching
circuit, the PLL loop filter and the LC filter.
Figure 4 shows the user interface of the
CC1070 configuration software.

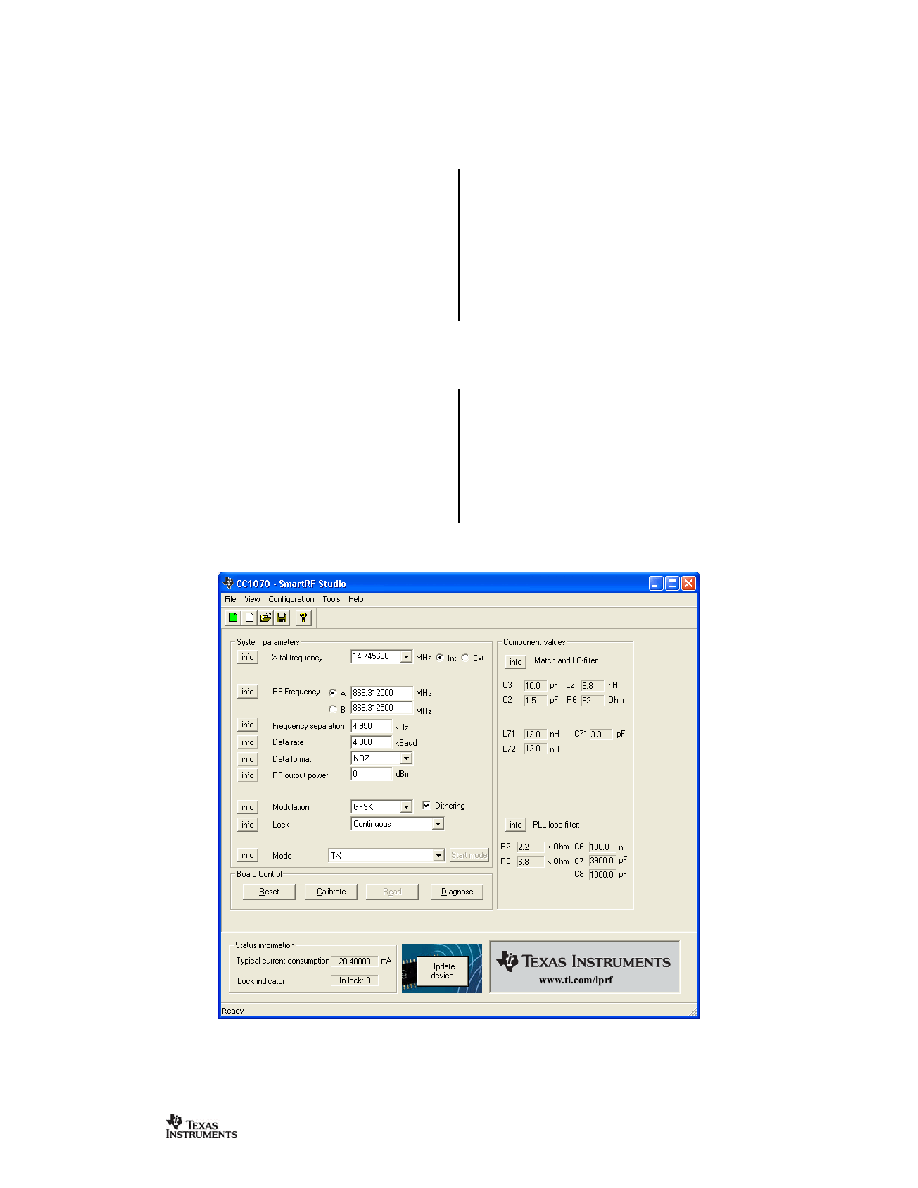

Figure 4. SmartRF® Studio user interface
