POWER MANAGEMENT

SC615

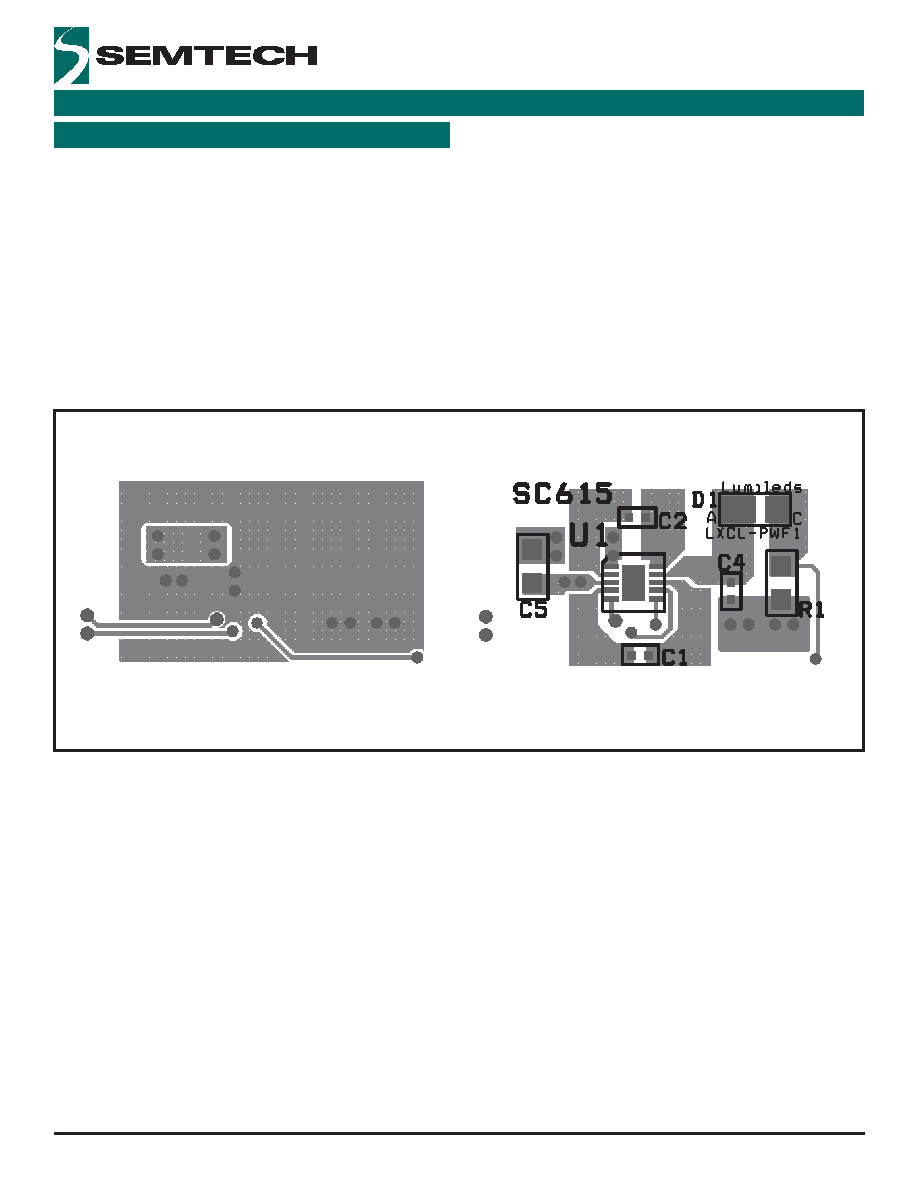

Layout Guidelines

The following layout is suggested for a two-layer design.

The capacitors C1 and C2 are the bucket capacitors and

each conducts the full load current of up to 500mA

pulsed for one half clock cycle. C3 is the output

decoupling capacitor placed near the SC615 VOUT pin.

C4 is the input decoupling capacitor placed near the

SC615 VIN pin. Multiple vias should be used whenever

it is necessary to change layers on nets connecting to

pins VIN, VOUT, GND, C1-, C1+, C2- and C2+. Resistor

R1 is routed with a very low resistance connection be-

tween R1 and GND pin 3. The sense trace between Pin

6 and R1 is routed around the ground vias, allowing the

Bottom Copper

Top Copper

shortest ground return path possible. The sense trace is

connected to R1 at the positive terminal pad for the most

accurate output possible.

The bottom copper layer is mostly a ground plane with

no obstructions between the ground vias. The smaller

rectangle to the left connects the input power to VIN pin

1 and input capacitor C4. The two traces at the lower

left are for logic inputs FLASH and CTRL. The trace to

the right is the ISET pin "sense" trace. The sense trace is

routed out of the path of the returning ground current.
