AD8318

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. E | 9 of 24

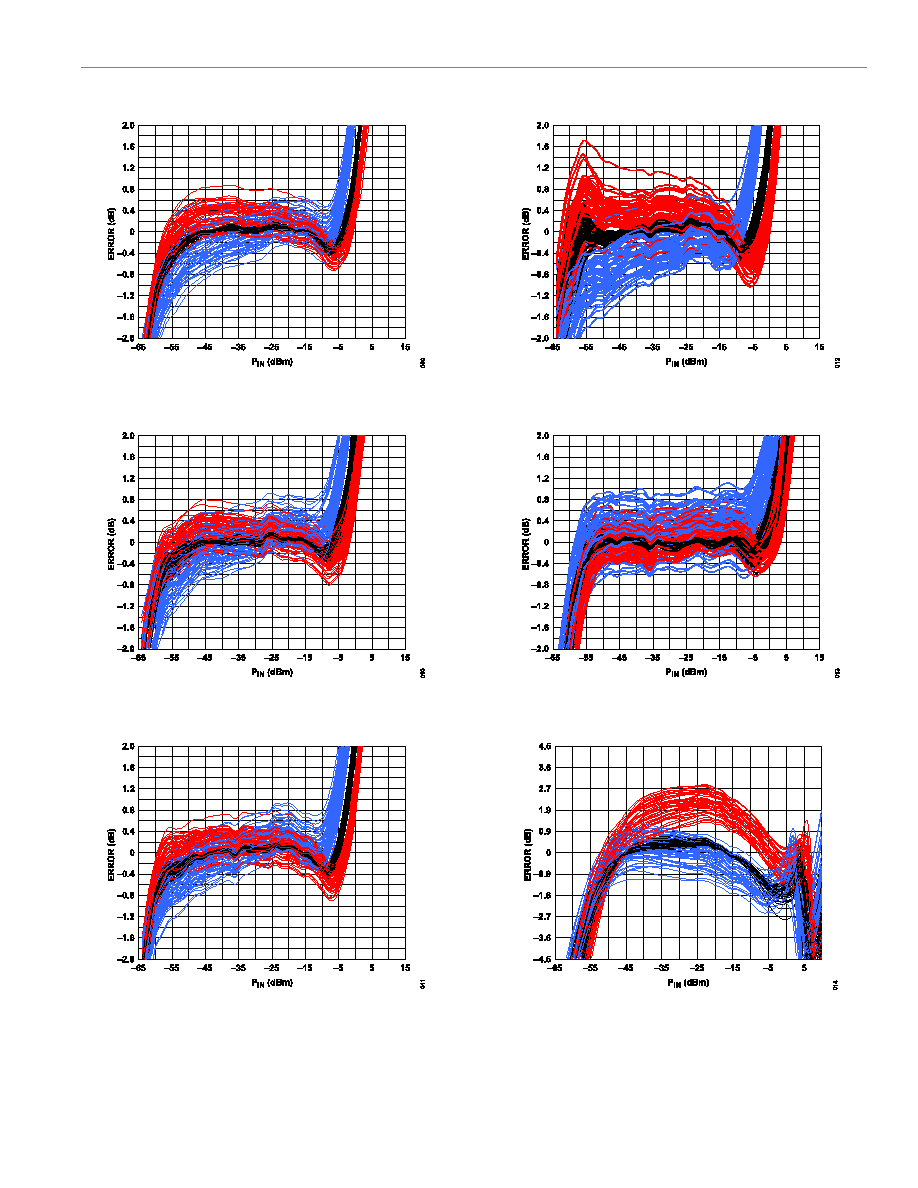

Figure 10. Distribution of Error over Temperature After Ambient

Normalization vs. Input Amplitude at 900 MHz for at Least 70 Devices

Figure 11. Distribution of Error at Temperature After Ambient Normalization

vs. Input Amplitude at 1900 MHz for at Least 70 Devices

Figure 12. Distribution of Error at Temperature After Ambient Normalization

vs. Input Amplitude at 2.2 GHz for at Least 70 Devices

Figure 13. Distribution of Error at Temperature After Ambient Normalization

vs. Input Amplitude at 3.6 GHz for at Least 70 Devices, RTADJ = 51 Ω

Figure 14. Distribution of Error at Temperature After Ambient Normalization

vs. Input Amplitude at 5.8 GHz for at Least 70 Devices, RTADJ = 1000 Ω

Figure 15. Distribution of Error at Temperature After Ambient Normalization

vs. Input Amplitude at 8 GHz for at Least 70 Devices
