SAC-2507-059-S2

www.eravant.com | 424-757-0168 | support@eravant.com

Copyright © 2023 by Eravant

4/4

Advanced Rev 1.1

Mechanical Outline: (Unless otherwise specified, all dimensions are in inches [millimeters])

-60

-50

-40

-30

-20

-10

0

140

150

160

170

180

190

200

210

220

Frequency (GHz)

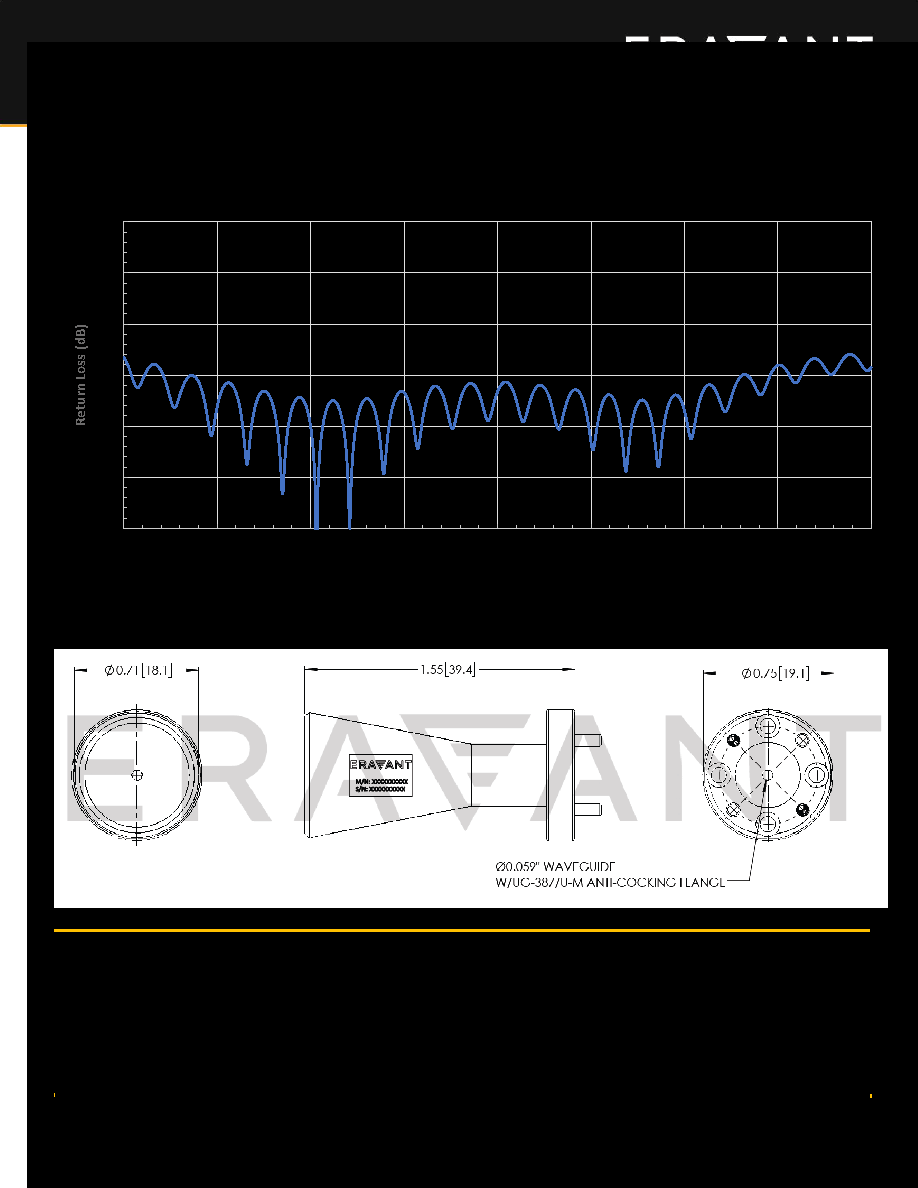

Simulated Return Loss Vs Frequency

NOTE:

•

Data provided is simulated, actual measured data may slightly vary.

•

Eravant reserves the right to change the information presented without notice.

CAUTION:

•

Any foreign objects in the antenna will cause performance degradation and possible device damage.
