AD823

Data Sheet

Rev. E | Page 14 of 20

OUTPUT IMPEDANCE

The low frequency open-loop output impedance of the common-

emitter output stage used in this design is approximately 30 kΩ.

Although this is significantly higher than a typical emitter

follower output stage, when it is connected with feedback, the

output impedance is reduced by the open-loop gain of the op

amp. With 109 dB of open-loop gain, the output impedance is

reduced to <0.2 Ω. At higher frequencies, the output impedance

rises as the open-loop gain of the op amp drops; however, the

output also becomes capacitive due to the integrator capacitors

C1 and C2. This prevents the output impedance from ever

becoming excessively high (see Figure 18), which can cause

stability problems when driving capacitive loads. In fact, the AD823

has excellent cap-load drive capability for a high frequency op

amp. Figure 34 shows the AD823 connected as a follower while

driving 470 pF direct capacitive load. Under these conditions,

the phase margin is approximately 20°. If greater phase margin

is desired, a small resistor can be used in series with the output

to decouple the effect of the load capacitance from the op amp

(see Figure 26). In addition, running the part at higher gains

also improves the capacitive load drive capability of the op amp.

VOUT

S1N

C1

S1P

C5

R1

R1

gmVI

gmVI

gm2

C2

R2

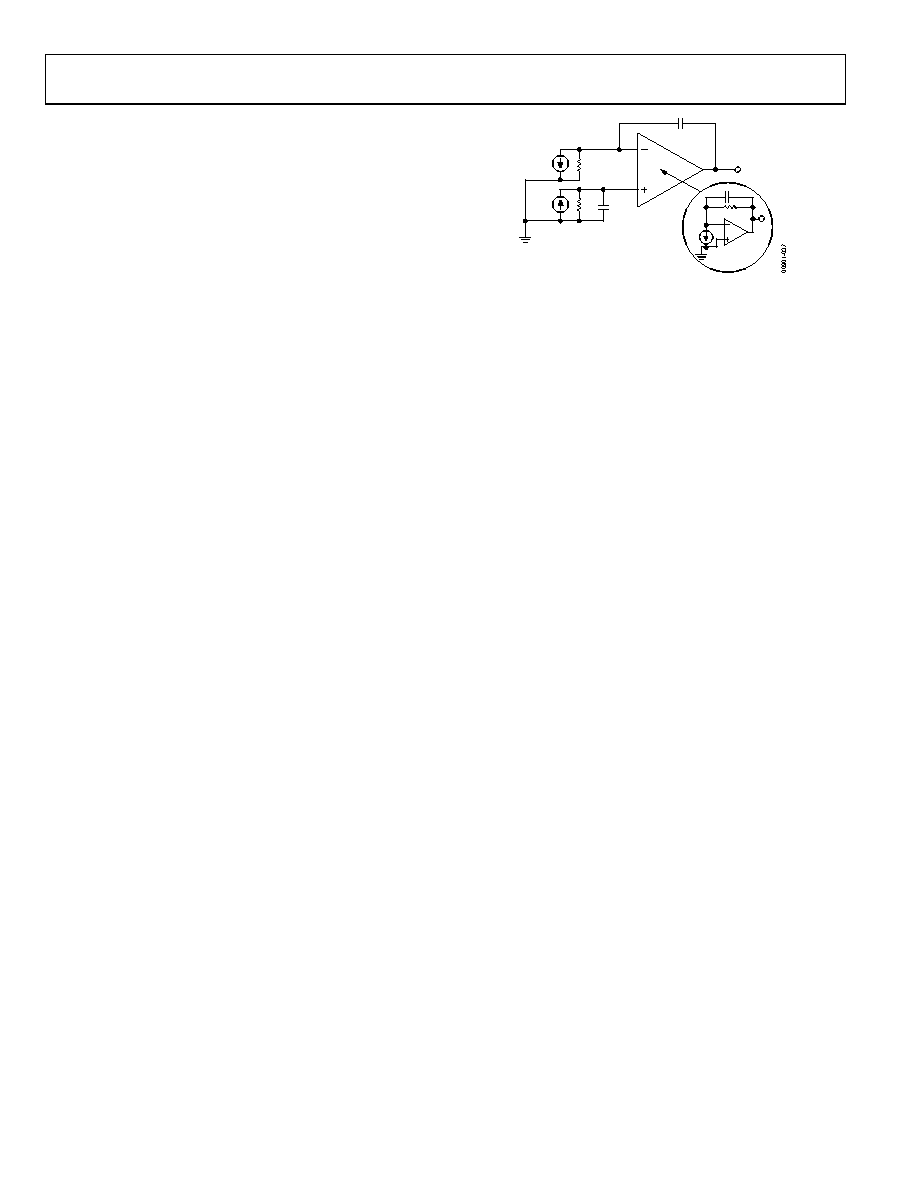

Figure 37. Small Signal Schematic
