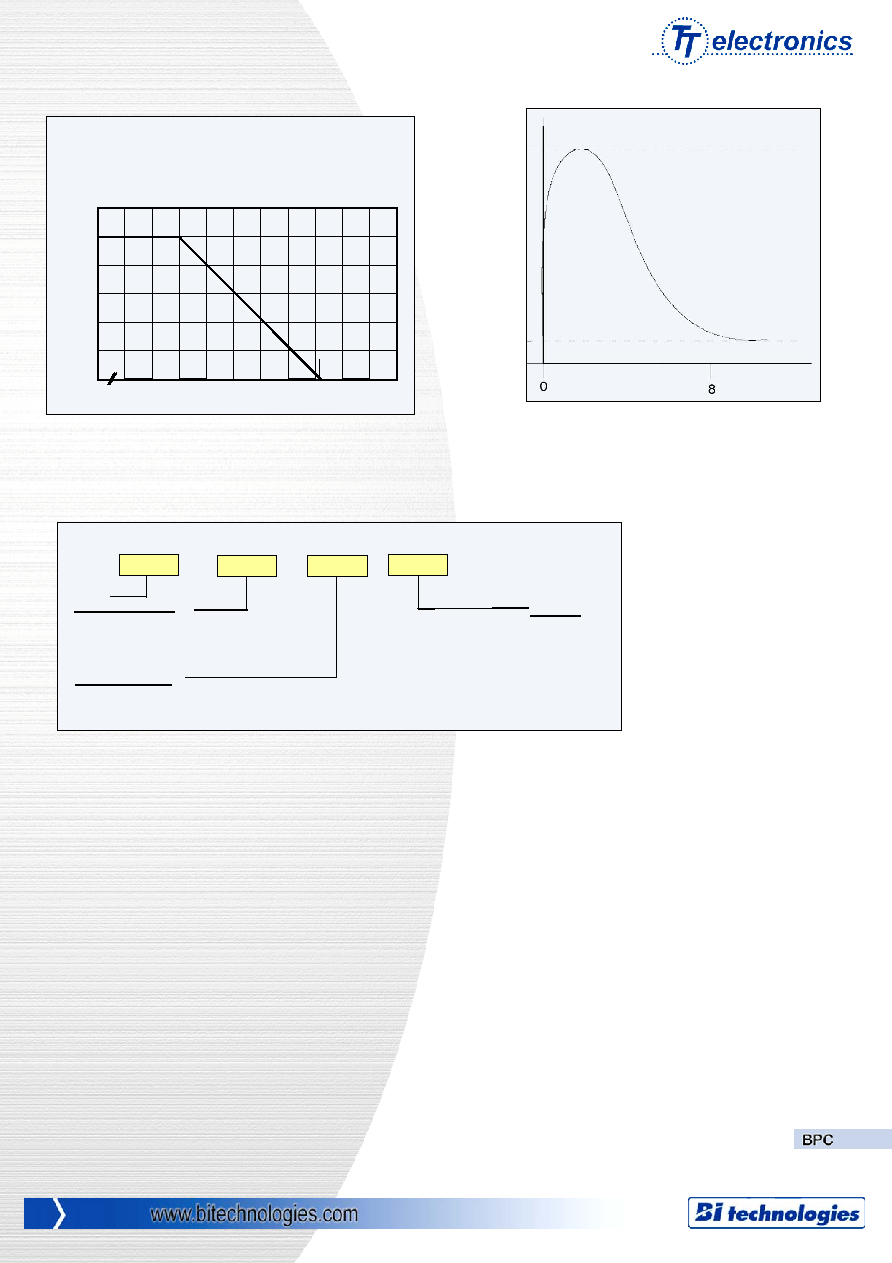

Ordering Information

BPC

10

500

F

Model

Derating Curve

% Rated Power

100

70

°C

80

60

　　　　　

40

20

+155

°C

0

Resistor Temperature (

°C)

Overload Characteristic

20 x Nominal

Power Rating

Power

Nominal

Power Rating

Time Milliseconds

BPC

3W to 10W PLANAR HIGH POWER RESISTORS

2

Power Rating Code

3 : 3W

5 : 5W

7 : 7.5W

10 : 10W

Tolerance

K = 10% Tol

J = 5% Tol

G = 2% Tol

F = 1% Tol

Resistance Code

50

Ω : 500 First two digits significant, last digit: number of trailing zeros
