Anschlussbild CSS 014 IO-Link

+24V DC

1

2

3

4

1

2

3

4

n/a

I/O-Link

+

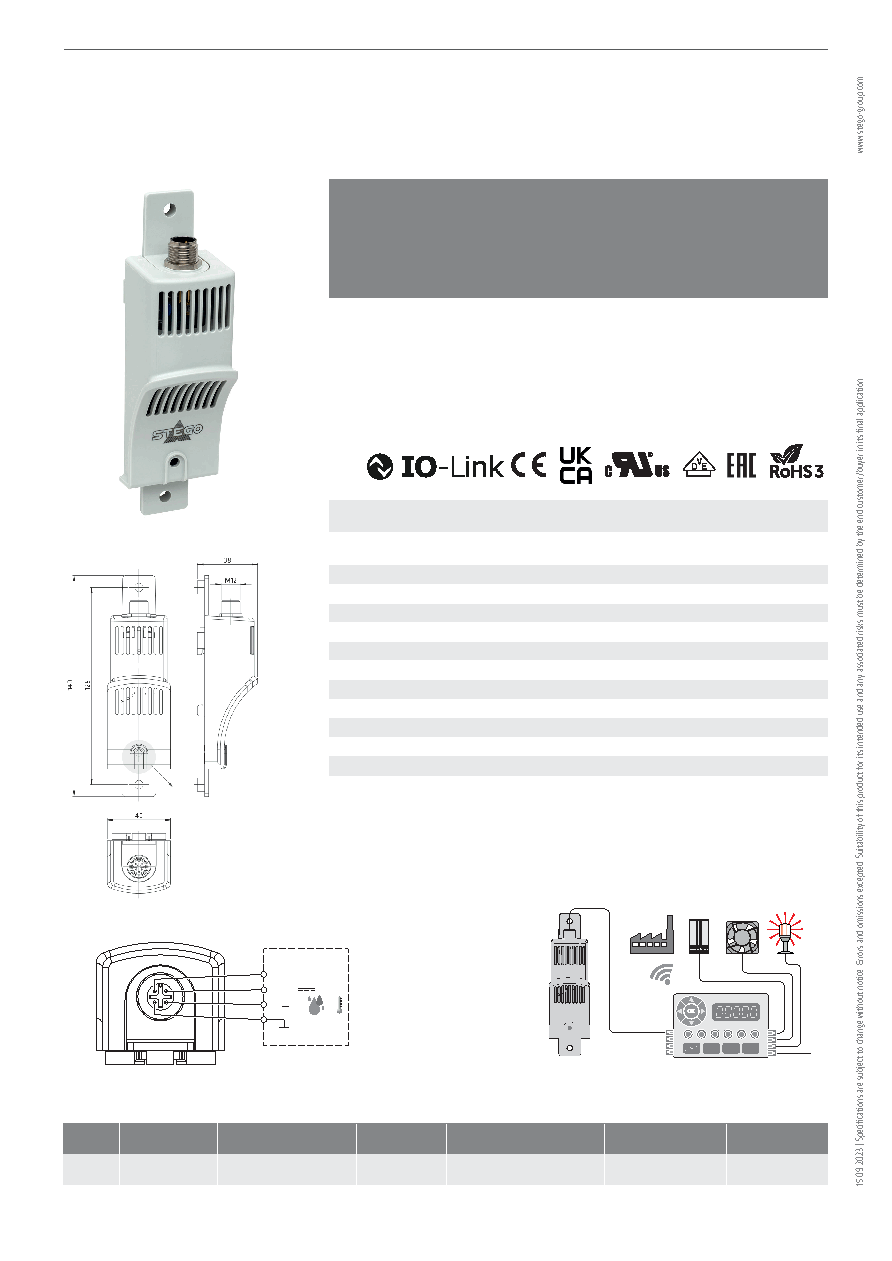

PRODUCT CATALOGUE - STEGO

SMART SENSOR CLIMATE DIGITAL

CSS 014 | IO-LINK, DC 24 V

TECHNICAL DATA

Measuring signals digital (IO-Link)

temperature, humidity

events, diagnosis, device data

Connection

M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded,

shielded

Electrical protection

Reverse-polarity, short circuit, overvoltage protection

Mounting

clip for 35 mm DIN rail, EN 60715 and screw fixing M5

Casing

plastic according to UL94 V-0, light grey

Dimensions

140 x 40 x 38 mm

Weight

~ 50 g

Fitting position

vertical, connection on top

Storage temperature

-40 to +85 °C (-40 to +185 °F)

Operating/Storage humidity

< 90 % RH (non-condensing)

Protection type1/Protection class

IP20 (sensor only IP57) / III (SELV)

Approvals

VDE, UL File No. E500143 (acc. to IEC 61010-1/DIN EN 61010-1), EAC

Note

other measuring ranges on request

1

The PCB (printed circuit board) is coated on both sides with a certified protective lacquer to protect against corrosion and for

improvement of the tracking resistance.

The compact Smart Sensor CSS 014 electronically records temperature and humidity and converts the measured

data into a standardized digital IO-Link signal. The converted value signals can be utilized or further processed by

a control or monitoring unit, e.g. a PLC control. The Smart Sensor CSS 014 is suitable for use in control cabinets

and enclosures, but can also be installed in many new areas of application and can even be used in harsh

environmental conditions, e.g. in the wind power industry. It is characterised by its combined perception and

diagnostic capabilities, which significa-ntly contribute to the optimisation of digitalisation processes

> Digital interface

> Small size

> Easy clip and/or screw fixing

> Quick connection (M12 plug-in

connector)

> High accuracy

> Large temperature and humidity range

> Various application areas

(IEC 61010-1/DIN EN 61010-1)

Art. No.

Interface

Operating

voltage

Power

consumption max.

Temperature

measuring range

Humidity

measuring range

Operating

temperature

01411.2-01

IO-Link (digital, speci-

fied acc. to version 1.1)

DC 24 V (DC 18-30 V)

0.3 W

-40 to +80 °C (-40 to +176 °F) ± 0.3 K2

(Max. reaction time t

60 195 s)

0 to 100% RH ± 3%3

(Max. reaction time t

60 14 s)

-40 to +80 °C

(-40 to +176 °F)

2

Tolerance data measured at nominal voltage DC 24 V between +5 to +60°C

3

Tolerance data measured at nominal voltage DC 24 V between 20 to 80 % RH

Example of connection

Pin assignment for 4-pin

M12 round plug connector

Protection type IP57

MEASURING
