• I

S is positive when IP flows in the direction of the arrow.

• Temperature of the primary conductor should not exceed

90°C.

• This is a standard model. For different versions (supply

voltages, turns ratios, unidirectional measurements...),

please contact us.

Mechanical characteristics

• General tolerance

± 0.2 mm

• Fastening & connection of primary

bus bar

6.4 x 1.6 mm

Recommended PCB hole

3.8 mm

• Fastening & connection of secondary

3 pins

0.63 x 0.56 mm

Recommended PCB hole

0.9 mm

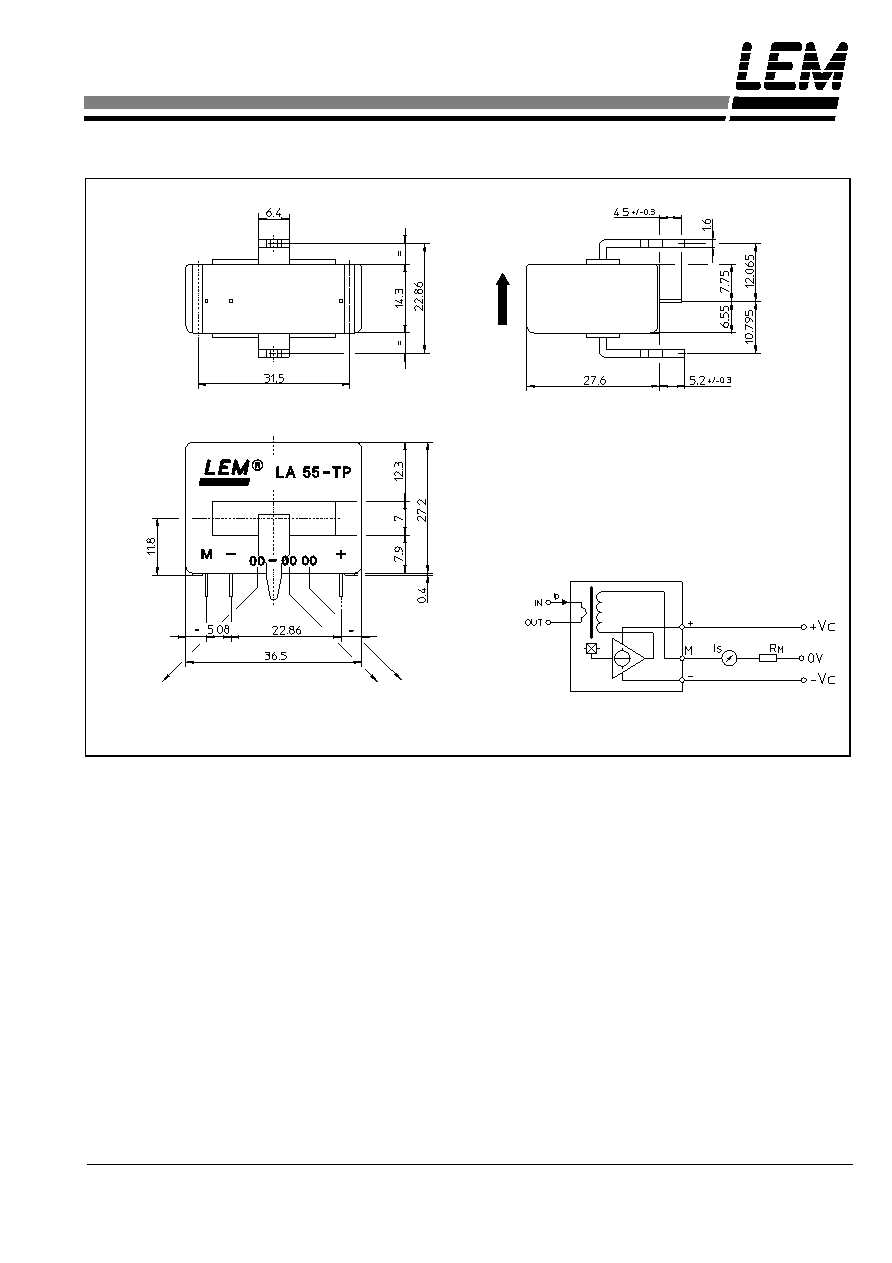

Dimensions LA 55-TP (in mm. 1 mm = 0.0394 inch)

Bottom view

Front view

Left view
