date 10/11/2019

page 1 of 3

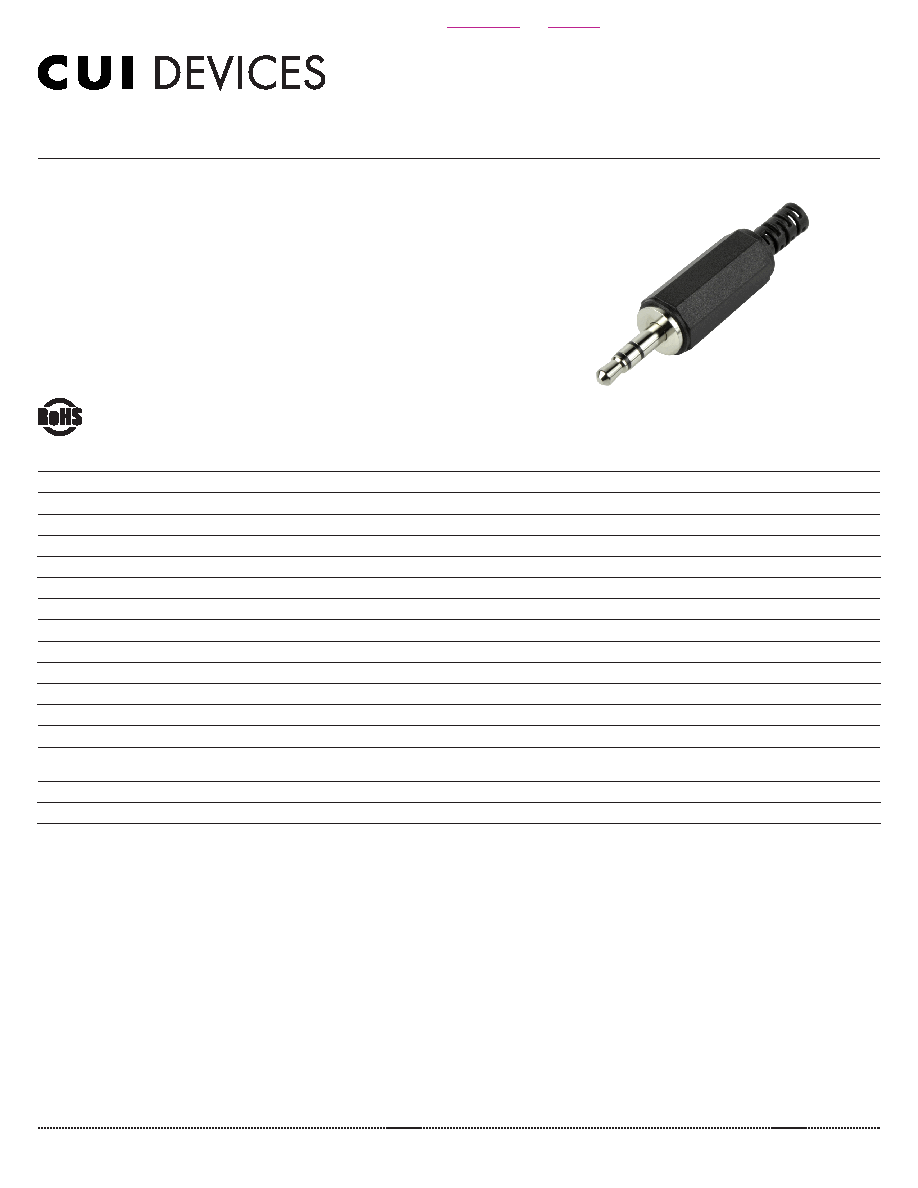

MODEL: SP-3530

│ DESCRIPTION: AUDIO PLUG

cuidevices.com

FEATURES

• 3 conductor

• octagonal cover with strain relief

SPECIFICATIONS

parameter

conditions/description

min

typ

max

units

rated input voltage

12

Vdc

rated input current

1

A

contact resistance

between plug and jack

50

mΩ

insulation resistance

at 500 Vdc

100

MΩ

voltage withstand

for 1 minute

500

Vac

insertion force

when mating with a standard jack

0.4

4

kgf

withdrawal force

when mating with a standard jack

0.4

4

kgf

operating temperature

-25

70

°C

operating humidity

85

%

life

5,000

cycles

flammability rating

see material table

RoHS

yes

SOLDERABILITY

parameter

conditions/description

min

typ

max

units

hand soldering

for maximum 1 second

380

400

420

°C
