TP-DCDC

TP-DCDC Spec Rev 11

6-Aug-20

Specifications Subject to Change Without Notice

Page 2

System Ordering:

TP-DCDC-1218

9-36VDC IN 18VDC OUT, 18W DC to DC Converter with PoE Inserter

TP-DCDC-1224

9-36VDC IN 24VDC OUT, 19W DC to DC Converter with PoE Inserter

TP-DCDC-1248

9-36VDC IN 48VDC OUT, 24W DC to DC Converter with PoE Inserter

TP-DCDC-1248M

9-36VDC IN 48VDC OUT, 24W DC to DC Converter with PoE Inserter. Metal Case.

TP-DCDC-1248D

9-36VDC IN 48VDC OUT, 16.8W DC to DC Converter with 802.3af PoE Inserter

For further information contact:

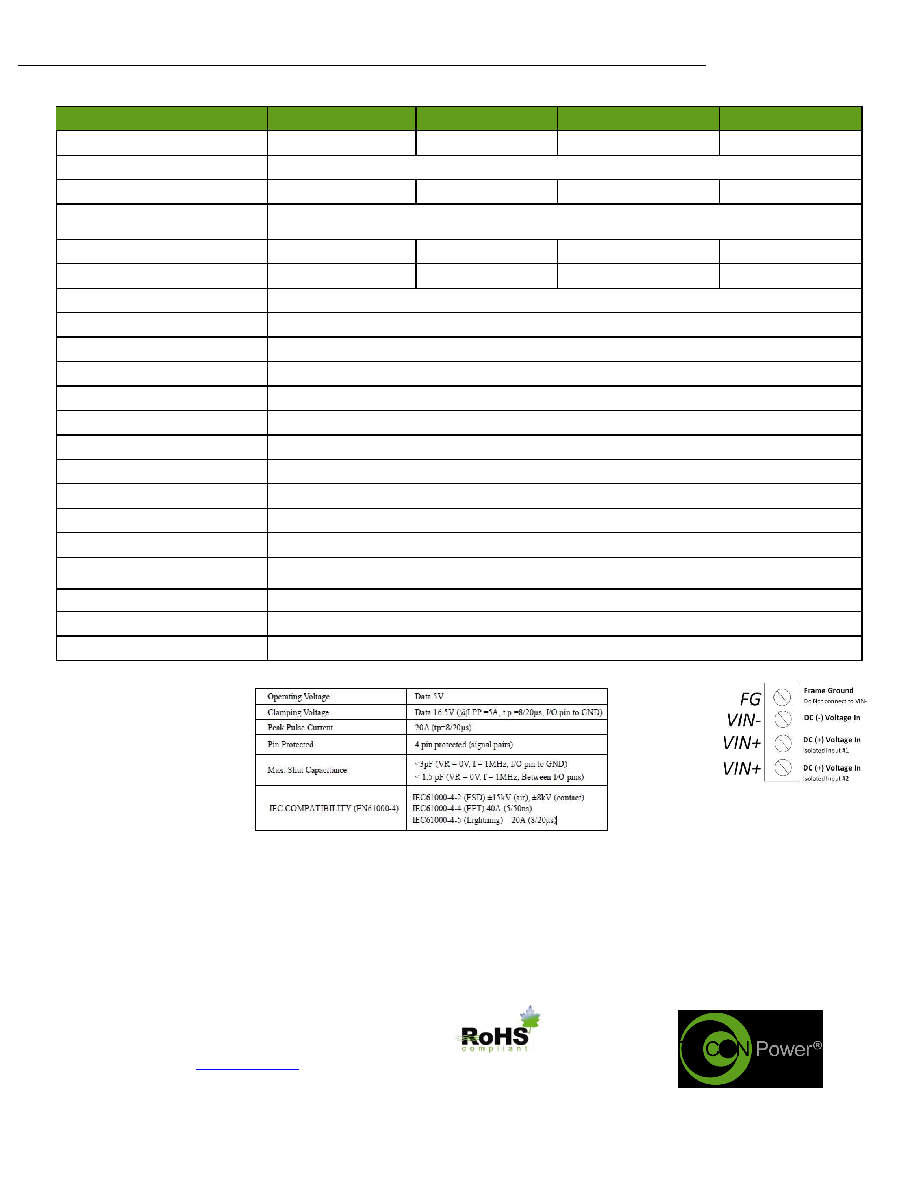

TP-DCDC-1218

TP-DCDC-1224

TP-DCDC-1248 (M)

TP-DCDC-1248D

DC Input Voltage

9VDC

– 36VDC

9VDC

– 36VDC

9VDC

– 36VDC

9VDC

– 36VDC

DC Input Connector

Removeable Screw Type Compression Wire Terminal (12 AWG Max)

DC Output Voltage (+/-2.5%)

18V (Passive)

24V (Passive)

48V (Passive)

48V (802.3af)

Data in & Data/POE Output

Connector

RJ45 (Shielded)

Output Current (max)

1.0A

0.8A

0.5A

0.35A

Output Power (max)

18W

19W

24W

16.8W

Self Consumption Power

1W

Efficiency (min)

75%

Line Regulation

1%

Load Regulation

5%

Ripple

1%

Noise

1%

EMC Standards

FCC Part 15 Sub B Class A, CE 55032, 55035

Safety Standards

EN/IEC 60950

Operating Temperature

-30 to +60°C (-22 to +140°F)

Operating Humidity (RH)

5% - 90%

Storage Temperature

-40 to +80°C (-40 to +176°F)

MTBF (Mean Time Between

Failure)

166,000 Hours

Dimensions (LxWxH)

85 x 76 x 36mm (3.4 x 3 x 1.4”)

Weight

134g (4.7oz)

Warranty

3 Years

Tyconsystems.com

DC Input Connector

Surge / Lightning Protection

14641 S 800 W Ste A Bluffdale, UT 84065

PH: 801-432-0003 FAX: 801-618-4220
