V200Z-R

FN-LINK TECHNOLOGY LIMITED

15

6.3 GPIO MUX Mapping

Maximum source current 10mA for each IO and 50mA for total.

Output state can be configured as strong PU or PL, input state can be configured as high-Z, PU, PL or no pull.

All of them have interrupt function.

GPIO state will be low impedance input when the module is power off, so we do not suggest low level cathode

drive mode.

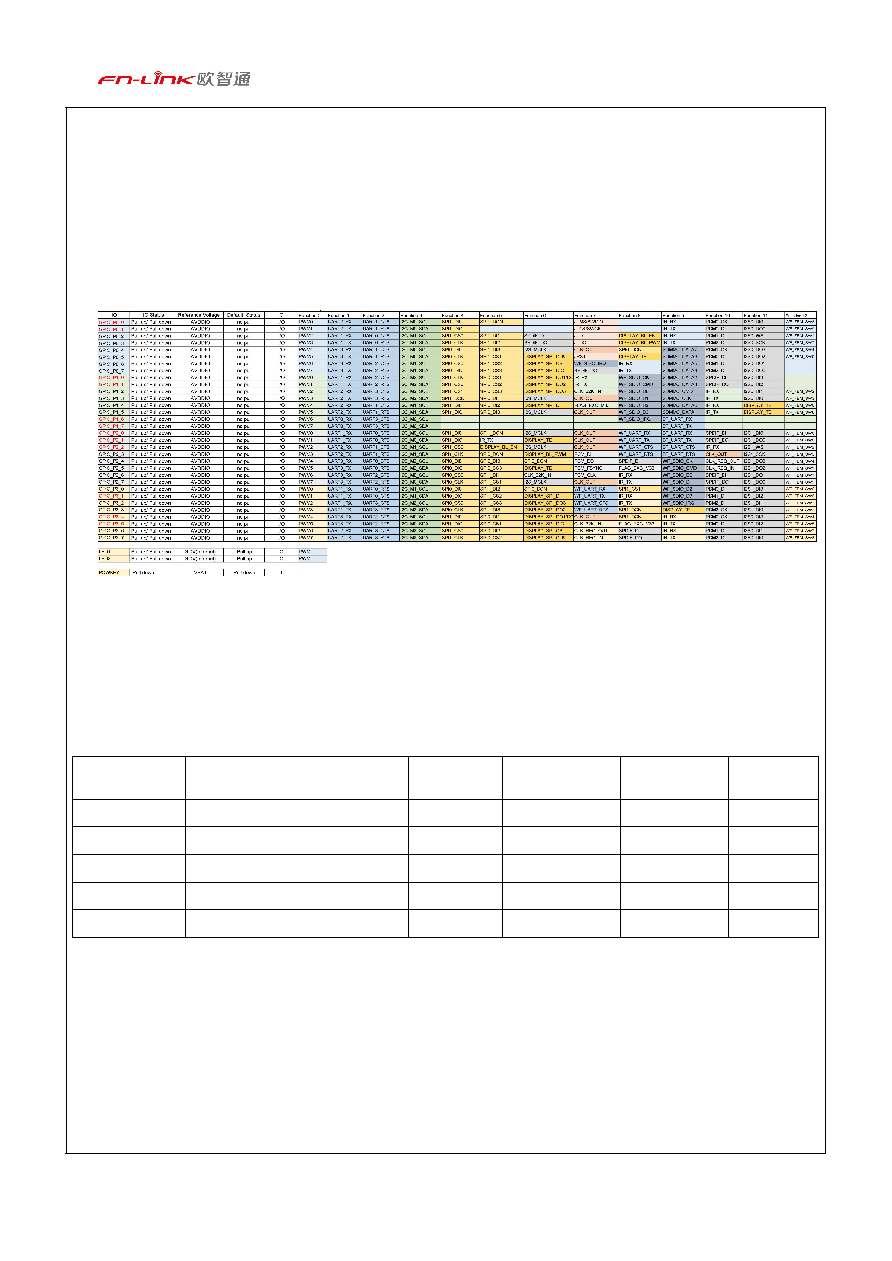

For detailed MUX mapping, please refer to below table.

7. Electrical Specifications

7.1 Absolute Maximum RatingsNote4

Symbol

Description

Min.

Typ.

Max.

Unit

TA

Ambient Temperature

-30

80

℃

VBAT

Supply Voltage

6

V

VIN

IO Input Voltage

-0.3

VDDIO+0.3

V

IIN

IO Input Current

-10

10

mA

VLNA

LNA Input Level

0

dBm

Note4: Stresses beyond those listed absolute maximum ratings may cause permanent damage to the device. These

are stress ratings only, and functional operations of the device at these or any other conditions beyond those

indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions

for extended periods may affect device reliability.
