TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 8 of 22

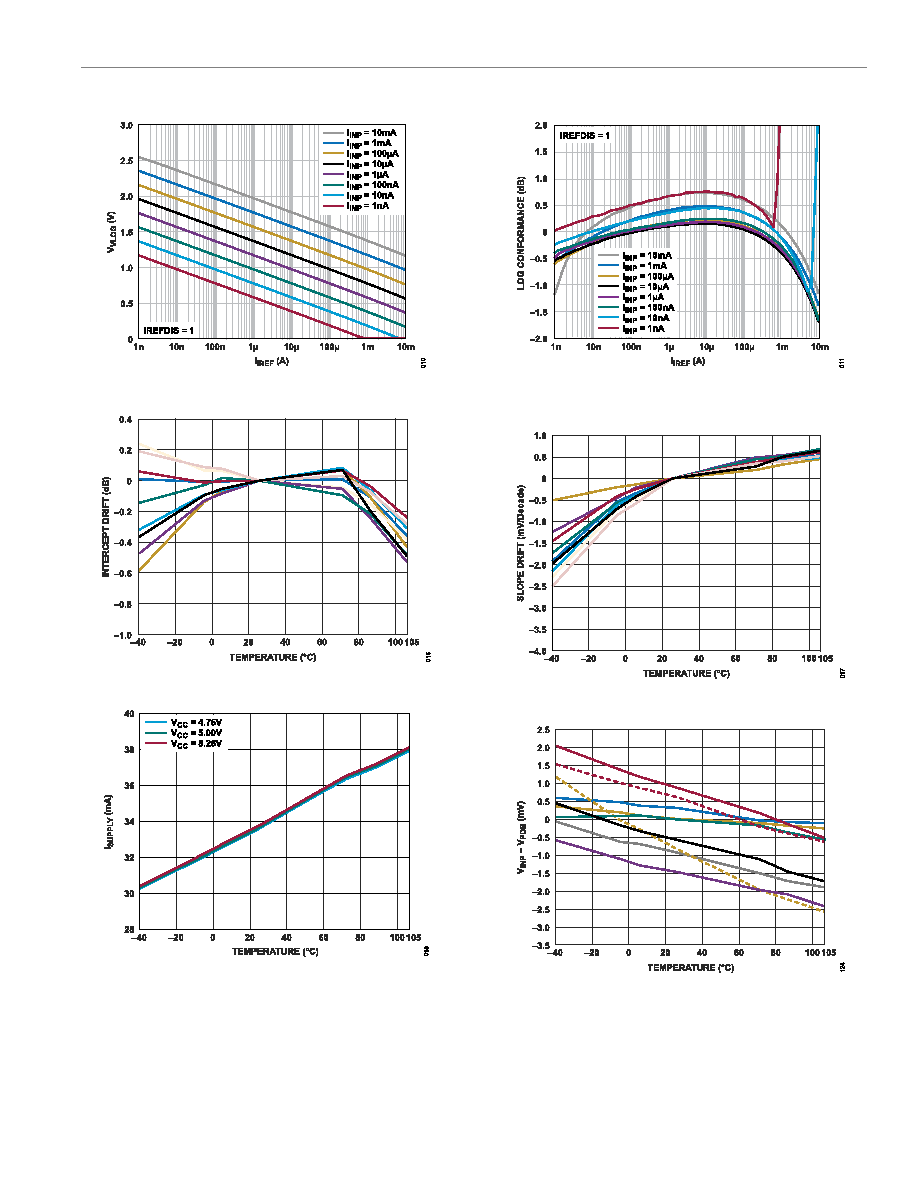

Figure 10. VVLOG vs. IIREF at Various IINP Values in Decade Steps

Figure 11. VVLOG − 1.1 V Intercept Drift vs. Temperature Over 10 Samples

Figure 12. Supply Current vs. Temperature at Various VCC Values for IINP = 10

nA

Figure 13. Log Conformance Error vs. IIREF at Various IINP Value in Decade

Steps

Figure 14. Slope Drift vs. Temperature Over 10 Samples

Figure 15. Offset Voltage at 10 nA vs. Temperature Over 10 Samples
