Rev 3

November 2005

1/7

7

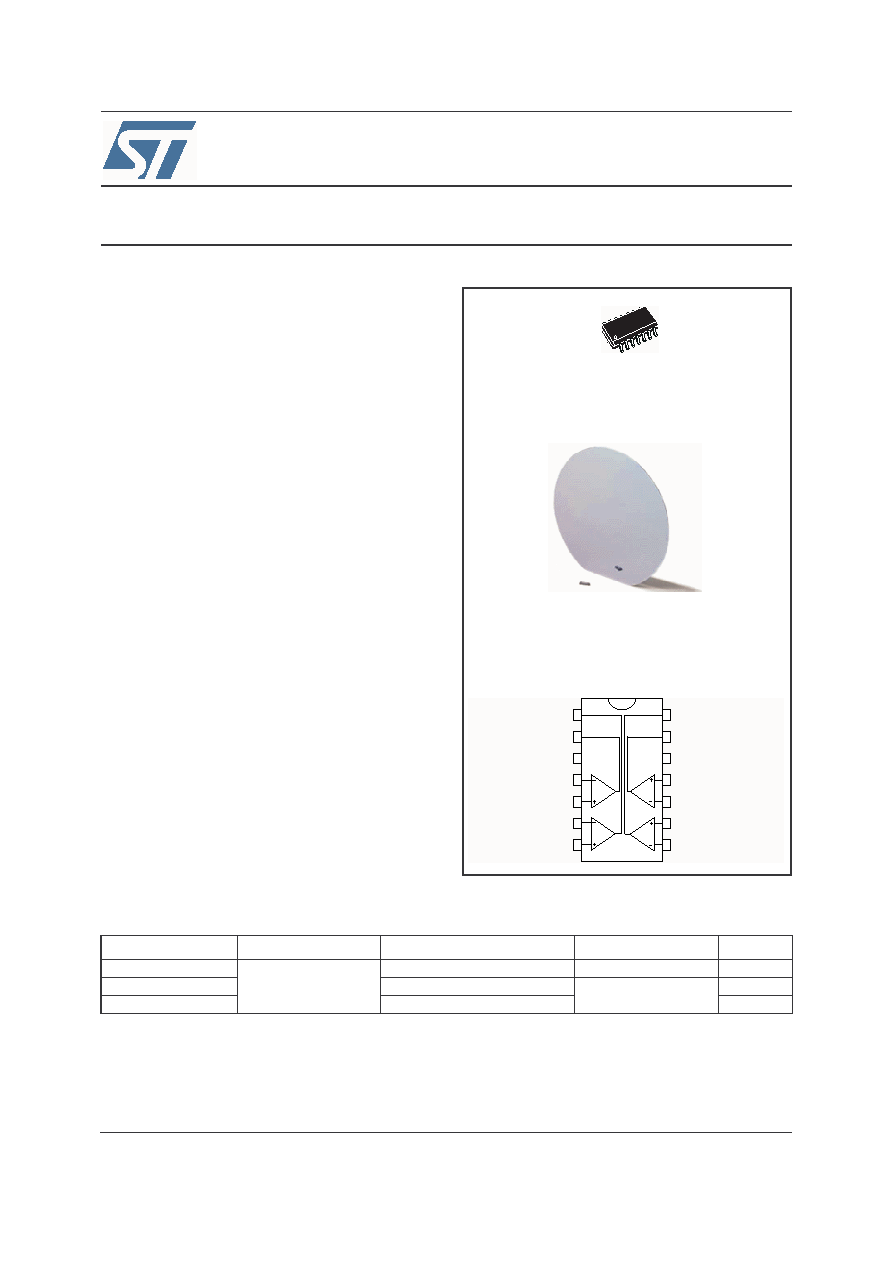

LM2901H

High Temperature Low Power Quad Voltage Comparators

supplies for all devices: +2V to +36V or ±1V to

±18V

of supply voltage (1.4mW/comparator at +5V)

ground

supply voltage

outputs

Description

This device consists of four independent precision

voltage comparators. All these comparators were

designed specifically to operate from a single

power supply over a wide range of voltages.

Operation from split power supplies is also

possible.

These

comparators

also

have

a

unique

characteristic in that the input common-mode

voltage range includes ground even though

operated from a single power supply voltage.

Order Codes

D

SO-14

(Plastic Micropackage)

Wafer form

4

5

6

7

8

9

10

11

13

1

2

3

14

12

Output 2

Output 4

Output 3

Non-inverting input 4

V

CC

Non-inverting input 3

Inverting input 4

V

CC

+

Output 1

Inverting input 1

Non-inverting input 2

-

Inverting input 3

Non-inverting input 1

Inverting input 2

Pin connections (top view)

Part Number

Temperature Range

Package

Packing

Marking

JLM2901H- I6D1

-40°C, +150°C

Wafer

LM2901HD

SO-14

Tube or Tape & Reel

2901H

LM2901HYD/HYDT

SO-14 (automotive grade level)

2901HY

www.st.com
