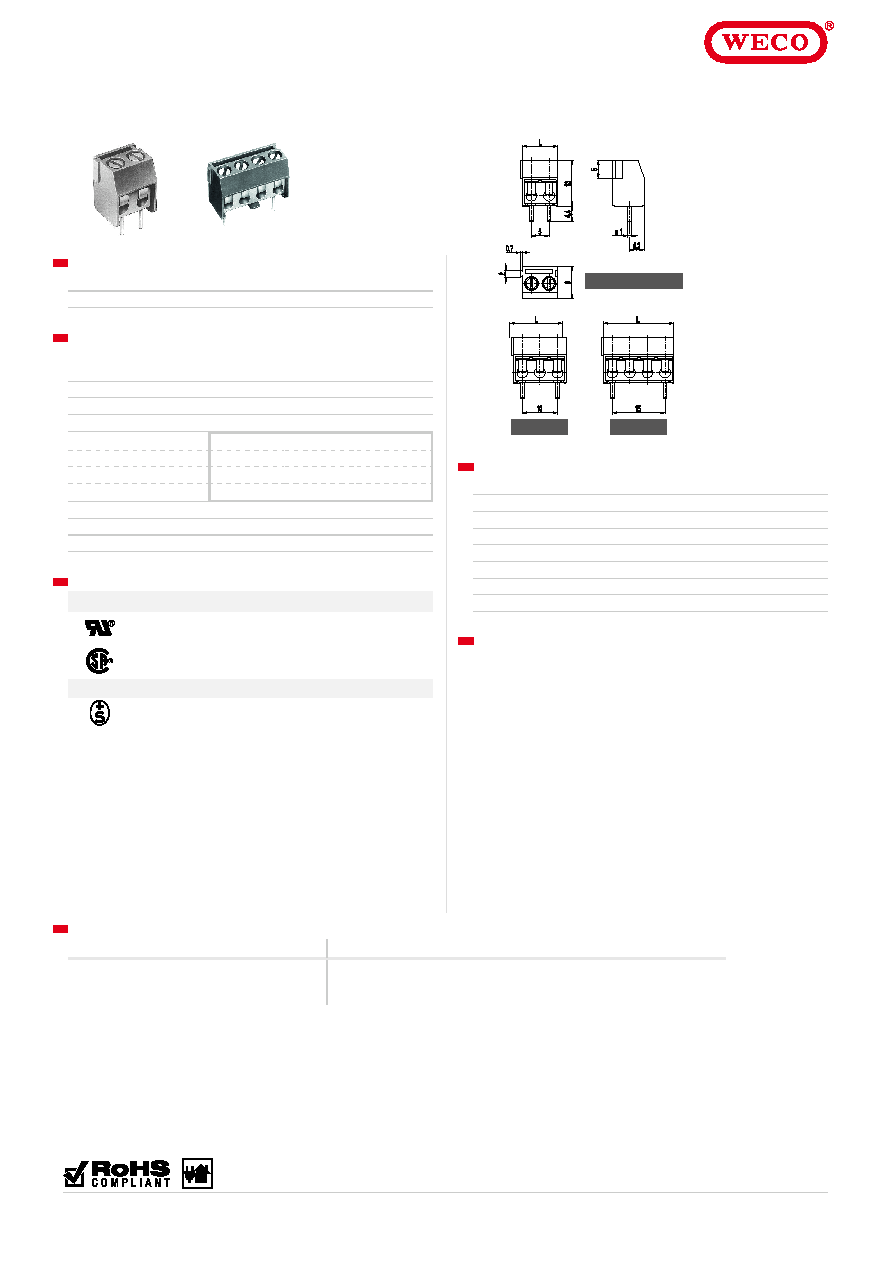

TECHNICAL DATA SHEET

970-TX..(-DS)

PCB connector

Screw connection, 2 to 4 screw connections at only one pole, interlocking

07.19

970-TX2-DS/01

..-TX4-..

..-TX3-..

MATERIAL

Moulding

PA, grey, V-0

Comparative Tracking Index

CTI ≥ 600

Insulating Group

I

Temperature Range

-40°C up to 100°C

Terminal body

Tin plated brass

Screw

M3; zinc plated steel, blue passivated

Solder pin

ø 1 mm; tin plated copper

Wire protector

Tin plated tin bronze

OPTIONS / ACCESSORIES

• Consecutive numbering

• Special marking according to drawing

• Self-adhesive marking strip BST-5,00

• Longer solder pins up to 95 mm

• Solder pins with different lengths

• Version with extended wire entrance

• Other position of solder pins

[1] Min No. 26 AWG for factory-wiring only

[2] Acc. to IEC 60947-7-4 und IEC 60947-1

CONFIGURATIONS

Poles Part number

Article number

Part number

Article number

Length (L)

Packaging

PU

2 970-TX../02

10.872.619

970-TX..-DS/02

20.872.619

10,00 mm

Box

250

3 970-TX../03

10.872.620

970-TX..-DS/03

20.872.620

15,00 mm

Box

250

4 970-TX../04

10.872.621

970-TX..-DS/04

20.872.621

20,00 mm

Box

200

GENERAL INFORMATION

Pitch

5 mm

No. of poles

1

TECHNICAL DATA

Clamping Range

solid / stranded / AWG

without wire protector

1 - 6 mm² / 1 - 2,5 mm² / 16 - 12 AWG

with wire protector

0,75 - 4 mm² / 0,75 - 2,5 mm² / 18 - 12 AWG

Rated Cross Section

2,5 mm²

Wire Stripping Length

6,5 mm ± 0,5 mm

Overvoltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

250 V

320 V

630 V

Rated Impulse Voltage

4 kV

4 kV

4 kV

Rated Current

24 A

Hole in PCB

ø 1,3 mm

Torque

0,5 Nm

APPROVALS

Current [A]

Voltage [V]

Group

AWG

[Nm]

20

10

300

300

B

D

22-12 [1]

22-12 [1]

0,51

0,51

20

10

300

300

B

D, E

26 - 12

26 - 12

0,51

0,51

Current [A]

Voltage [V]

mm²

24

250

2,5 [2]
