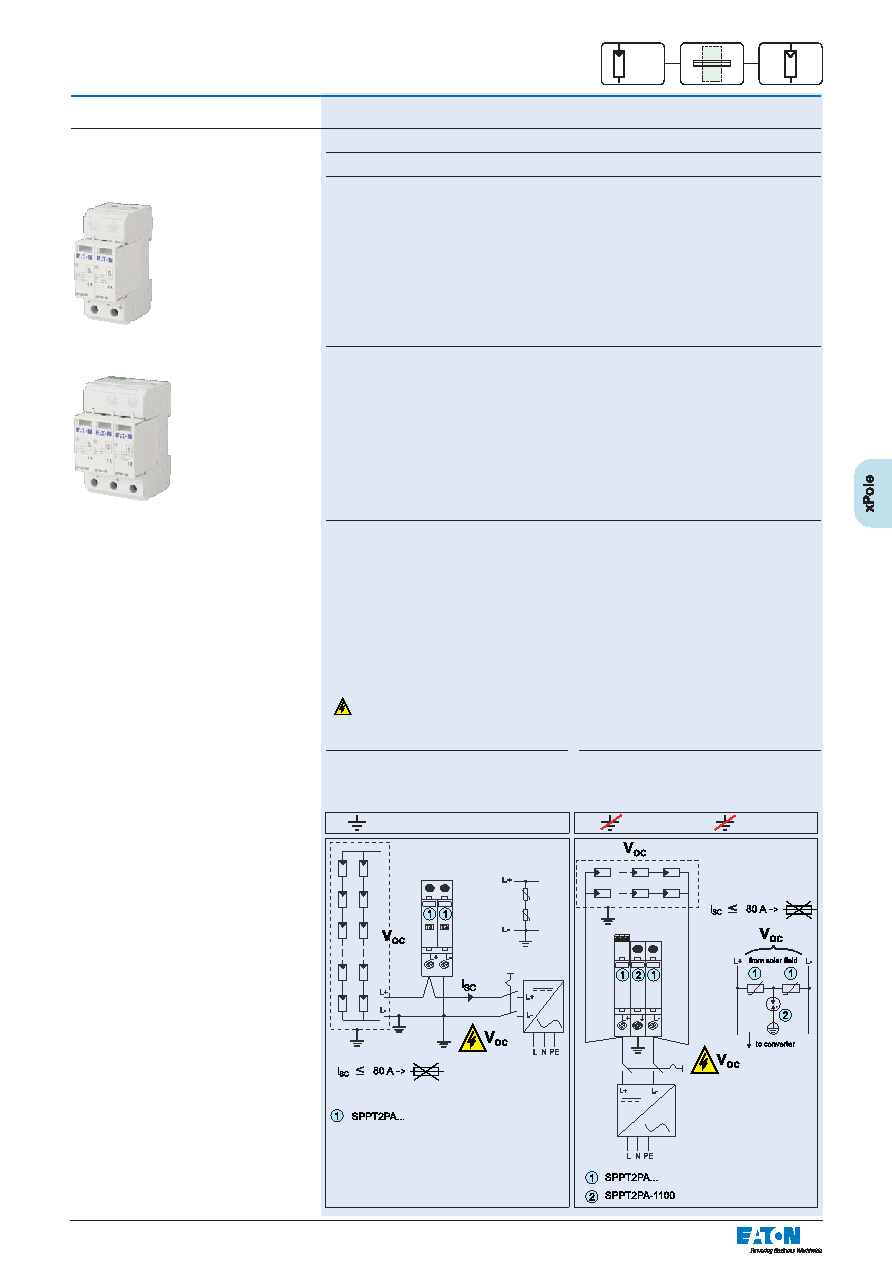

Photovoltaic - Surge Protection

SPD-type T2 (Class C)

Max. Cont. Op. Volt. U

C In (

Type Designation

Article No.

Units per package

600 V DC

1000 V DC

with auxiliary switch

1000 V DC

SPPT2PA-600-2PE

132663

1 / 60

SPPT2PA-1000-2PE

132664

1 / 60

SPPT2PA-1000-2PE-AX

132666

1 / 60

For unearthed systems

600 V DC

1000 V DC

with auxiliary switch

1000 V DC

SPPT2PA-600-2+1PE

132661

1 / 40

SPPT2PA-1000-2+1PE

132662

1 / 40

SPPT2PA-1000-2+1PE-AX 132665

1 / 40

Plug-in Surge Arrester SPPT2PA for Photovoltaic application

For earthed systems

SG11309

SG11009

600 V DC

1000 V DC

1100 V DC

SPPT2PA-600

132667

SPPT2PA-1000

132668

SPPT2PA-1100

132669

Inserts for replacement

Earthed system

Unearthed system

SPPT2PA-600-2PE

SPPT2PA-1000-2PE(-AX)

SPPT2PA-600-2+1PE

SPPT2PA-1000-2+1PE(-AX)

L-

L+

OC ≤ Uc:

Open circuit voltage of PV-Generator shall be equal or less than maximum

continuous operating voltage of Surge Protective Device (SPD) to prevent its

damage.

OC . . . . . .Open circuit voltage of PV-Generator.

C . . . . . . .Maximum continuous operating voltage of SPD.

Attention: Even at switched off DC-Disconnector system stays under high voltage!

Before mounting ensure de-energizing and check zero-potential.
