January 2006

DocRev1

1/21

21

VIPer12ADIP - E

VIPer12AS - E

Low Power OFF-Line SMPS Primary Switcher

Features

■

Fixed 60kHZ Switching Frequency

■

9V to 38V Wide Range VDD Voltage

■

Current Mode Control

■

Auxiliary Undervoltage Lockout with Hysteresis

■

High Voltage Start-up Current Source

■

Overtemperature, Overcurrent and

Overvoltage Protection with Auto-Restart

■

Typical power capability

– European (195 - 265 Vac) 8W for SO-8,

13W for DIP-8

– European (85 - 265 Vac) 5W for SO-8,

8W for DIP-8

Description

The VIPer12A combines a dedicated current

mode PWM controller with a high voltage Power

MOSFET on the same silicon chip.

Typical applications cover off line power supplies

for battery charger adapters, standby power

supplies for TV or monitors, auxiliary supplies for

motor control, etc.

The internal control circuit offers the following

benefits:

– Large input voltage range on the VDD pin

accommodates changes in auxiliary supply

voltage. This feature is well adapted to

battery charger adapter configurations.

– Automatic burst mode in low load condition.

– Overvoltage protection in HICCUP mode.

DIP-8

SO-8

www.st.com

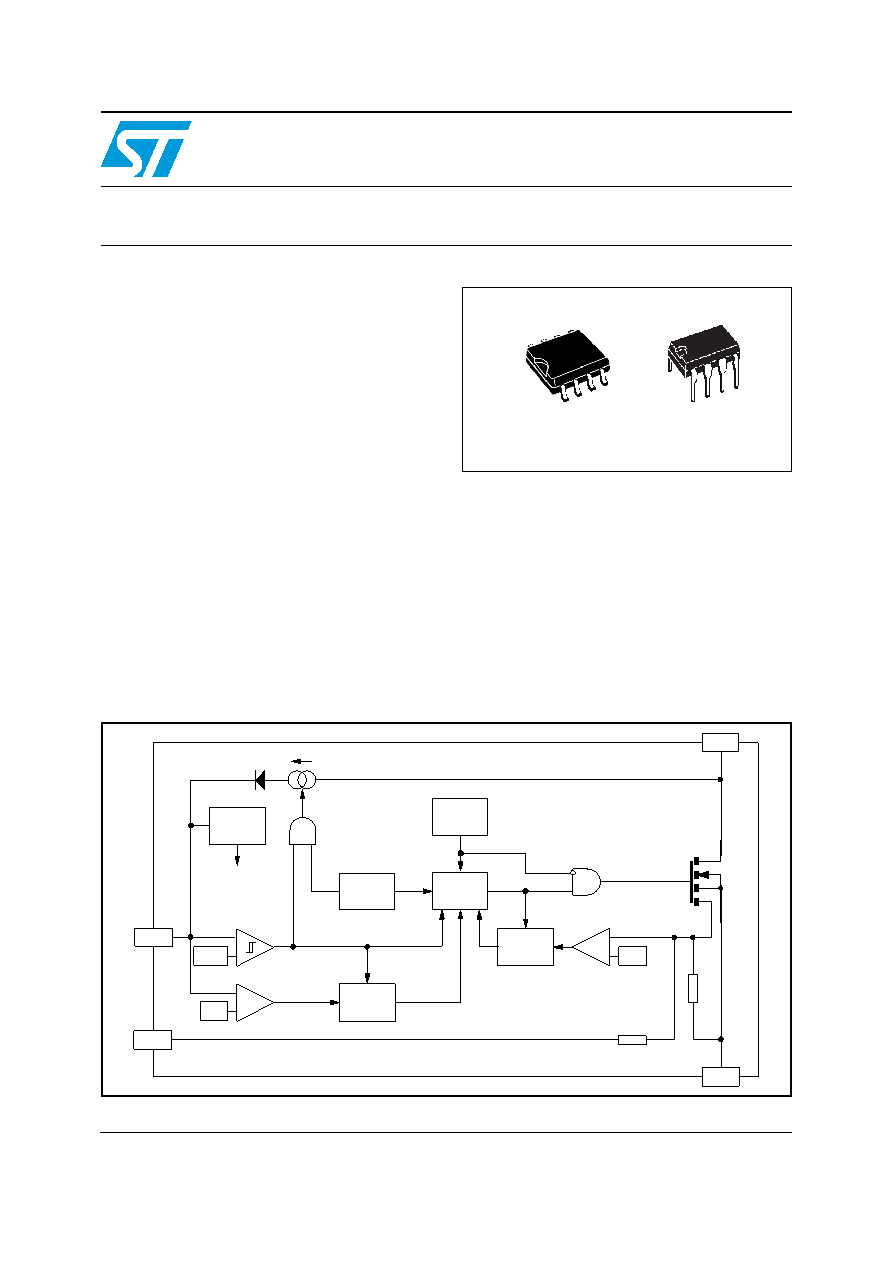

Block diagram

ON/OFF

0.23 V

DRAIN

SOURCE

VDD

PWM

LATCH

60kHz

OSCILLATOR

BLANKING

+

_

8/14.5V

_

+

FF

S

R1

R4

Q

R3

FB

REGULATOR

INTERNAL

SUPPLY

OVERVOLTAGE

LATCH

OVERTEMP.

DETECTOR

1 k

Ω

42V

_

+

R2

FF

S

R

Q

230

Ω
