ADL5385
Rev. 0 | Page 11 of 24
0
2
4
6
8
10
12
14
16
18
20
–156.7 –156.6 –156.5 –156.4 –156.3 –156.2 –156.1 –156.0 –155.9
dBm/Hz AT 20MHz OFFSET FROM LO FREQUENCY
0
180
30
330
60
90
270
300
120
240
150
210
S11 OF LOIP
S22 OF OUTPUT
2200MHz
4400MHz
50MHz
100MHz

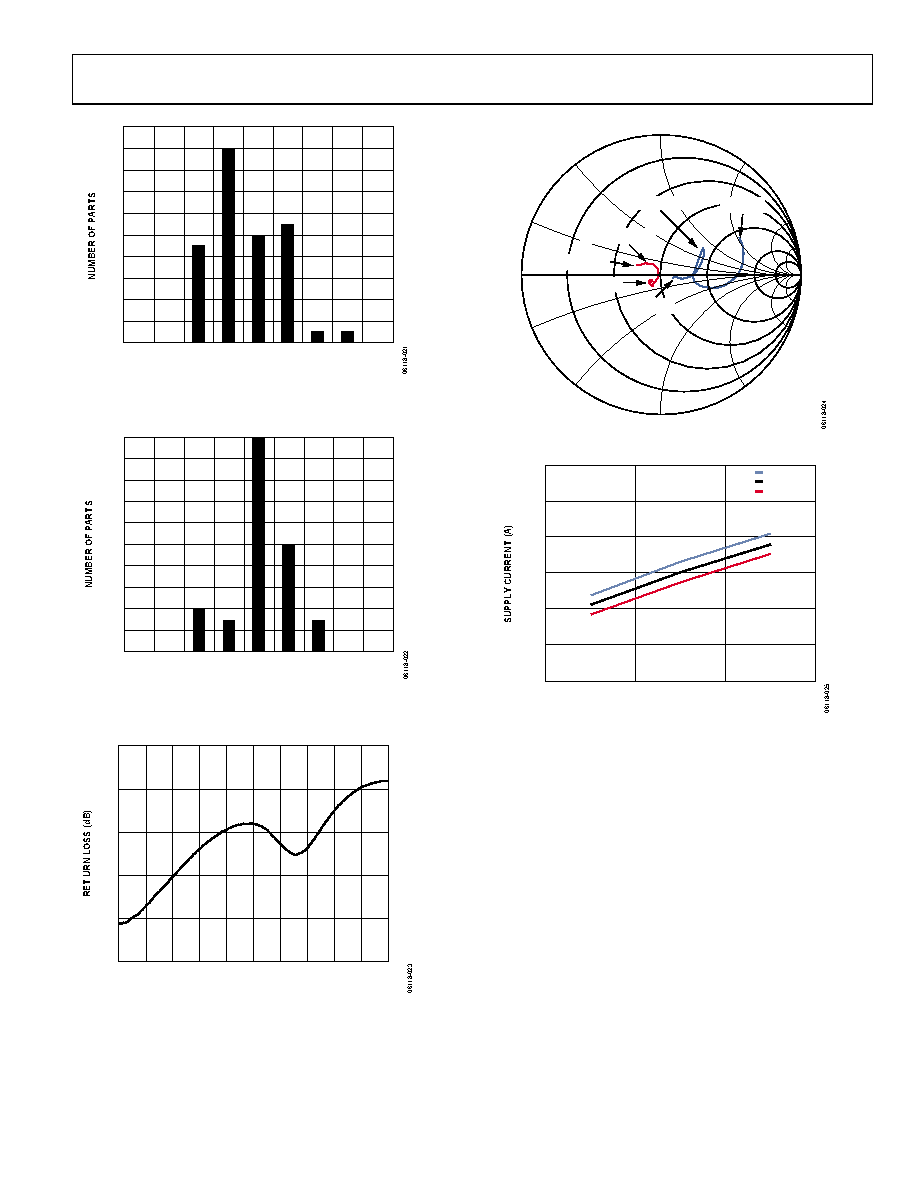

Figure 21. 20 MHz Offset Noise Floor Distribution,
Output Frequency = 350 MHz, POUT = −5 dBm, QPSK Carrier,
Symbol Rate = 3.84 MSPS
20
0
–155.2
dBm/Hz AT 12MHz OFFSET FROM LO FREQUENCY
18
16
14
12
10
8
6
4
2
–155.1 –155.0 –154.9 –154.8 –154.7 –154.6 –154.5 –154.4
Figure 24. Output Impedance and LO Input Impedance vs. Frequency
0.150
0.175
0.200
0.225
0.250
0.275
0.300
–40
25
85
TEMPERATURE (°C)
VS = 5.5V
VS = 5V
VS = 4.75V
Figure 22. 12 MHz Offset Noise Floor Distribution,
Output Frequency = 860 MHz, POUT = −5 dBm, 64 QAM Carrier,
Symbol Rate = 5 MSPS
Figure 25. Power Supply Current vs. Temperature and Supply Voltage
–25
–20
–15
–10
–5
0
100
530
960 1390 1820 2250 2680 3110 3540 3970 4400
LOIP FREQUENCY (MHz)
Figure 23. LO Port Input Return Loss vs. Frequency
