ADM1175
Rev. 0 | Page 22 of 24

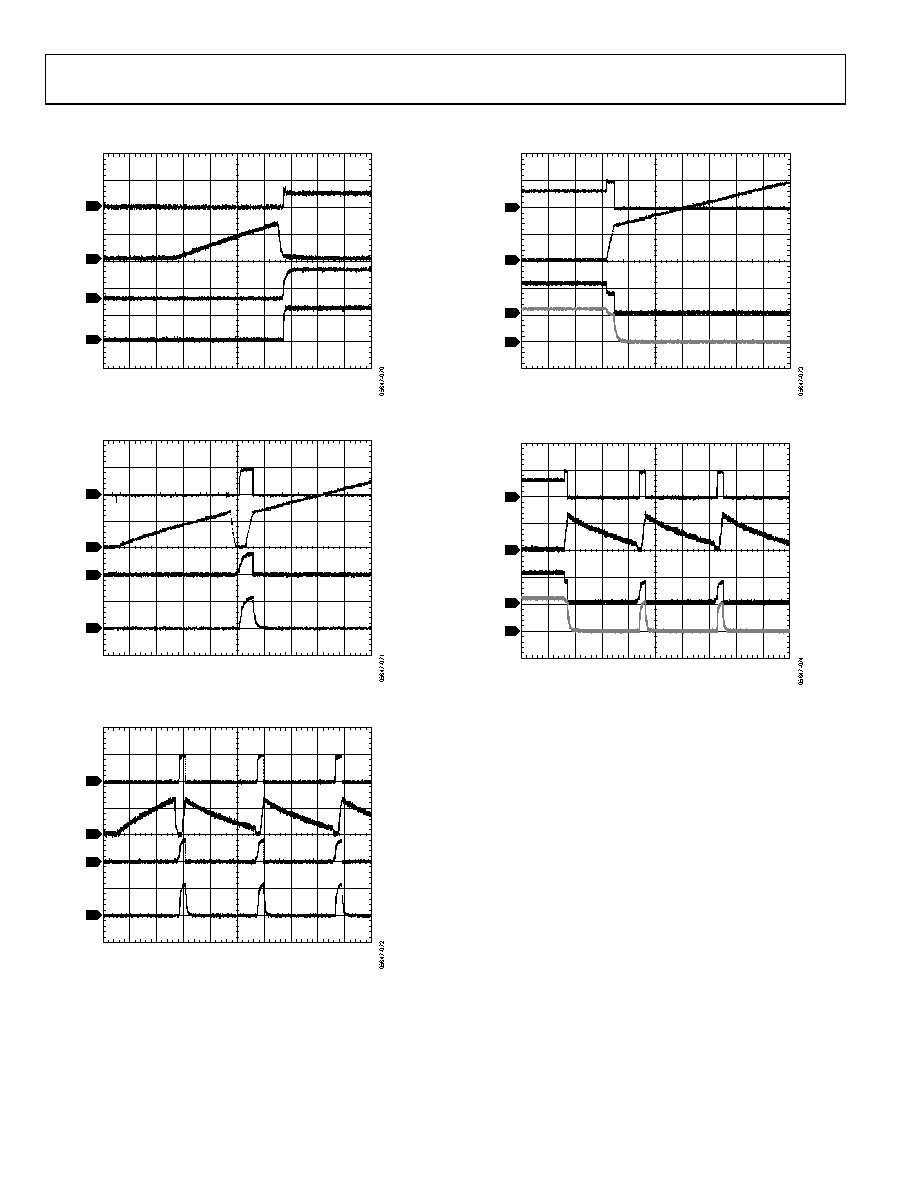

APPLICATIONS WAVEFORMS
CH1 1.5A
CH2 1.00V
CH3 20.0V
CH4 10.0V
M40.0ms
4
3
2
1
Figure 41. Inrush Current Control into 220 μF Load
(CH1 = ILOAD, CH2 = VTIMER, CH3 = VGATE, CH4 = VOUT)
CH1 1.5A
CH2 1.00V
CH3 20.0V
CH4 10.0V
M10.0ms
4
3
2
1
Figure 42. Overcurrent Condition at Startup (ADM1175-1 Model)
(CH1 = ILOAD, CH2 = VTIMER, CH3 = VGATE, CH4 = VOUT)
CH1 1.5A
CH2 1.00V
CH3 20.0V
CH4 10.0V
M20.0ms
4
3
2
1
Figure 43. Overcurrent Condition at Startup (ADM1175-2 Model)
(CH1 = ILOAD, CH2 = VTIMER, CH3 = VGATE, CH4 = VOUT)
CH1 1.5A
CH2 1.00V
CH3 20.0V
CH4 10.0V
M10.0ms
4
3
2
1
Figure 44. Overcurrent Condition During Operation (ADM1175-1 Model)
(CH1 = ILOAD, CH2 = VTIMER, CH3 = VGATE, CH4 = VOUT)
CH1 1.5A
CH2 1.00V
CH3 20.0V
CH4 10.0V
M20.0ms
4
3
2
1
Figure 45. Overcurrent Condition During Operation (ADM1175-2 Model)
(CH1 = ILOAD, CH2 = VTIMER, CH3 = VGATE, CH4 = VOUT)
