P9222-R/RN Datasheet
© 2019-2022 Renesas Electronics Corporation
35
May 5, 2022

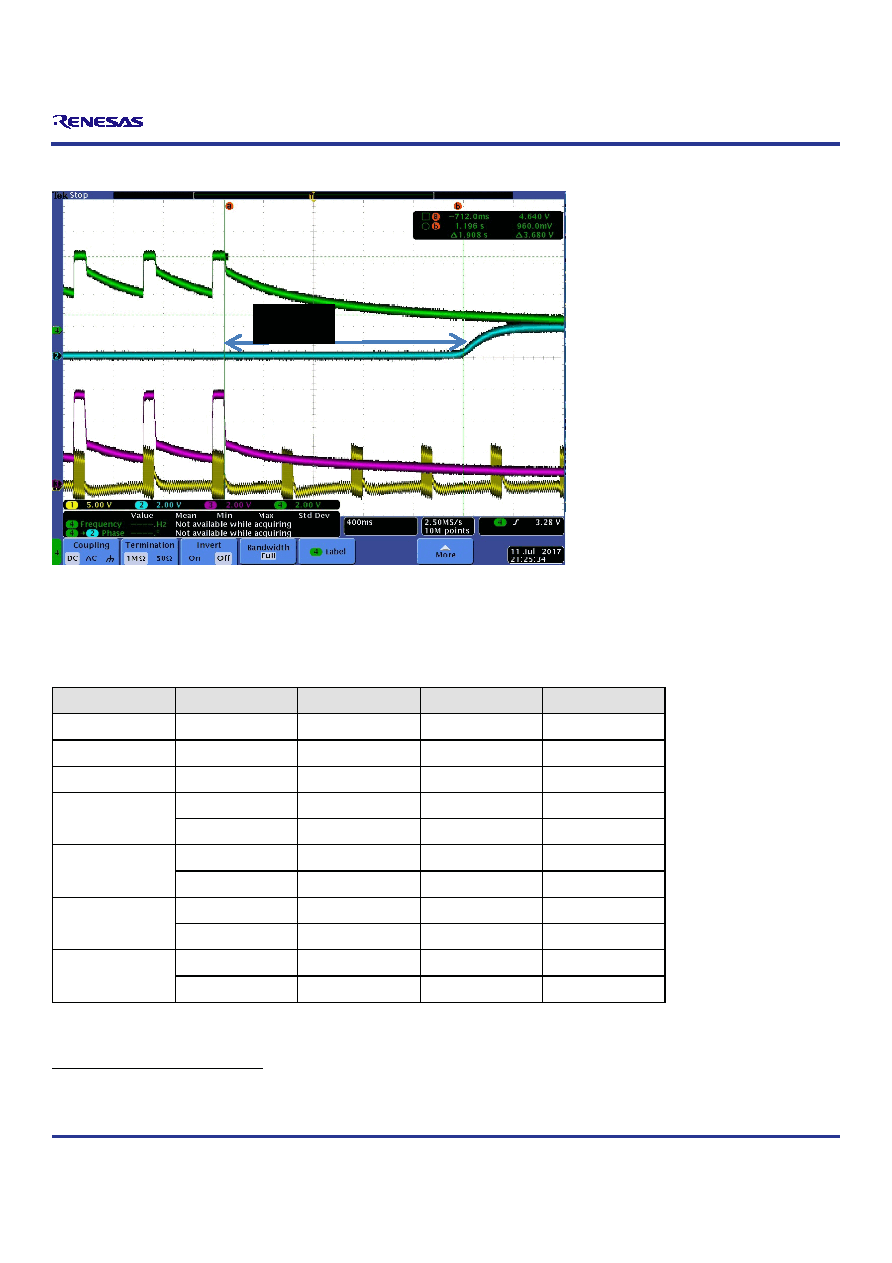

Figure 31. P9222-R/RN Ping Detect Waveforms1
Note: When measuring the PDET_RC node, the probe impedance will alter the timing of PDETB, and this should be accounted for.
Table 9 can be used to select the RC values for the PDET_RC pin.
Table 9.
Recommended RC Values for PDET_RC Components Based on Capacitance and Ping Interval
Ping Interval (s)
R (MΩ)
C (µF)
TPDETB_MIN (s)
TPDETB_MAX (s)
0.55
0.422
2.2
0.66
1.36
0.75
0.59
2.2
0.92
1.89
0.9
0.698
2.2
1.098
2.26
1.2
0.887
2.2
1.38
2.85
0.412
4.7
1.37
2.83
1.4
1.1
2.2
1.71
3.54
0.511
4.7
1.70
3.51
2.2
1.69
2.2
2.64
5.45
0.787
4.7
2.62
5.41
6.5
5.11
2.2
7.95
16.43
2.32
4.7
7.80
16.12
1
R12 = 1MΩ, C15 = 2.2µF, Ch1 = Tx SW Node, Ch2 = PDETB, Ch3 = VRECT, Ch4 = PDET_RC, 25°C, 550ms Ping Interval
T
PDETB
