ANT-W63WS4-ccc
VSWR

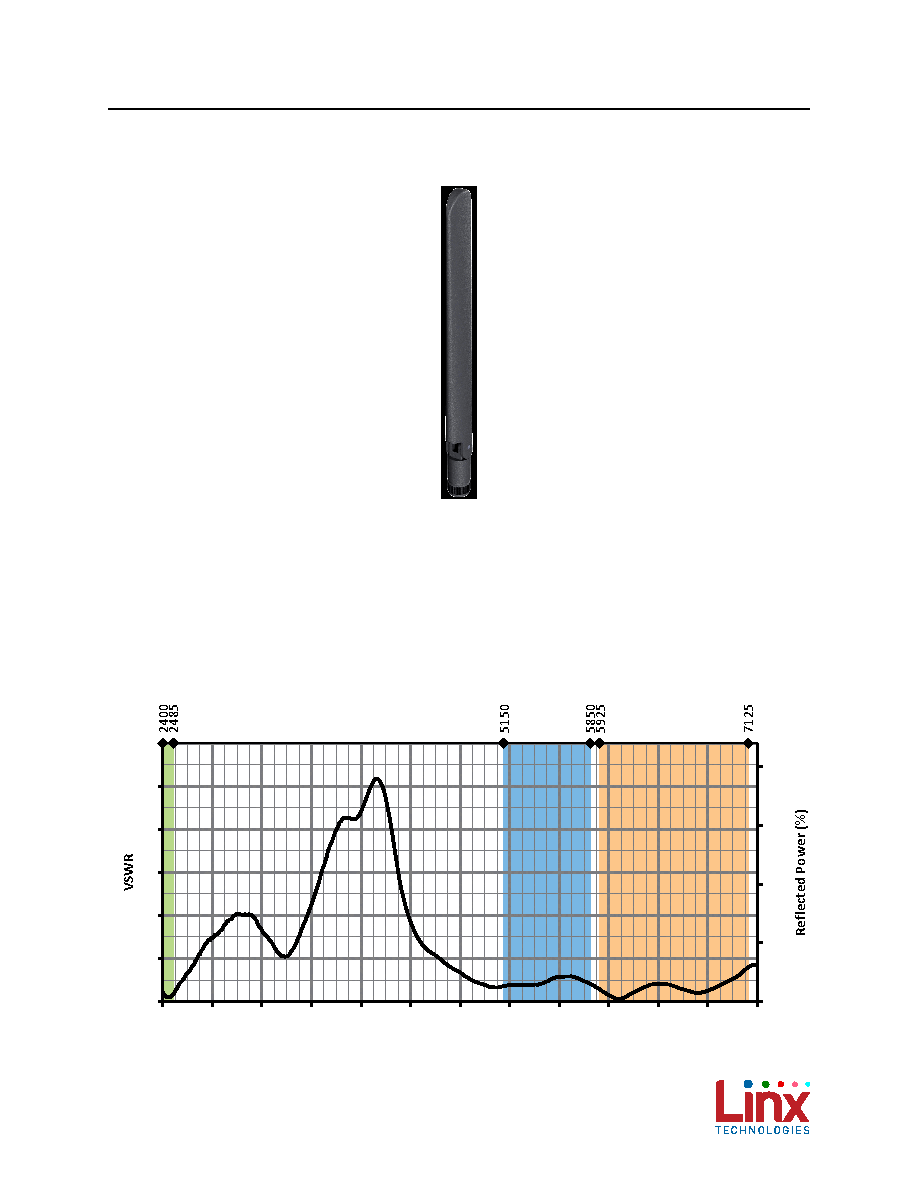

Figure 4 provides the voltage standing wave ratio (VSWR) across the antenna bandwidth. VSWR describes
the power reflected from the antenna back to the radio. A lower VSWR value indicates better antenna
performance at a given frequency. Reflected power is also shown on the right-side vertical axis as a gauge of
the percentage of transmitter power reflected back from the antenna.
0
10
20
30
40
1
2
3
4
5
6
7
2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 6400 6800 7200
Frequency (MHz)
Figure 4. ANT-W63WS4-ccc VSWR, Straight
Straight, No Ground Plane
The charts on the following pages represent data taken with the antenna oriented straight, as shown in
Figure 3.
Figure 3. ANT-W63WS4-ccc Straight, No Ground Plane (Straight)
