5.1.2

Page Write

The page write mode allows up to 16 byte to be written in a single write cycle, provided that they are all located in

the same page in the memory: that is, the most significant memory address bits, A10/A4, are the same. If more

bytes are sent than fit up to the end of the page, a "roll-over" occurs, i.e. the bytes exceeding the page end are

written on the same page, from location 0.

The bus master sends from 1 to 16 byte of data, each of which is acknowledged by the device if write control

(WC) is low. If write control (WC) is high, the contents of the addressed memory location are not modified, and

each data byte is followed by a NoAck, as shown in Figure 7. After each transferred byte, the internal page

address counter is incremented.

The transfer is terminated by the bus master generating a Stop condition.

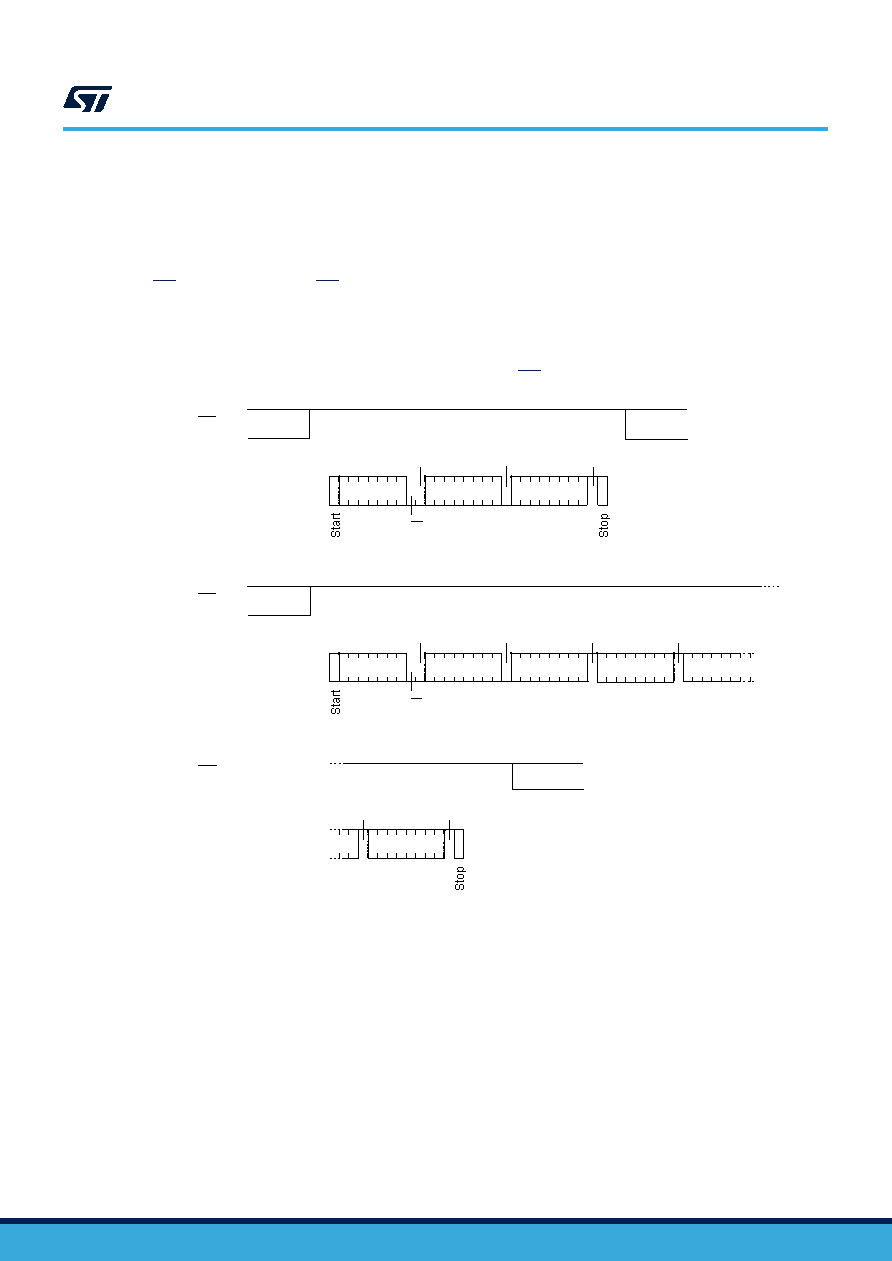

Figure 7. Write mode sequences with WC = 1 (data write inhibited)

Byte Write

Dev select

Byte address

Data in

WC

Page Write

Dev select

Byte address

Data in 1

Data in 2

WC

Data in 3

Page Write(cont'd)

WC (cont'd)

Data in N

ACK

ACK

NO ACK

R/W

ACK

ACK

NO ACK

NO ACK

R/W

NO ACK

NO ACK

M24C16-W M24C16-R M24C16-F

Write operations

DS9194 - Rev 11

page 10/40
