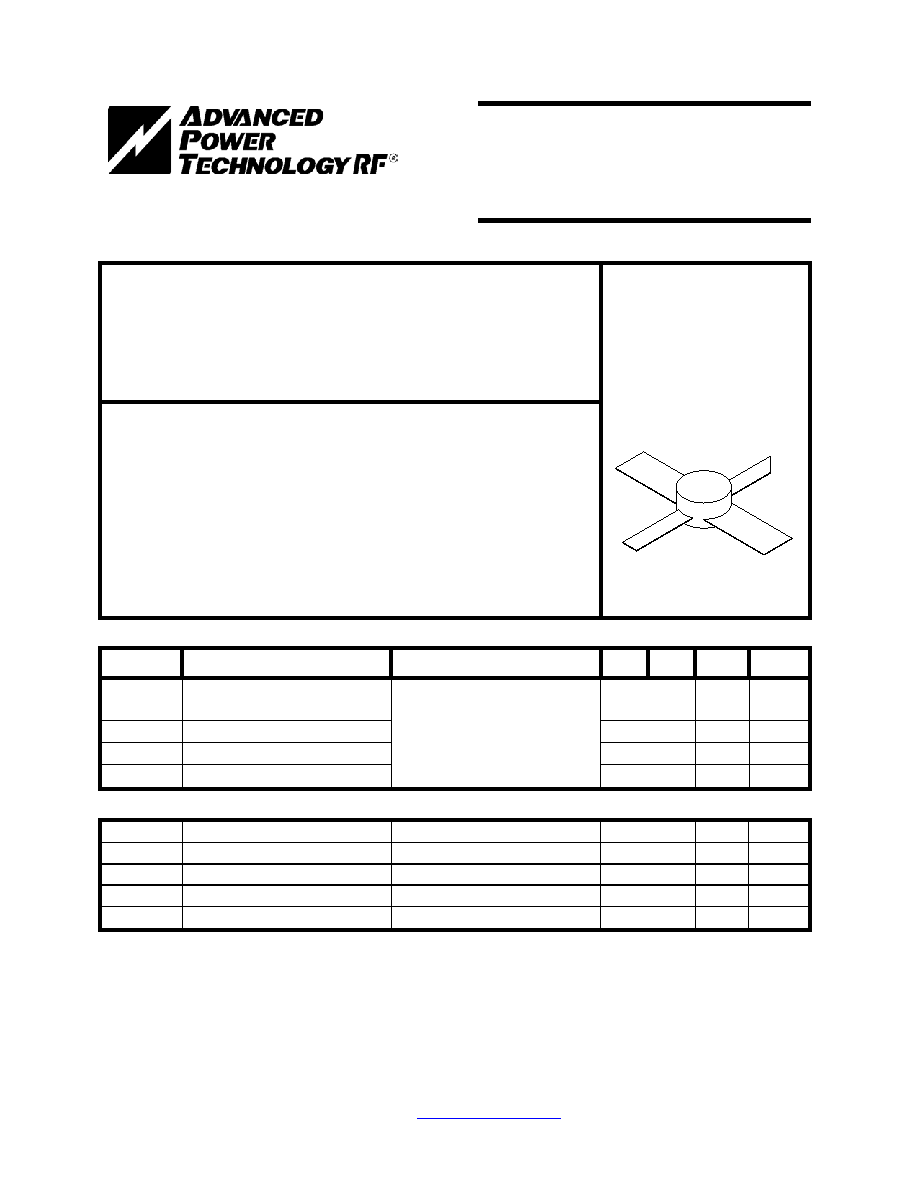

1004MP

4 Watts, 35 Volts

Pulsed Avionics, 960 to 1215 MHz

GENERAL DESCRIPTION

The 1004MP is a COMMON BASE transistor capable of providing 4 Watts of

Pulsed, RF output power in the band 960 to 1215 MHz. This transistor is

specifically designed for pulsed Avionics amplifier applications. It utilizes gold

metalization and low thermal resistance packaging to provide high reliability

and supreme ruggedness.

CASE OUTLINE

55FW-1

ABSOLUTE MAXIMUM RATINGS

Maximum Power Dissipation

Device Dissipation @ 25

°C

7 W

Maximum Voltage and Current

50 V

3.5 V

300 mA

Maximum Temperatures

Storage Temperature

-40 to +150

°C

Operating Junction Temperature

+200

°C

ELECTRICAL CHARACTERISTICS @ 25

°C

SYMBOL

CHARACTERISTICS

TEST CONDITIONS

MIN

TYP

MAX UNITS

Power Output

F = 1090 MHz

4.0

4.5

W

Power Input

0.5

W

Power Gain

PW = 10

µs, DF = 1%

7.0

9.0

dB

Collector Efficiency

40

45

%

VSWR

Load Mismatch Tolerance

30:1

FUNCTIONAL CHARACTERISTICS @ 25

°C

Emitter to Base Breakdown

Ie = 1 mA

3.5

V

Collector to Emitter Breakdown Ic = 10 mA

50

V

DC – Current Gain

Vce = 5V, Ic = 100 mA

20

Capacitance

Vcb = 28V, f =1 MHz

3.3

5.0

pF

Thermal Resistance

25

°C/W
