Volume 7—Motor Controls, Logic and Connectivity

CA08100008E—August 2011

www.eaton.com

V7-T40-33

40.3

Control Relays and Timers

EASY Intelligent Relays

EASY/MFD Communication Modules

Contents

Description

Page

EASY500/700/800 Intelligent Relays . . . . . . . . . . .

V7-T40-20

EASY/MFD Expansion Modules . . . . . . . . . . . . . .

V7-T40-25

MFD Intelligent Relays . . . . . . . . . . . . . . . . . . . . .

V7-T40-28

EASY/MFD Communication Modules

Technical Data and Specifications . . . . . . . . . .

V7-T40-34

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T40-35

EASY/MFD Power Supplies, Accessories

and Software . . . . . . . . . . . . . . . . . . . . . . . . . . . .

V7-T40-36

EASY/MFD

Communication Modules

Product Description

Five modules are available for

easily connecting to world-

standard networks. The

communication modules can

be used with the EASY700/

800 and MFD intelligent

relays.

Available communication

modules support:

●

PROFIBUS-DP

●

AS-I (Actuator Sensor

Interface) networks

●

CANopen

●

DeviceNet

●

Ethernet (also compatible

with EASY500)

All modules act as a gateway

and operate exclusively as a

slave station on the network.

Product Selection

EASY Communication Interface Modules

Description

Catalog

Number

PROFIBUS-DP slave interface module

EASY204-DP

AS-Interface slave with 4 in and 4 out interface module

EASY205-ASI

CANopen interface module

EASY221-CO

DeviceNet slave interface module

EASY222-DN

Ethernet Gateway

EASY209-SE

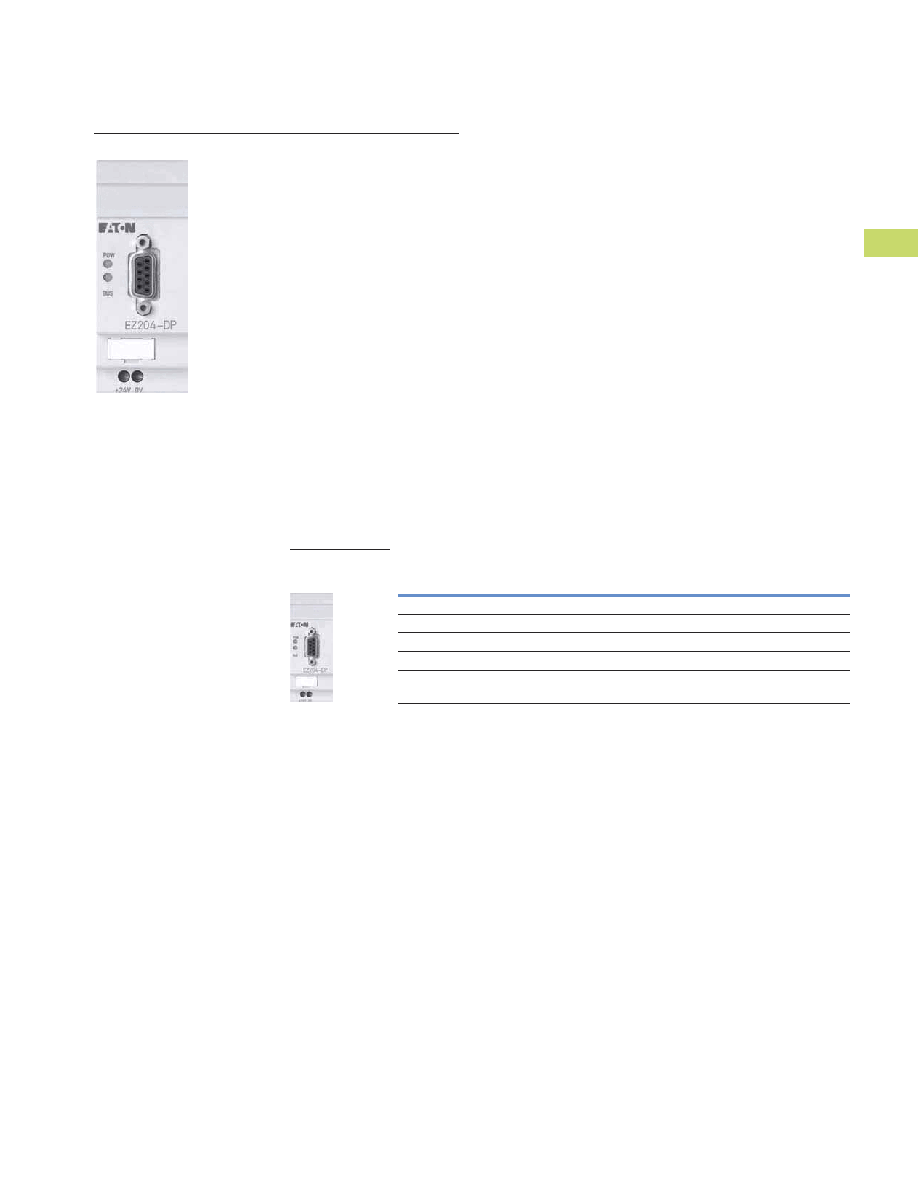

EASY204-DP

Communication

Module
