30.

Package Description (SSOP-28)

10.50

9.90

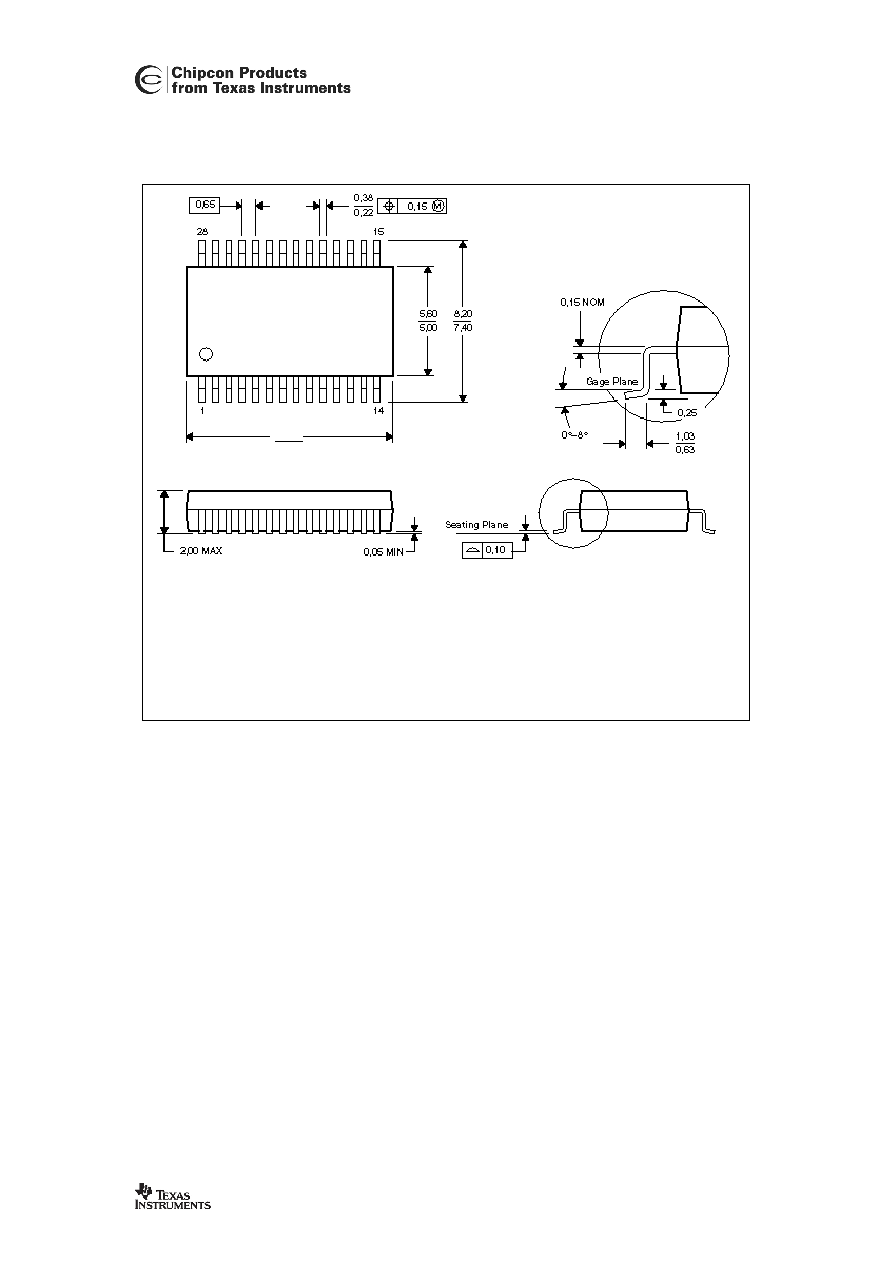

Figure 13: Package Dimensions Drawing

NOTES:

A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.

C. Body dimensions do not include mold flash or protrusion not to exceed 0.1mm.

D. Falls within JEDEC MO-150.

31.

Soldering Information

The recommended reflow soldering profiles for SnPb eutectic and Pb-free soldering for Small

Body SMD packages are according to IPC/JEDEC J-STD-020C.
