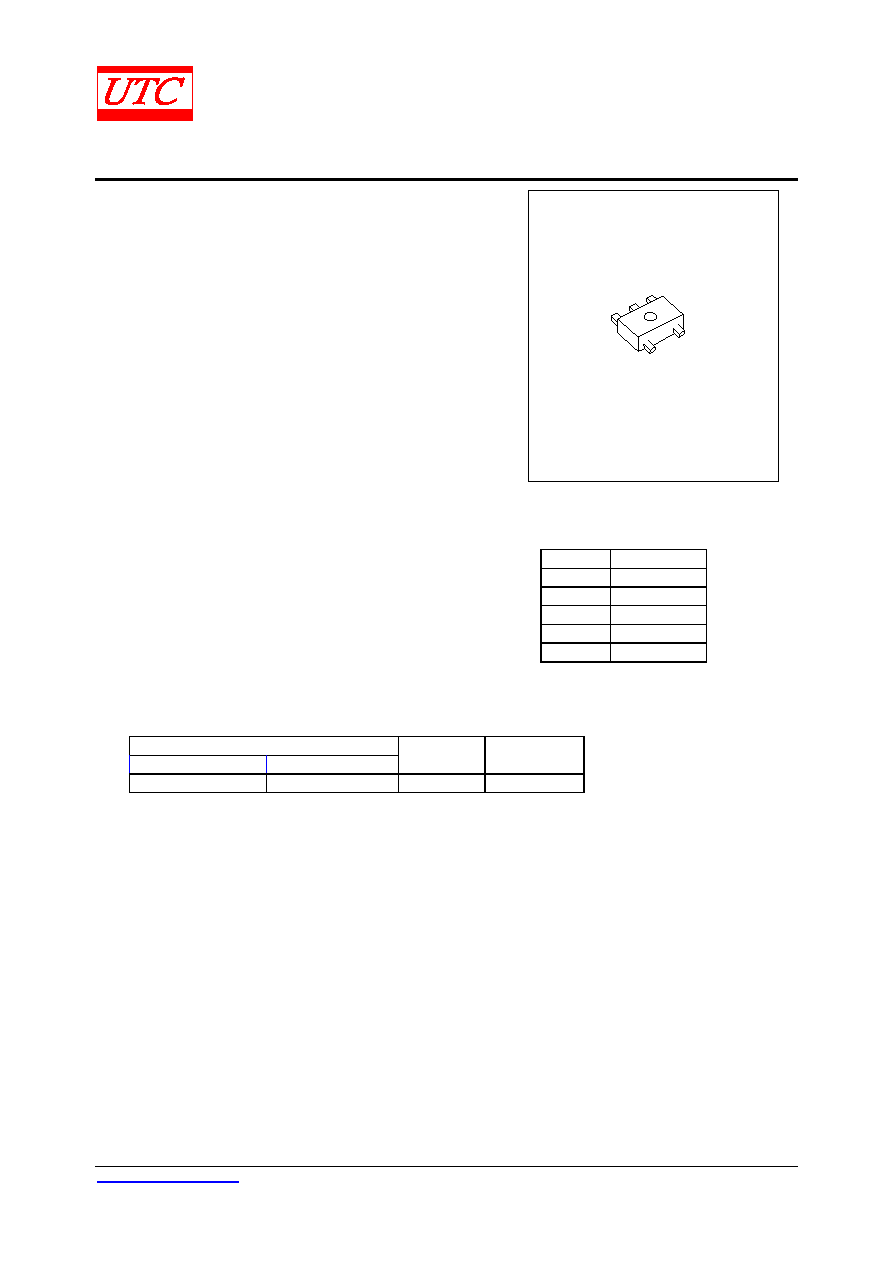

UNISONIC TECHNOLOGIES CO.,LTD

M2107

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1

Copyright © 2005 Unisonic Technologies Co.,LTD

QW-R105-017,C

SINGLE OPERATIONAL

AMPLIFIER

DESCRIPTION

The UTC M2107 is the single operational amplifier of ultra

miniature surface mount package. It has features of low operating

supply voltage and low saturation output voltage. It is suitable for

small electronic equipments and hybrid circuits.

FEATURES

*Operating Voltage

(V

*Low Output Saturation:

(4Vp-p at single 5V supply)

*V

*Suitable Pin Arrangement for Application

*Bipolar Technology

1

SOT-25

2

3

4

5

*Pb-free plating product number: M2107L

PIN CONFIGURATION

PIN NO.

PIN NAME

1

+INPUT

2

V

-

3

-INPUT

4

OUTPUT

5

V

+

ORDERING INFORMATION

Order Number

Normal

Lead Free

Package

Packing

M2107-AF5-R

M2107L-AF5-R

SOT-25

Tape Reel
