PLL702-05

Low EMI Peripheral Clock Generator for Notebook

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991

www.phaselink.com

Rev 08/12/04 Page 6

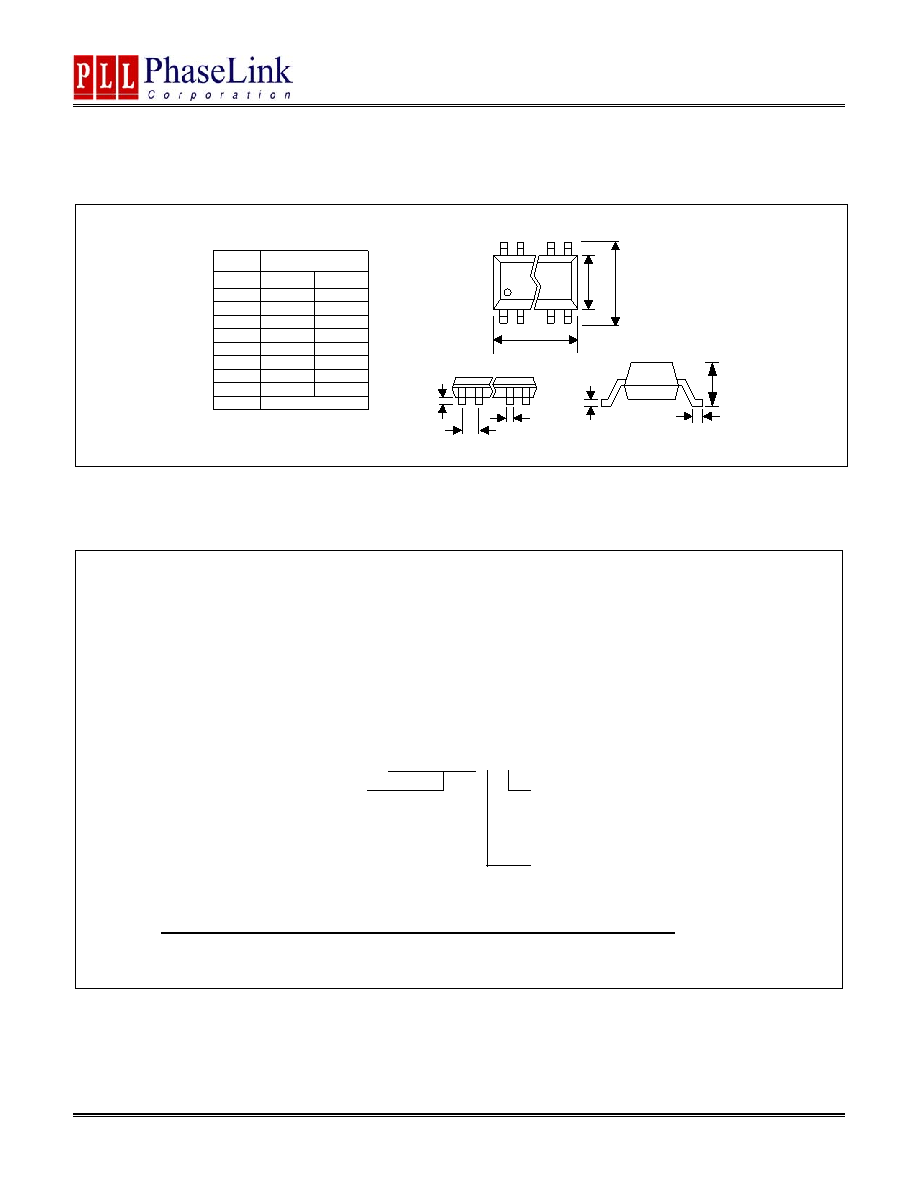

PACKAGE INFORMATION

ORDERING INFORMATION

PhaseLink Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information

furnished by Phaselink is believed to be accurate and reliable. However, PhaseLink makes no guarantee or warranty concerning the accuracy of said

information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.

LIFE SUPPORT POLICY: PhaseLink’s products are not authorized for use as critical components in life support devices or systems without the

express written approval of the President of PhaseLink Corporation.

For part ordering, please contact our Sales Department:

47745 Fremont Blvd., Fremont, CA 94538, USA

Tel: (510) 492-0990 Fax: (510) 492-0991

PART NUMBER

The order number for this device is a combination of the following:

Device number, Package type and Operating temperature range

PLL702-05 S C

Order Number

Marking

Package Option

PLL702-05SC-R

P702-05SC

SOIC -Tape and Reel

PLL702-05SC

P702-05SC

SOIC –Tube

PART NUMBER

TEMPERATURE

C=COMMERCIAL

PACKAGE TYPE

S = SOIC

C

L

A

8 PIN Narrow SOIC ( mm )

SOIC

Symbol

Min.

Max.

A

1.55

1.73

A1

0.10

0.25

B

0.33

0.48

C

0.19

0.25

D

4.80

4.98

E

3.81

3.99

H

5.08

6.20

L

0.41

0.89

e

1.27 BSC

E

H

D

A

1

e

B
