Data Sheet
ADCA3270
Rev. 0 | Page 9 of 14

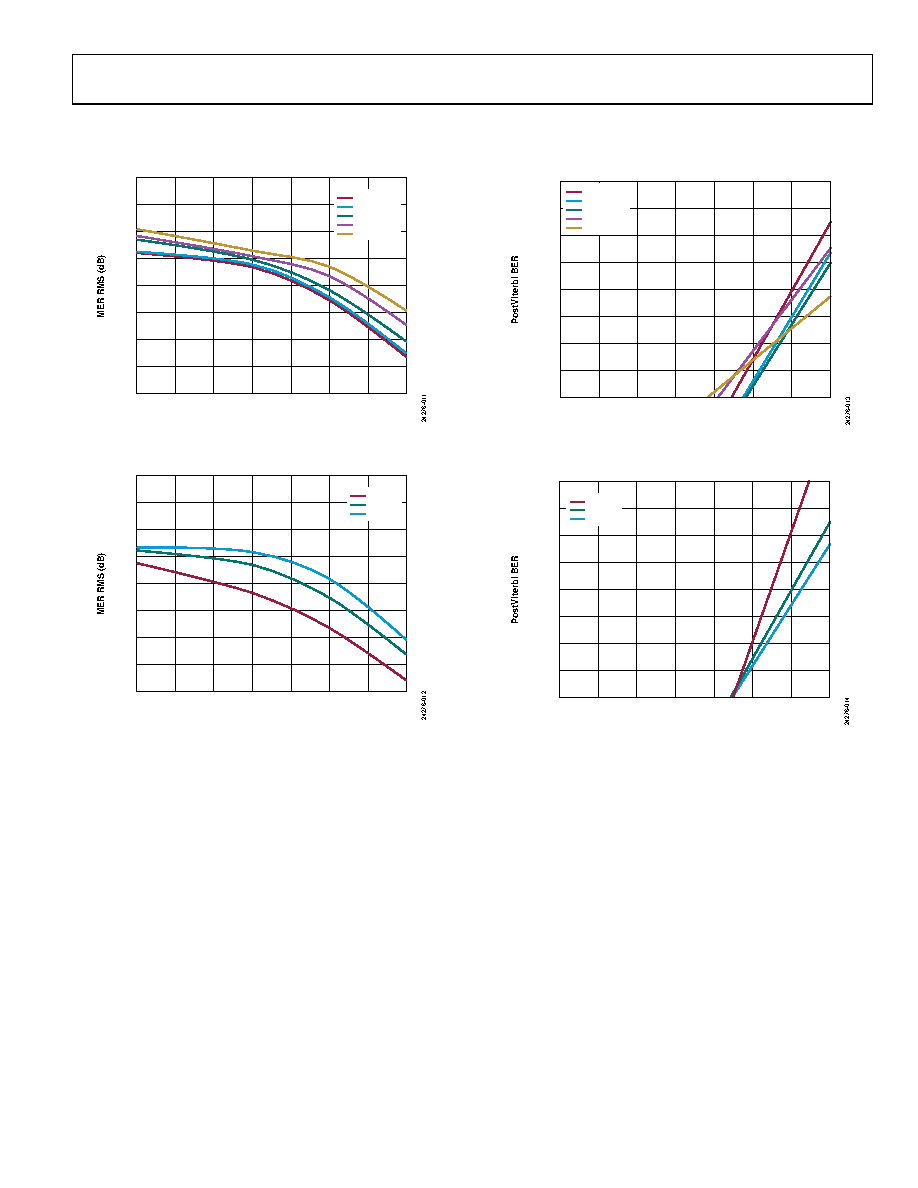

18 dB TILT PERFORMANCE
18 dB extrapolated tilt and 190 digital channels (QAM256, ITU-T J.83, Annex B).
70
30
40
35
45
55
65
50
60
69
70
71
73
72
75
74
76
TOTAL COMPOSITE OUTPUT POWER (dBmV)
57MHz
111MHz
501MHz
999MHz
1215MHz
Figure 11. MER RMS vs. Total Composite Output Power at
Various Frequencies, 35°C, 18 dB Tilt
70
30
40
35
45
55
65
50
60
69
70
71
73
72
75
74
76
TOTAL COMPOSITE OUTPUT POWER (dBmV)
+85°C
+35°C
–30°C
Figure 12. MER RMS vs. Total Composite Output Power at
Various Temperatures, 57 MHz, 18 dB Tilt
69
70
71
73
72
75
74
76
TOTAL COMPOSITE OUTPUT POWER (dBmV)
57MHz
111MHz
501MHz
999MHz
1215MHz
1×10–2
1×10–10
1×10–8
1×10–9
1×10–7
1×10–5
1×10–3
1×10–6
1×10–4
Figure 13. PostViterbi BER vs. Total Composite Output Power at
Various Frequencies, 35°C, 18 dB Tilt
69
70
71
73
72
75
74
76
TOTAL COMPOSITE OUTPUT POWER (dBmV)
+85°C
+35°C
–30°C
1×10–2
1×10–10
1×10–8
1×10–9
1×10–7
1×10–5
1×10–3
1×10–6
1×10–4
Figure 14. PostViterbi BER vs. Total Composite Output Power at
Various Temperatures, 57 MHz, 18 dB Tilt
