Data Sheet
HMC815B
Rev. 0 | Page 21 of 30
0
–40
–35
–30
–25
–20
–15
–10
–5
0
0.5
1.0
1.5
2.0
3.0
2.5
3.5
4.0
IF FREQUENCY (GHz)
+85°C, IF1
+25°C, IF1
–40°C, IF1
+85°C, IF2
+25°C, IF2
–40°C, IF2

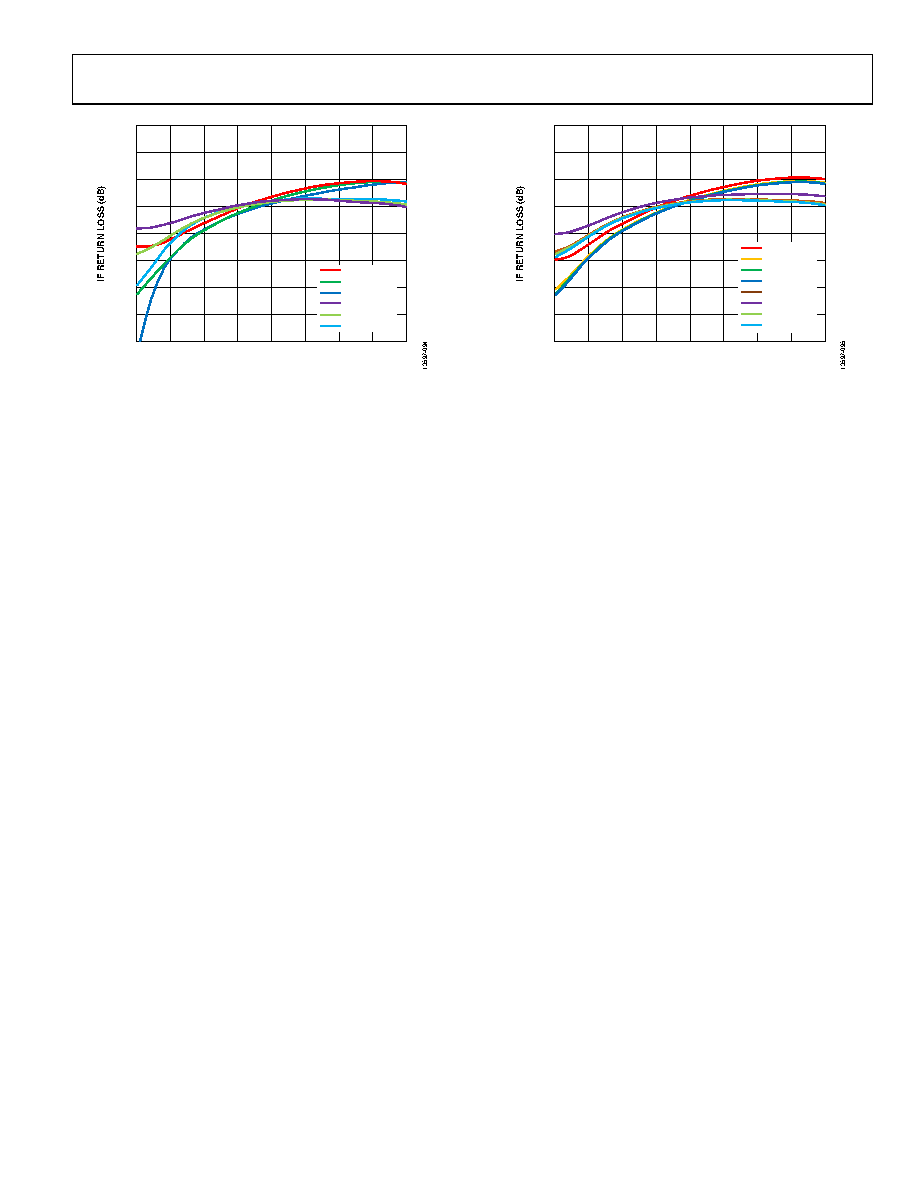

Figure 94. IF Return Loss vs. IF Frequency over Temperature,
LO Frequency = 12 GHz, LO Power = 4 dBm
0
–40
–35
–30
–25
–20
–15
–10
–5
0
0.5
1.0
1.5
2.0
3.0
2.5
3.5
4.0
IF FREQUENCY (GHz)
0dBm, IF1
2dBm, IF1
4dBm, IF1
6dBm, IF1
0dBm, IF2
2dBm, IF2
4dBm, IF2
6dBm, IF2
Figure 95. IF Return Loss vs. IF Frequency over LO Powers,
LO Frequency = 12 GHz, TA = 25°C
