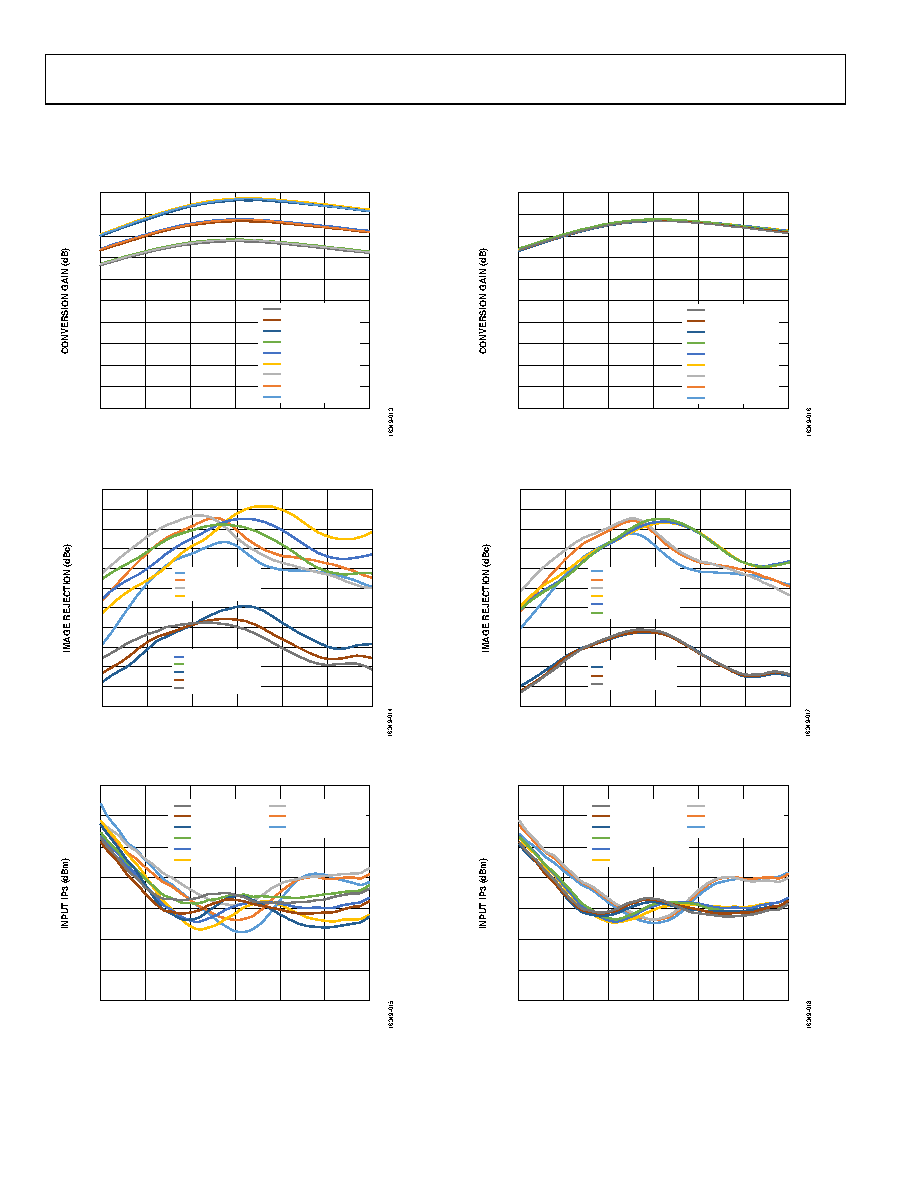

8 / 19 page  ADMV1012 Data Sheet Rev. A | Page 8 of 19 LOWER SIDEBAND (HIGH-SIDE LO) Data taken at VDRF = 3 V, VDLO = 3 V, IDRF = 68 mA, LO = −4 dBm ≤ LO ≤ +4 dBm, −40°C ≤ TA ≤ +85°C, with Mini-Circuits QCN-45+, power splitter as lower sideband (high-side LO), unless otherwise noted. 20 0 2 4 6 8 10 12 14 16 18 17.0 17.5 18.0 18.5 19.0 19.5 20.0 RF FREQUENCY (GHz) +85°C, 3.5GHz IF +25°C, 3.5GHz IF –40°C, 3.5GHz IF +85°C, 3.0GHz IF +25°C, 3.0GHz IF –40°C, 3.0GHz IF +85°C, 2.5GHz IF +25°C, 2.5GHz IF –40°C, 2.5GHz IF Figure 13. Conversion Gain vs. RF Frequency at Various Temperatures and Various IF Frequencies 23.5 24.0 24.5 25.0 25.5 26.0 26.5 27.0 27.5 28.0 28.5 29.0 17.0 17.5 18.0 18.5 19.0 19.5 20.0 RF FREQUENCY (GHz) –40°C, 2.5GHz IF +25°C, 2.5GHz IF +85°C, 2.5GHz IF –40°C, 3.0GHz IF +25°C, 3.0GHz IF +85°C, 3.0GHz IF –40°C, 3.5GHz IF +25°C, 3.5GHz IF +85°C, 3.5GHz IF Figure 14. Image Rejection vs. RF Frequency at Various Temperatures and Various IF Frequencies 7 0 1 2 3 4 5 6 17.0 17.5 18.0 18.5 19.0 19.5 20.0 RF FREQUENCY (GHz) +85°C, 3.5GHz IF +25°C, 3.5GHz IF –40°C, 3.5GHz IF +85°C, 3.0GHz IF +25°C, 3.0GHz IF –40°C, 3.0GHz IF +85°C, 2.5GHz IF +25°C, 2.5GHz IF –40°C, 2.5GHz IF Figure 15. Input IP3 vs. RF Frequency at Various Temperatures and Various IF Frequencies 20 0 2 4 6 8 10 12 14 16 18 17.0 17.5 18.0 18.5 19.0 19.5 20.0 RF FREQUENCY (GHz) +4dB, 3.5GHz IF 0dB, 3.5GHz IF –4dB, 3.5GHz IF +4dB, 3.0GHz IF 0dB, 3.0GHz IF –4dB, 3.0GHz IF +4dB, 2.5GHz IF 0dB, 2.5GHz IF –4dB, 2.5GHz IF Figure 16. Conversion Gain vs. RF Frequency at Various LO Powers and Various IF Frequencies 23.5 24.0 24.5 25.0 25.5 26.0 26.5 27.0 27.5 28.0 28.5 29.0 17.0 17.5 18.0 18.5 19.0 19.5 20.0 RF FREQUENCY (GHz) –4dB, 2.5GHz IF 0dB, 2.5GHz IF +4dB, 2.5GHz IF –4dB, 3.0GHz IF 0dB, 3.0GHz IF +4dB, 3.0GHz IF –4dB, 3.5GHz IF 0dB, 3.5GHz IF +4dB, 3.5GHz IF Figure 17. Image Rejection vs. RF Frequency at Various LO Powers and Various IF Frequencies 7 0 1 2 3 4 5 6 17.0 17.5 18.0 18.5 19.0 19.5 20.0 RF FREQUENCY (GHz) +4dB, 3.5GHz IF 0dB, 3.5GHz IF –4dB, 3.5GHz IF +4dB, 3.0GHz IF 0dB, 3.0GHz IF –4dB, 3.0GHz IF +4dB, 2.5GHz IF 0dB, 2.5GHz IF –4dB, 2.5GHz IF Figure 18. Input IP3 vs. RF Frequency at Various LO Powers and Various IF Frequencies |
|
|
